Kärcher SG 4/4 User Manual

Use only three-wire extension cords that
have three-prong grounding-type plugs and
three-pole receptacle that accepts the ap-
pliance’s plug. Replace damaged or worn
cord immediately.

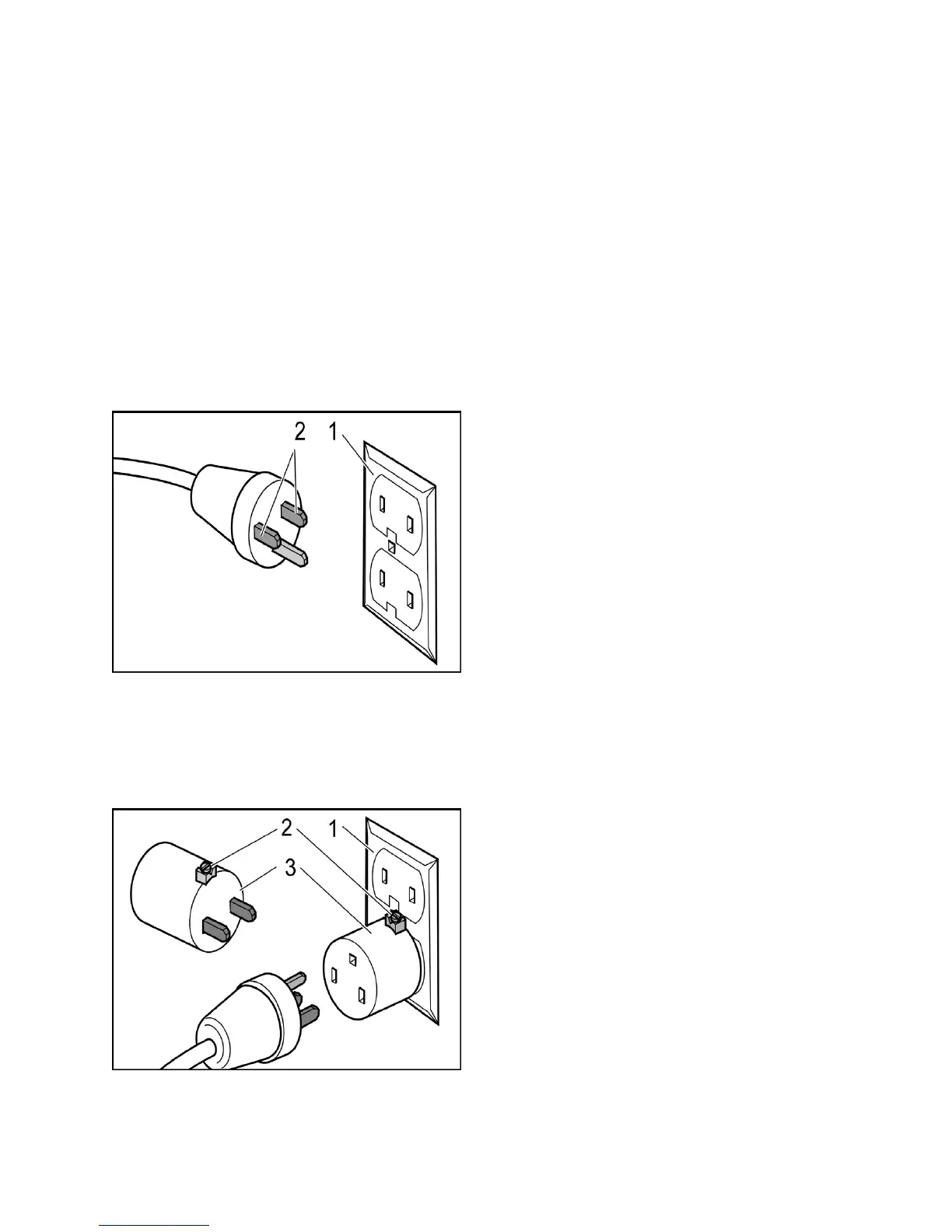

Figure A
1 Grounded outlet box
2 Current carrying prongs
Grounding prong is longest of the 3 prongs
Figure B
1 Grounded outlet box
2 Grounding means
3 Adapter
Note: In Canada, the use of a temporary
adapter is not permitted by the Canadian
Electrical Code.
In a double-insulated machine, two sys-
tems of insulation are provided instead of
grounding. No grounding means is provid-
ed on a double-insulated machine, nor
should a means for grounding be added to
the machine. Servicing a double-insulated
machine requires extreme care and knowl-
edge of the system, and should be done
only by qualified service personnel. Re-
placement parts for a double-insulated ma-
chine must be identical to the parts they
replace.
NEVER REMOVE GROUNDING PRONG
FROM POWER PLUG.
EXTENSION CORDS
DO NOT ATTEMPT TO REPAIR POWER
CORD.
Servicing of double-insulated machines
6 EN

Kärcher SG 4/4 Specifications

General

Type	Cylinder steam cleaner
Capacity	4 L
Cord length	7.5 m
Control type	Buttons, Rotary
Product color	Black, Grey, Yellow
Number of water tanks	2
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Steam pressure	4 bar
Adjustable steam	Yes
Steam adjustment type	Stepless
Number of accessories included	10 pc(s)

Weight and Dimensions

Depth	475 mm
Width	320 mm
Height	275 mm
Weight	8000 g
Package weight	11200 g
