English 9


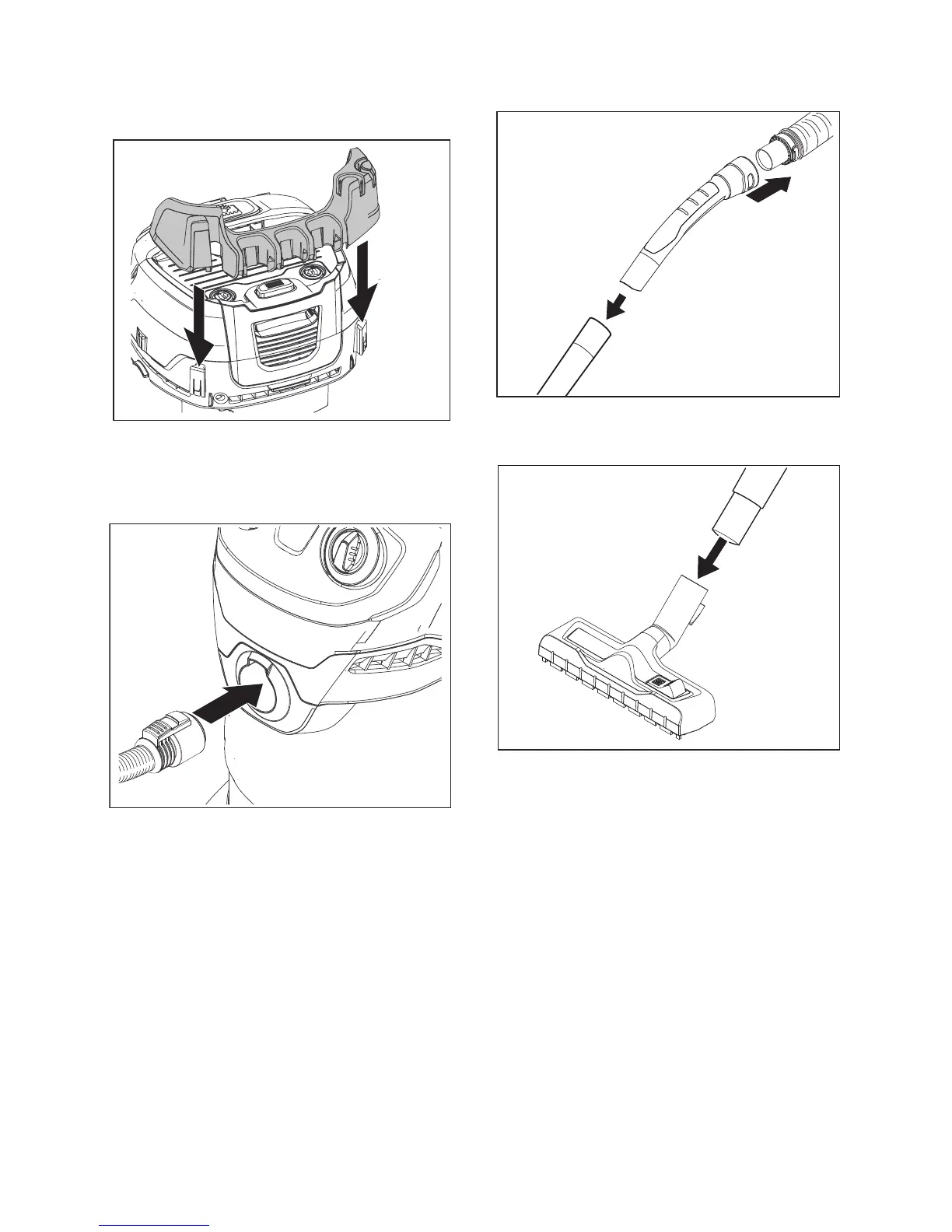

Clip the holder for the accessory
compartment onto the rear side of
the appliance.
 Push the suction hose into the con-
nection on the appliance, it snaps in
place.
 Connect the handle with the suction
hose until it snaps in place.
 Put both suction tubes together and
connect them with the handle.
 Connect the floor nozzle with the
suction tubes.
