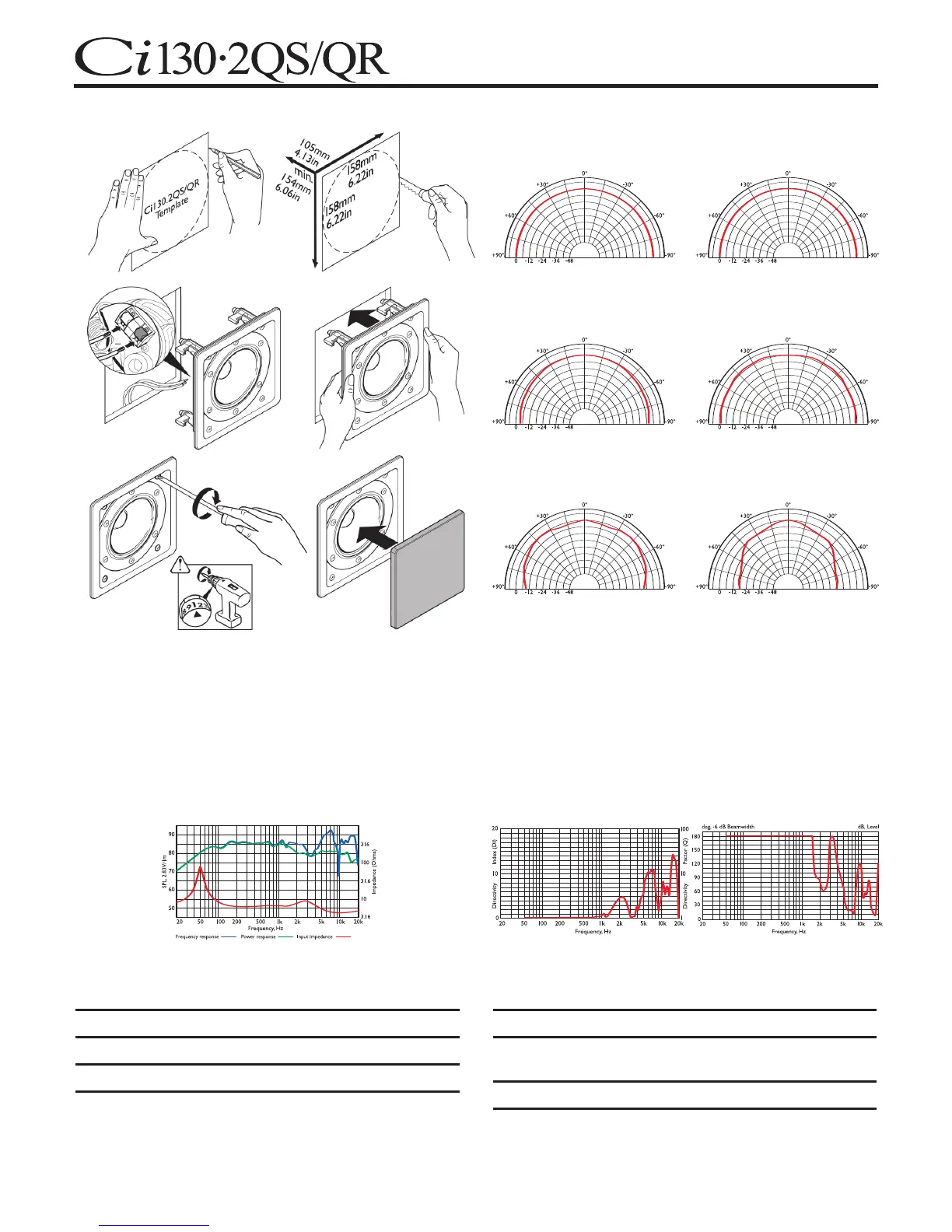

Installation
1
3
2
4
56
500Hz 1kHz
2kHz 4kHz
8kHz 16kHz
Polar graphs
Directivity Index / Beamwidth
Frequency / Power response, Input impedance
Specifications
Architectural specifications:
The Ci Series Ci130.2QS and Ci130.2QR
comprise a Uni-Q
®
coincident mounted
19mm aluminium dome tweeter with a
130mm white pol
yprop
ylene bass/mid unit.
Performance should meet or exceed the
f
ollo
wing criteria: frequency response 1
metr
e on-axis with s
w
ept sine
wav
e shall
be 50Hz to 40kHz QS, 100Hz to 40kHz
QR, sensitivity shall be at least 86dB for
2.83V@1m. The impedance and maximum
power shall be 50W at 8 ohms. The Ci
Series Ci130.2QS and Ci130.2QR is best
suited where high quality music and speech
r
einf
orcement applications require hi-fi
perf
ormance such as:
· Multi Room systems.
· Home Theatre systems.
· Lounges, Bars, Boutiques.
· Boardrooms & Offices.
·
Airports,
Convention Centres, Hotels.
Frequency range ± 3dB QS: 50Hz - 40kHz, QR: 100Hz - 40kHz
Sensitivity (2.83v @ 1m) 86dB
Rec. amplifier power 10 - 50W
Nominal Impedance
8
Ω (min.
3.2
Ω)
Crossover Frequency 2.8kHz
Enclosure material Steel with QR
T
erminals spring terminals up to Ø2.5mm (0.1”)
*
Dimensions (H x W x D) 180 x 180 x 105 mm, 7.1 x 7.1 x 4.1 in QS
Ø
180 x 105 mm,
7.1 x 4.1 in QR
**
Net weight 1.3kg (2.9lbs) QS, 1.7kg (3.7lbs) QR
* Block terminals up to
Ø2.5mm
with Ci130.2QR enclosur
e
.
** Depth 154mm (6in) with Ci130.2QR enclosure.
