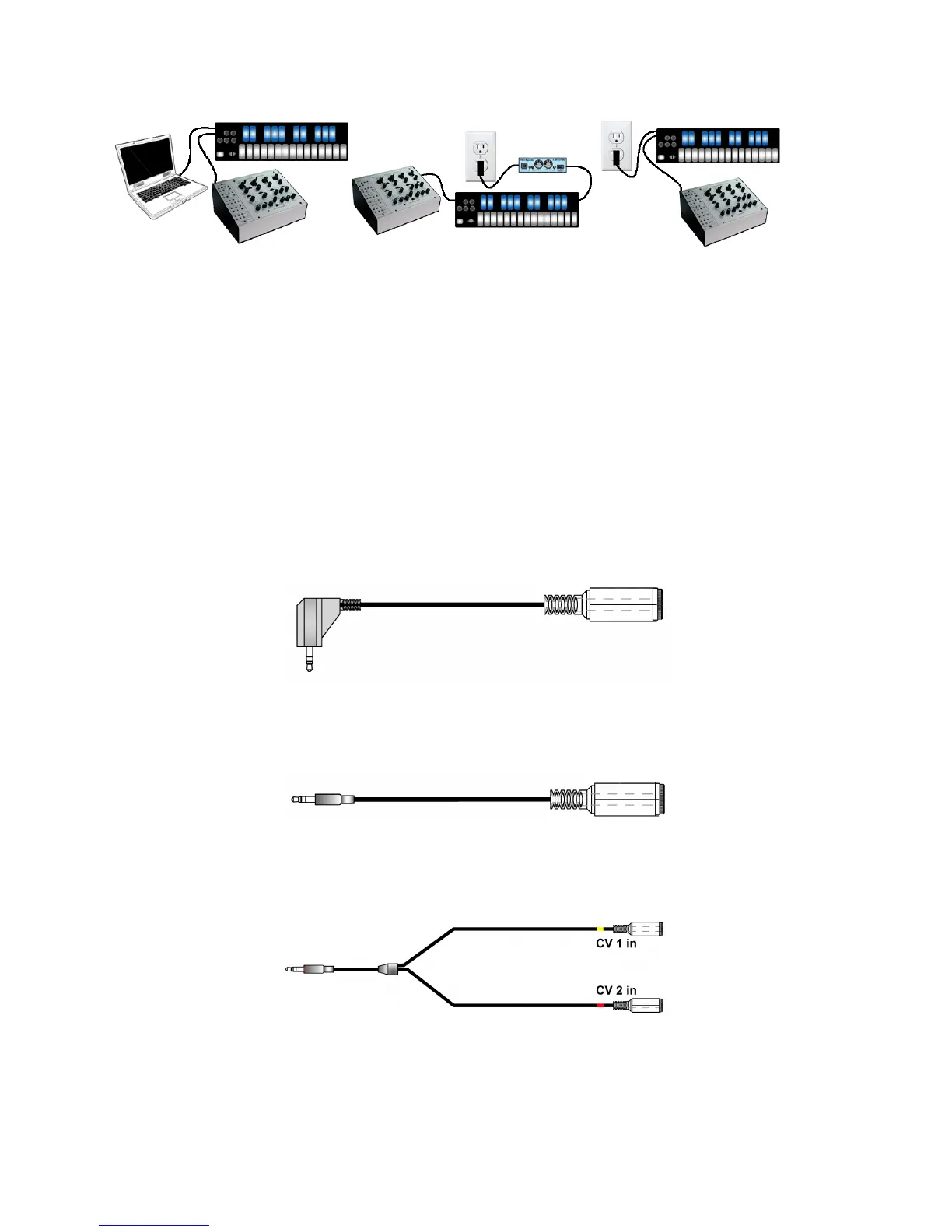

QuNexus can communicate with synthesizers or other CV devices using Control Voltages.
Connect QuNexus to CV devices using a cable that is compatible with your CV device’s CV
ports. Using adapters if needed, make sure one end can plug into one of the stereo 1/8in CV out
ports on the left side of QuNexus. QuNexus’ CV input port (on the right side) requires one end to
be a 3.5 mm TRRS (like the ones used for Apple iPhone headsets).
CV Cable Kit
The QuNexus CV Cable Kit is an optional add on, which makes it easy to gather the cables and
adapters needed to convert MIDI to CV and vice versa using QuNexus.
One of each of the following cables/adapters is included in the CV Cable Kit:
CV INPUT:
right angle 3.5mm (1/8in) stereo plug to 1/4in stereo jack
This is helpful when connecting an Expression Pedal to the CV 1-2 in port
3.5mm (1/8in) stereo plug to 1/4in mono jack
This is helpful when connecting an Expression Pedal to the CV 1-2 in port
3.5mm (1/8in) TRRS plug to dual 3.5mm (1/8in) stereo jacks
This is helpful for splitting the CV input port into CV1 (expression pedal) and CV2
Tip: make sure to use stereo 1/8in cables to plug into the jacks
5
