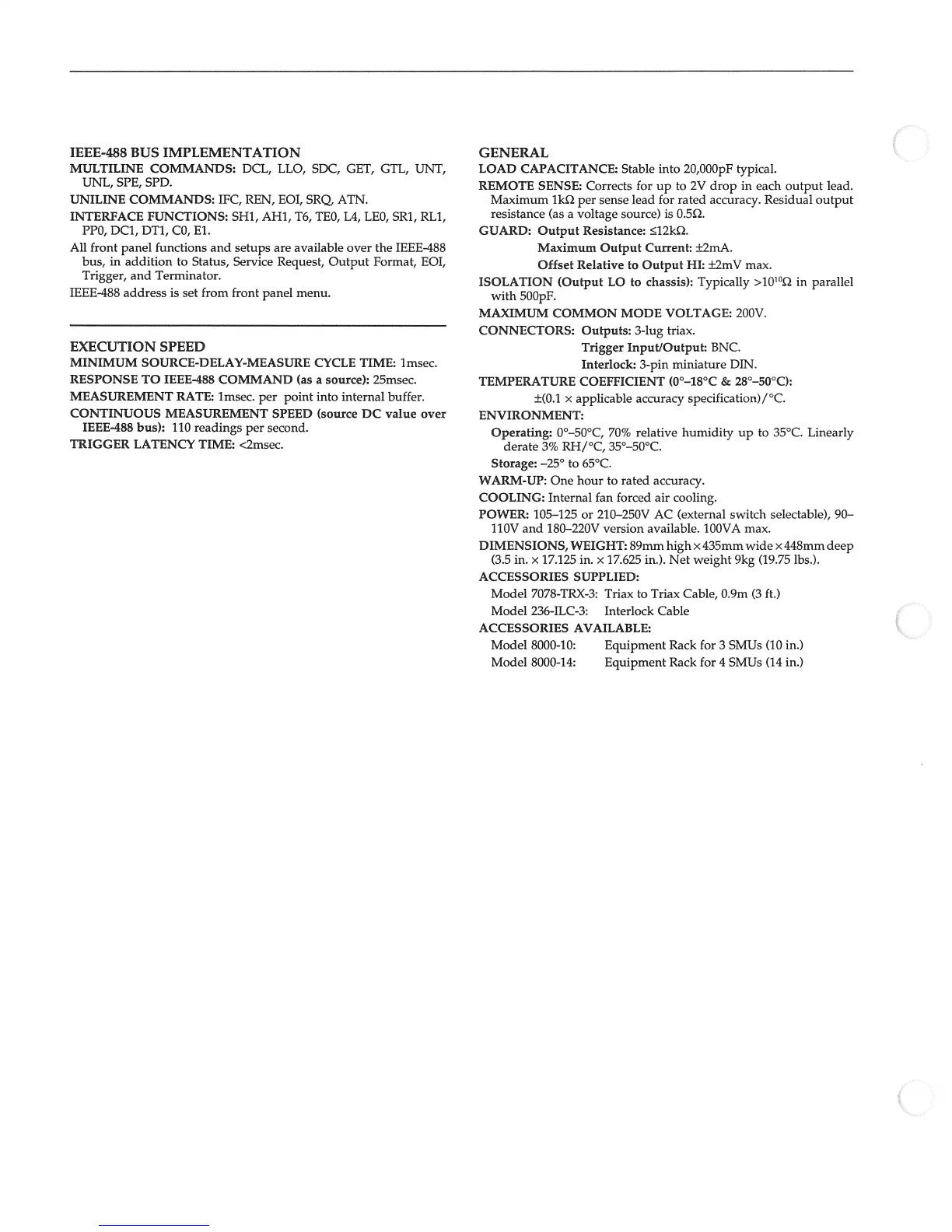

IEEE-488
BUS
IMPLEMENTATION
MULTILINE
COMMANDS:
DCL,
LLO, SDC,
GET,
GTL,
UNT,
UNL,
SPE,
SPD.
UNILINE
COMMANDS:
IFC,
REN,
EOI,
SRQ
ATN.
INTERFACE
FUNCTIONS:
SHI,
AHI,
T6,
TEO,
L4,
LEO,
SRI, RLI,
PPo,
DC1,
DT1,
CO,
El.
All
front
panel
functions
and
setups
are
available
over
the
IEE&488
bus,
in
addition
to
Status,
Service
Request,
Output
Format,
EOI,
Trigger,
and
Terminator.
1EEE488
address
is
set
from
front
panel
menu.
EXECUTION
SPEED
MINIMUM
SOURCE-DELAY-MEASURE
CYCLE
TIME:
lmsec.
RESPONSE
TO
IEEE-488
COMMAND
(as
a
source):
25msec.
MEASUREMENT
RATE:
lmsec.
per
point
into
internal
buffer.
CONTINUOUS
MEASUREMENT
SPEED
(source
DC
value
over
IEEE.488
bus):
110
readings
per
second.
TRIGGER
LATENCY
TIME:
<2msec.
GENERAL
LOAD
CAPACITANCE:
Stable
into
20,000pF
typical.
REMOTE
SENSE:
Corrects
for
up
to
2V
drop
in
each
output
lead.
Maximum
lk2
per
sense
lead
for
rated
accuracy.
Residual
output
resistance
(as
a
voltage
source)
is
O.52.
GUARD:
Output
Resistance:
l2k2.
Maximum
Output
Current:
±2mA.
Offset
Relative
to
Output
HI: ±2mV
max.
ISOLATION
(Output
LO
to
chassis):
Typically
>10b02
in
parallel
with
500pF.
MAXIMUM
COMMON
MODE
VOLTAGE:
200V.
CONNECTORS:
Outputs:
3-lug
triax.
Trigger
Input/Output:
BNC.
Interlock:
3-pin
miniature
DIN.
TEMPERATURE COEFFICIENT
(O°-18°C
&
28°-50°C):
±(0.l
x
applicable
accuracy
specification)/°C.
ENVIRONMENT:
Operating:
0°—50°C,
70%
relative
humidity
up
to
35°C.
Linearly
derate
3%
RH/°C,
35°—50°C.
Storage:
—25°
to
65°C.
WARM-UP:
One
hour
to
rated
accuracy.
COOLING:
Internal
fan
forced
air
cooling.
POWER:
105—125
or
210—250V
AC
(external
switch
selectable),
90—
110V
and
180—220V
version
available.
100VA
max.
DIMENSIONS,
WEIGHT:
89mm
high
x435mmwide
x448mm
deep
(3.5
in.
x
17.125
in.
x
17.625
in.).
Net
weight
9kg
(19.75
lbs.).
ACCESSORIES
SUPPLIED:
Model
7078-TRX-3:
Triax
to
Triax
Cable,
0.9m
(3
ft.)
Model
236-ILC-3:
Interlock
Cable
ACCESSORIES
AVAILABLE:
Model
8000-10:
Model
8000-14:
Equipment
Rack
for
3
SMUs
(10
in.)
Equipment
Rack
for
4
SMUs
(14
in.)
