OPERATION
ATTENTION:
Only use the silver handle to lift the unit.
ATTENTION:
IP54 is only available when remove all plugs from socket
and in closed position.
1
2
Swivel up lifting handle
and pull up socket
When choosing location, select a surface
between 10mm and 50mm thick.

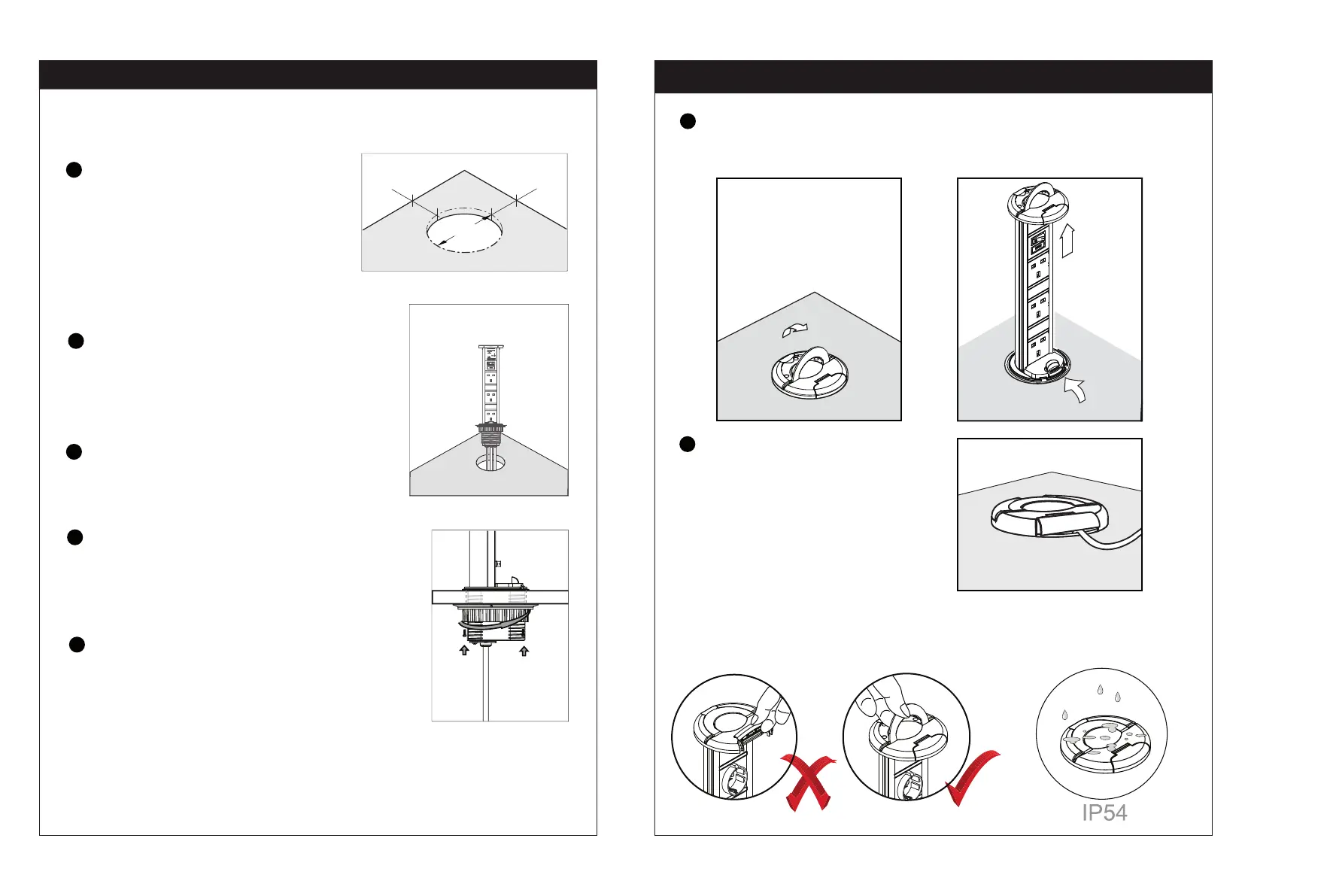

INSTALLATION
ATTENTION: Ensure there is sufficient space
under the installed surface, for the unit when it
retracts to the closed position.
Cut out 92 mm diameter hole in work surface.
Allow minimum 25mm clearance surround the
cut hole.
The locking ring with rubber washer is supplied in
the packaging. If attached to the mounting collar,
remove it by rotating it in an anti-clockwise direction
prior to lowering the unit into its final location.
The installation may only be carried out by an electrical specialist in accordance with international
and national standards.
Ø 92 mm
25 mm
25 mm
1
2
Insert socket into the hole.
3
Connect cable to power supply, once work has been completed
correctly, the product is now ready to use.
5
Place locking ring into collar. Identify and align arrows on
collar and locking ring to ensure the thread is engaged
properly. Turn the locking ring clockwise to tighten. Make
sure rubber washer is compressed tightly on underside of
surface. Tighten the screw until the ring firmly grip the surface.
4
To use the Pop-up Socket, gentle lift up the silver handle on the top cover until all socket
outlets are exposed and the orange stop/release button clicks and locks the unit in place.
Press the master switch on. An orange light confirms that
power is available. You can use all the power sockets.
The unit can be retracted in position by pressing the
orange stop/release button and push the unit down until
it is flush with the surface. And leaving the engaged
cables on the window of the top cover.
