Set content How to use

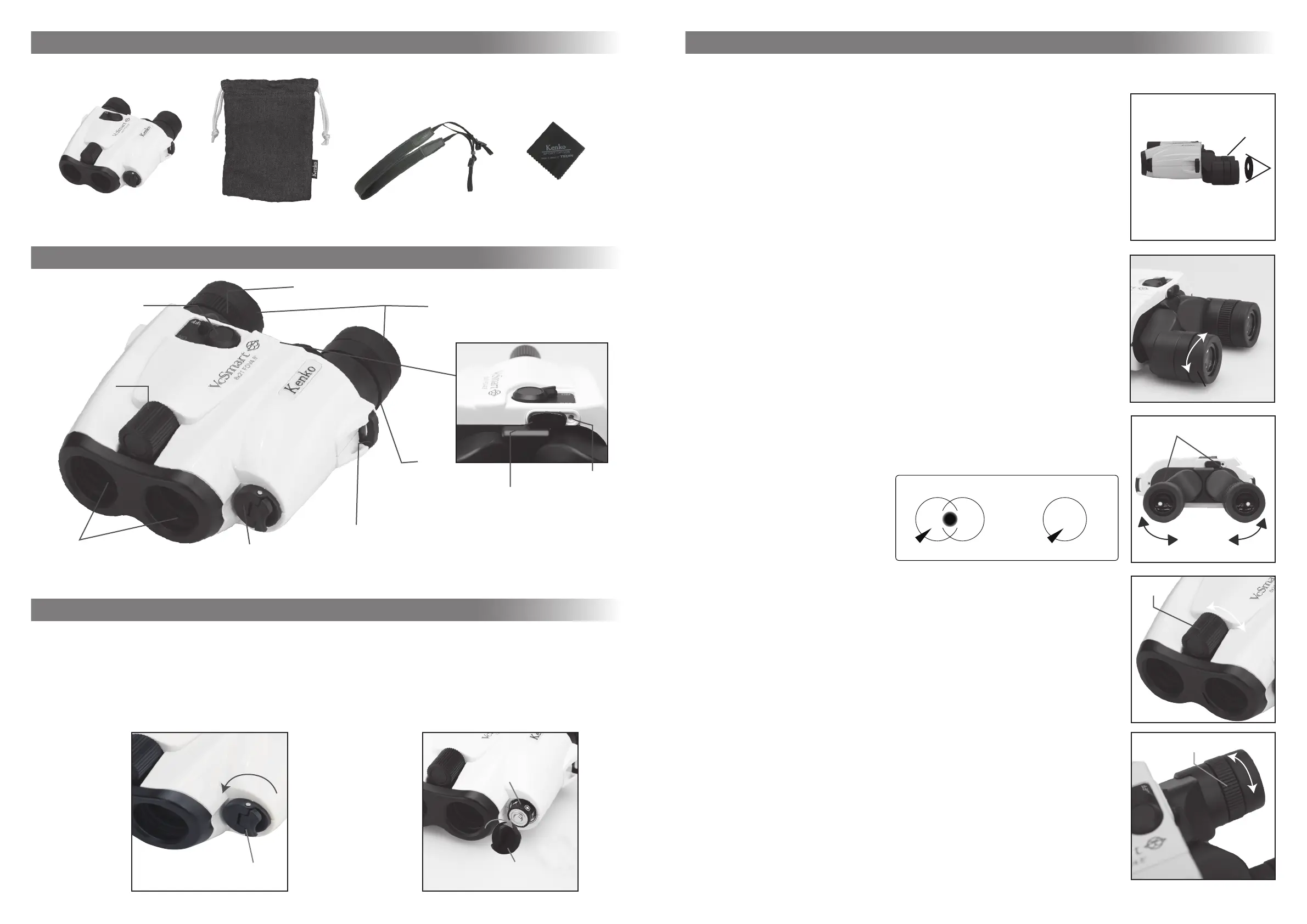

Parts names
How to insert battery
Binoculars Pouch Strap Cloth
Adjust the eyepoint properly and focus to bring out the product’s best performance. Viewing may vary depending on physical
conditions, the surrounding environment, weather, etc. Please precisely adjust each time before use.
3.Adjust interpupillary distance
By holding the unit with both hands, slowly fold the eyecups until they align with your own
interpupillary distance. The optimal interpupillary distance is when the images seen from each eye
overlaps in a circle, as shown in the image below.
2.Adjusting the eyepoint
These binoculars are equipped with twist-up eyecups. Adjust eyecups into a comfortable position
for your eyes and sight before use.
For those users not wearing eyeglasses, or using contact lenses, we suggest to use the twist-up
eyecups extended. Turn the twist-up eyecups counterclockwise to extend them.
For those users wearing glasses, we suggest to use the twist-up eyecups shortened.
1.Looking through the binoculars
To see your target object correctly, look through the eyepiece side of the binoculars.
*The target object appears smaller when looking from the opposite side (objective lens side).
Twist-up eyecups
Shorten
Extend
It is necessary to insert one new AA alkaline battery to use the Vibration Control function.
1. Raise the knob on the battery cover and turn to remove (Image 1).
2. Insert one AA alkaline battery, making sure that the plus (+) side goes toward the battery cover side (see Image 2)
3. Turn the battery cover to tighten.
*Remove the battery when not using the binoculars for a long time.
*Keep on the battery cover even when the battery is removed. Do not let metal touch the contacts.
Open
Objective lens
Strap attachment section
Focuswheel
Twist-up eyecups
Dioptric power correction ring
Eyepiece
Battery cover
Vibration Control switch
ON/OFF
Tighten
Battery cover Battery cover
AA alkaline battery
【
Image 1
】 【
Image 2
】
[Side]
Pilot lamp
Sliding shutter
Eyecups
4.Adjust dioptric power and focus
①Choose a target, like a symbol or letter on a board.
②Close the right eye first and turn the focus wheel until the chosen target can be clearly seen with
only the left eye opened.
③Then close the left eye and turn the focus wheel until the chosen target can be clearly seen with
only the right eye opened.
④The difference in dioptric power on both sides is thus adjusted, and the misadjusted focus on
both eyes is corrected.
From this point, the focus can be immediately adjusted by simply rotating the focus wheel.
*Turn ON the Vibration Control function to adjust the focus more easily.
Focus wheel
Dioptric power correction ring
Eye width is not aligned Eye width is aligned
Shaded Perfect vision
Eyepiece
Look through this side
