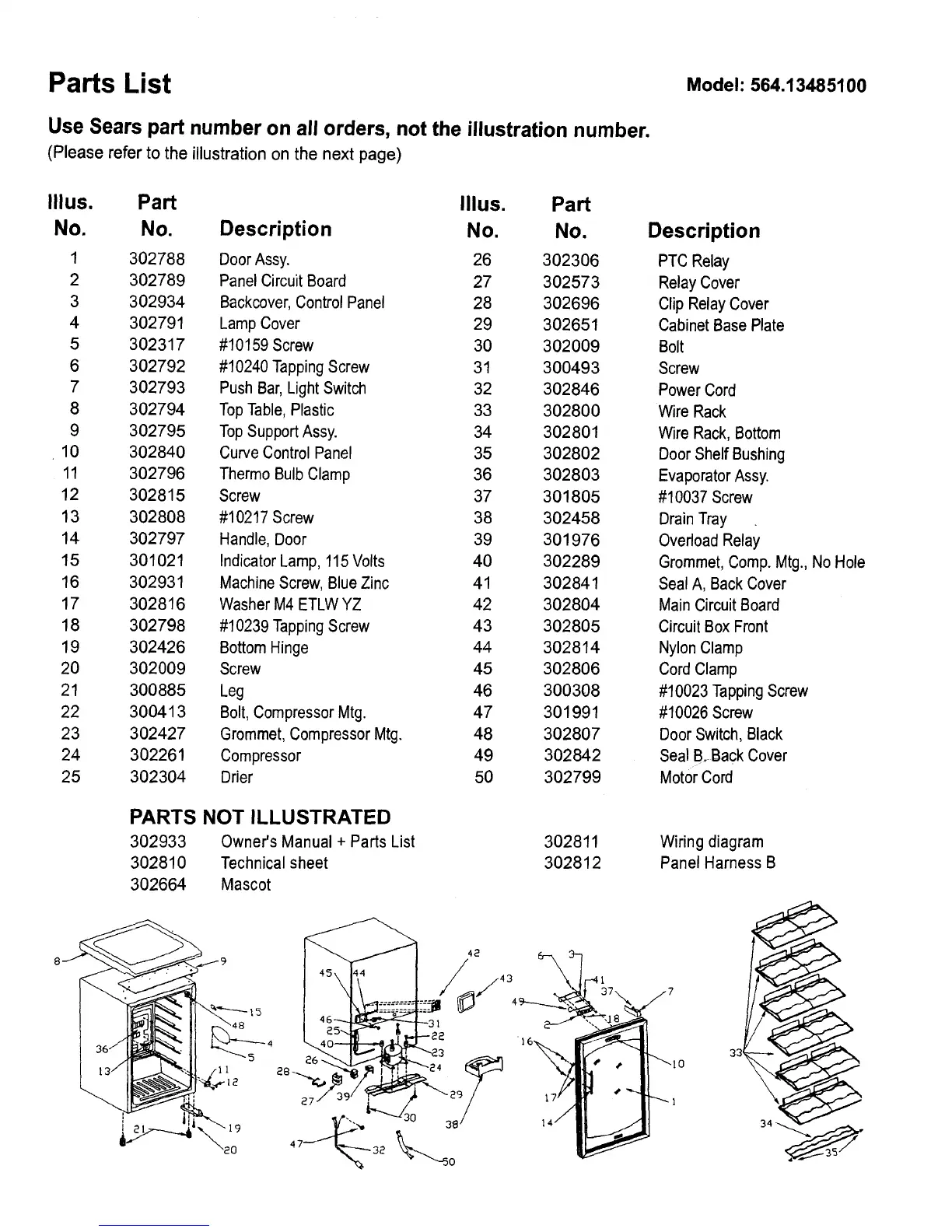

Parts List
Use Sears part number on all orders, not the illustration number.
(Please refer to the illustration on the next page)
Model: 564.13485100
Illus. Part Illus. Part
No. No. Description No. No.
1 302788 Door Assy. 26 302306
2 302789 Panel Circuit Board 27 302573
3 302934 Backcover, Control Panel 28 302696
4 302791 Lamp Cover 29 302651
5 302317 #10159 Screw 30 302009
6 302792 #10240 Tapping Screw 31 300493
7 302793 Push Bar, Light Switch 32 302846
8 302794 Top Table, Plastic 33 302800
9 302795 Top Support Assy. 34 302801
10 302840 Curve Control Panel 35 302802
11 302796 Thermo Bulb Clamp 36 302803
12 302815 Screw 37 301805
13 302808 #10217 Screw 38 302458
14 302797 Handle, Door 39 301976
15 301021 Indicator Lamp, 115 Volts 40 302289
16 302931 Machine Screw, Blue Zinc 41 302841
17 302816 Washer M4 ETLW YZ 42 302804
18 302798 #10239 Tapping Screw 43 302805
19 302426 Bottom Hinge 44 302814
20 302009 Screw 45 302806
21 300885 Leg 46 300308
22 300413 Bolt, Compressor Mtg. 47 301991
23 302427 Grommet, Compressor Mtg. 48 302807
24 302261 Compressor 49 302842
25 302304 Drier 50 302799
PARTS NOT ILLUSTRATED
302933 Owner's Manual + Parts List
302810 Technical sheet
302664 Mascot
3O
42
302811
302812
Description
PTC Relay
Relay Cover
Clip Relay Cover
Cabinet Base Plate
Bolt
Screw
Power Cord
Wire Rack
Wire Rack, Bottom
Door Shelf Bushing
Evaporator Assy.
#10037 Screw
Drain Tray
Overload Relay
Grommet, Comp. Mtg., No Hole
Seal A, Back Cover
Main Circuit Board
Circuit Box Front
Nylon Clamp
Cord Clamp
#10023 Tapping Screw
#10026 Screw
Door Switch, Black
Seal B_Back Cover
Motor Cord
Wiring diagram
Panel Harness B
33'
34__
