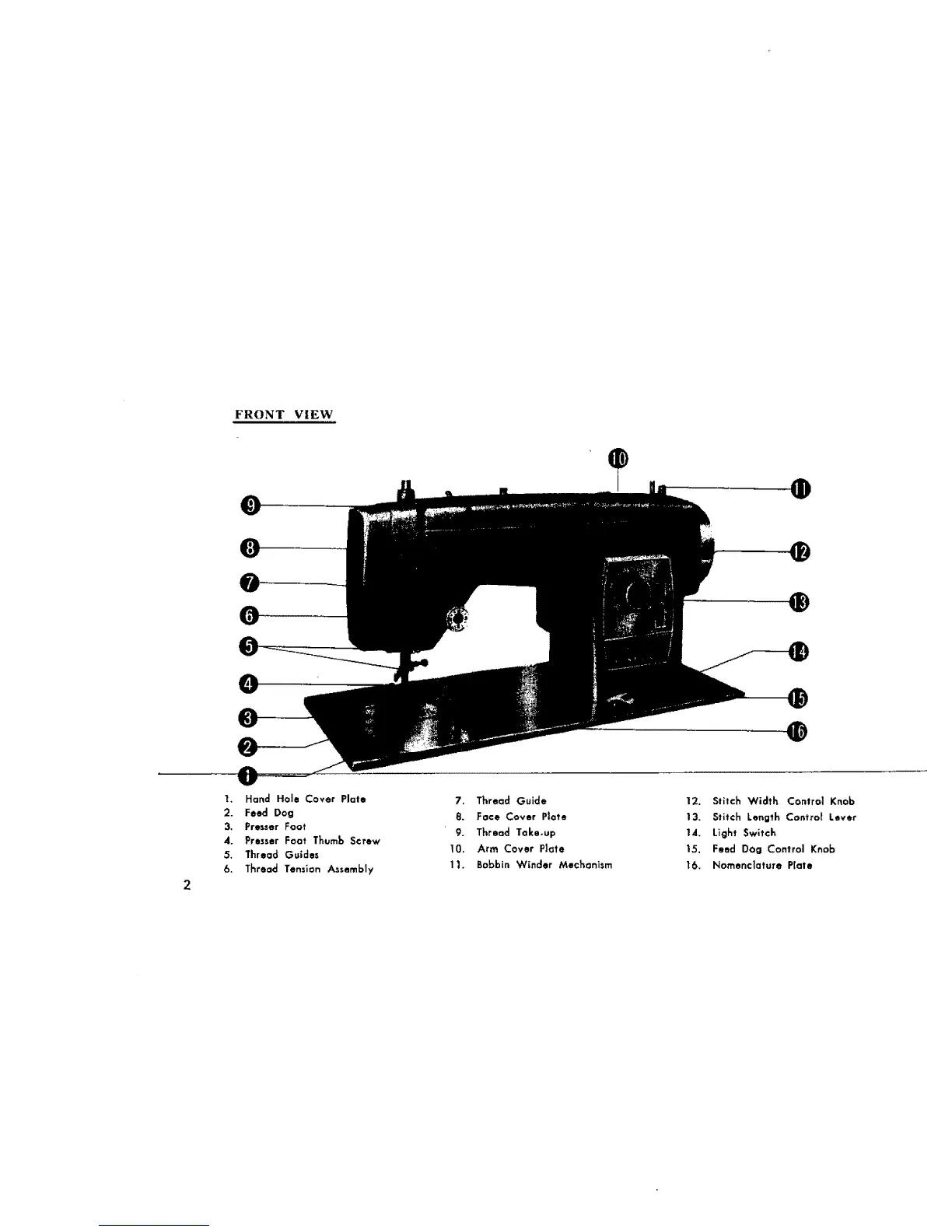

FRONT VIEW
o
o
@
o
®
®
®
O
1. Hand Hole Cover Plate
2. Feed Dog
3, Presser Foot
4. Presser Foot Thumb Screw
5, Thread Guides
6. Thread Tension Assembly
7. Thread Guide
8. Face Cover Plate
9. Thread Take.up
10. Arm Cover Plate
11. Bobbin Winder Mechanism
12. Stitch Width Control Knob
13. Stitch Length Control Lever
14. Light Switch
15. Fead Dog Control Knob
t6. Nomenclature Plate
