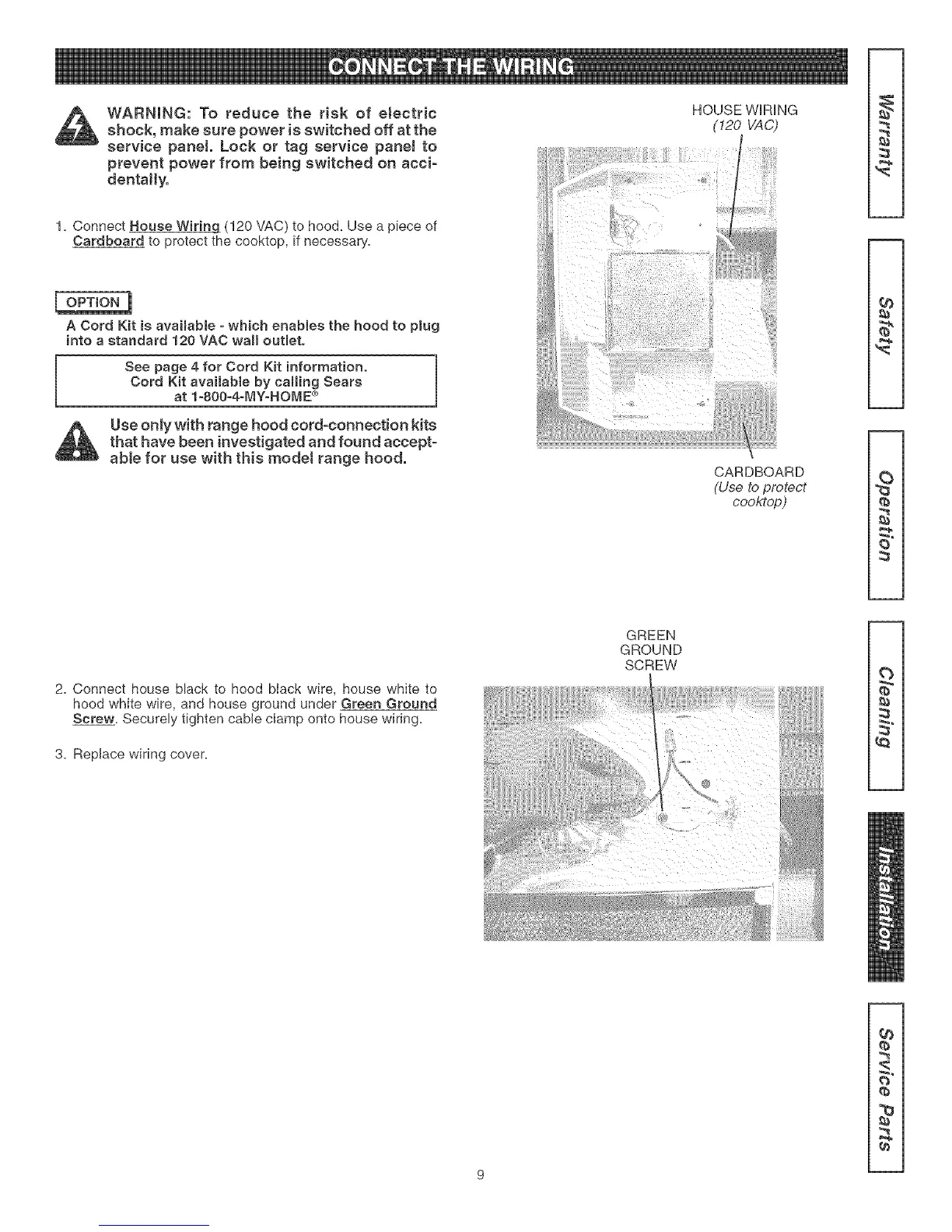

WARNING: To reduce the risk of eJectric
shock, make sure power is switched off at the
service panel. Lock or tag service panet to
prevent power from being switched on acci-
dentally.
1= Connect House Wiring (120 VAC) to hood= Use a piece of
Cardboard to protect the cooktop, if necessary=
A Cord Kit is avaimable = which enables the hood to plug
into a standard 120 VAC wall outmeto
See page 4 for Cord Kit information.
Cord Kit available by calling Sears
at 1-80O=4=MY-HOME ®
Use only with range hood cord-connection kits
that have been investigated and found accept-
able for use with this modet range hood.
HOUSE WIRING
(120 VAC)
CARDBOARD
(Use to protect
cooktop)
2
2= Connect house black to hood black wire, house white to
hood white wire, and house ground under Green Ground
Screw= Securely tighten cable clamp onto house wiring=
3= Replace wiring cover=
GREEN
GROUND
SCREW
(b
3"
O_
2
9
