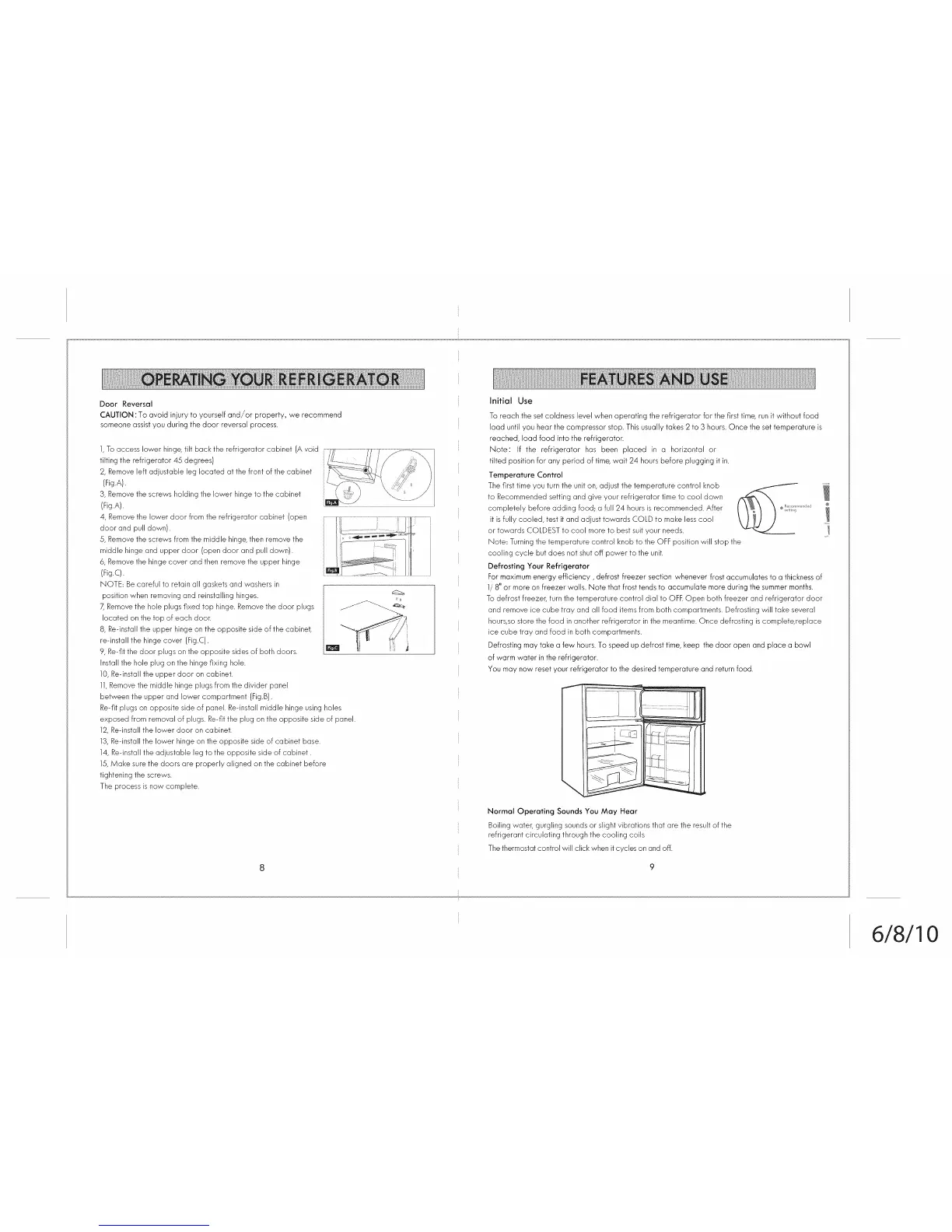

Door Reversal
CAUTION : To avoid injury to yourself and/or property, we recommend
someone assist you during the door reversal process.
1,To access lower hinge, tilt back the refrigerator cabinet (A void
tilting the refrigerator 45 degrees)
2, Remove left adjustable leg located at the front of the cabinet
(Fig.A).
3, Remove the screws holding the lower hinge to the cabinet
(Fig.A).
4, Remove the lower door from the refrigerator cabinet (open
door and pull down).
5, Remove the screws from the middle hinge, then remove the
middle hinge and upper door (open door and pull down).
6, Remove the hinge cover and then remove the upper hinge
(Fig.C).
NOTE: Be careful to retain all gaskets and washers in
position when removing and reinstalling hinges.
7,Remove the hole plugs fixed top hinge. Remove the door plugs
located on the top of each door.
8, Re-install the upper hinge on the opposite side of the cabinet,
re-install the hinge cover (Fig.C).
9, Re-fit the door plugs on the opposite sides of both doors.
Install the hole plug on the hinge fixing hole.
10, Re-install the upper door on cabinet.
11,Remove the middle hinge plugs from the divider panel
between the upper and lower compartment (Fig.B).
Re-fit plugs on opposite side of panel. Re-install middle hinge using holes
exposed from removal of plugs. Re-fit the plug on the opposite side of panel.
12, Re-install the lower door on cabinet.
13, Re-install the lower hinge on the opposite side of cabinet base.
14, Re-install the adjustable leg to the opposite side of cabinet.
15, Make sure the doors are properly aligned on the cabinet before
tightening the screws.
The process is now complete.
8
initial Use
To reach the set coldness level when operating the refrigerator for the first time, run it without food
load until you hear the compressor stop. This usually takes 2 to 3 hours. Once the set temperature is
reached, load food into the refrigerator.
Note: tf the refrigerator has been placed in a horizontal or
titted position for any period of time, wait 24 hours before plugging it in.
Temperature Control
The first time you turn the unit on, adjust the temperature control knob
to Recommended setting and give your refrigerator time to cool down
completely before adding food; a full 24 hours is recommended. After ÷_,i!'_';'2''_'_:::_
it is fully cooled, test it and adjust towards COLD to make less cool
or towards COLDEST to cool more to best suit your needs.
Note: Turning the temperature control knob to the OFF position will stop the
cooling cycle but does not shut off power to the unit.
Defrosting Your Refrigerator
For maximum energy efficiency, defrost freezer section whenever frost accumulates to a thickness of
1/8" or more on freezer walls. Note that frost tends to accumulate more during the summer months.
To defrost freezer, turn the temperature control dial to OFF. Open both freezer and refrigerator door
and remove ice cube tray and all food items from both compartments. Defrosting will take several
hours, so store the food in another refrigerator in the meantime. Once defrosting is complete, replace
ice cube tray and food in both compartments.
Defrosting may take a few hours. To speed up defrost time, keep the door open and place a bowl
of warm water in the refrigerator.
You may now reset your refrigerator to the desired temperature and return food.
Normal Operating Sounds You May Hear
Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant circulating through the cooling coils
The thermostat control will click when it cycles on and off.
