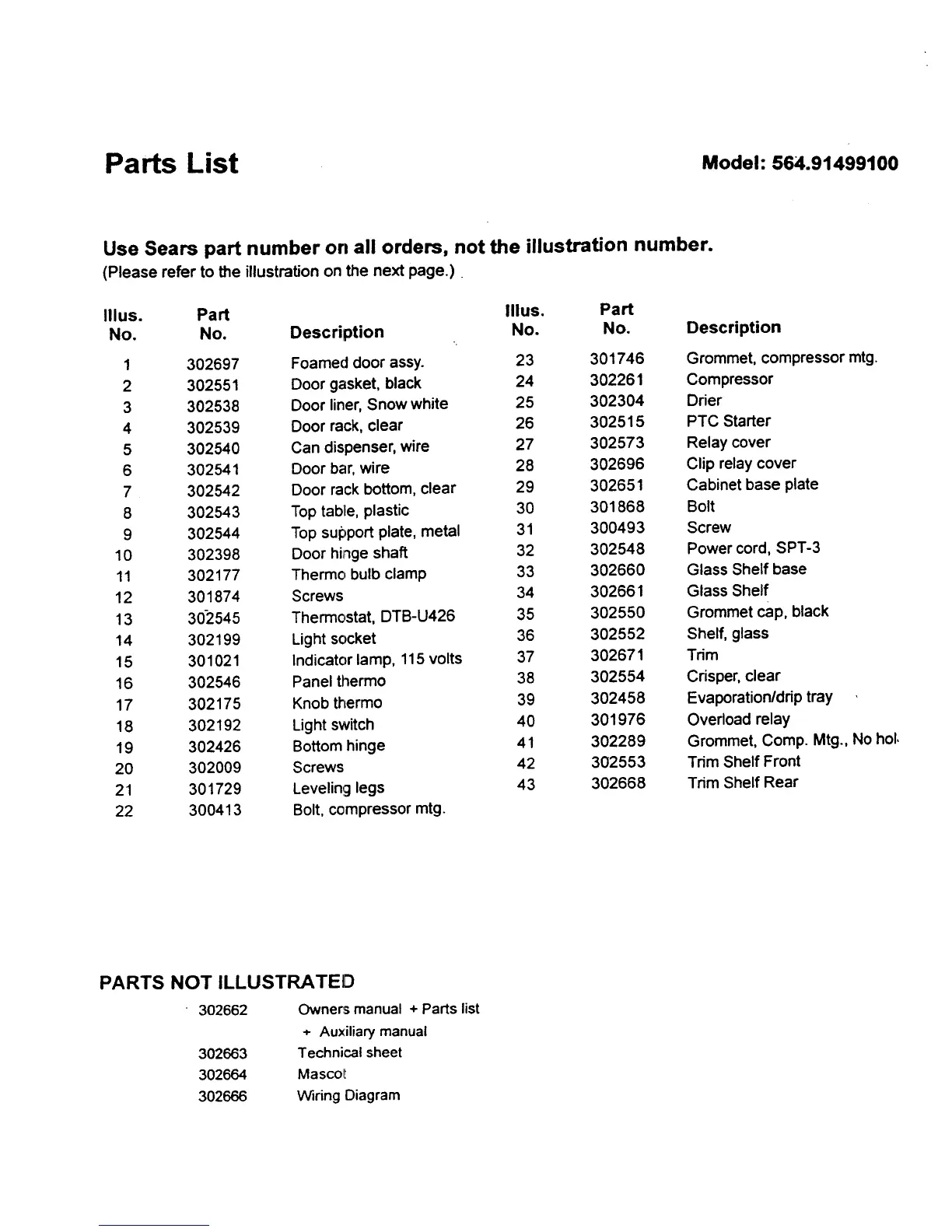

Parts List
Model: 564.91499100
Use Sears part number on all orders, not the illustration number.
(Please refer to the illustration on the next page.)
Illus. Part Illus. Part
No. No. Description No. No.
1 302697 Foamed door assy. 23 301746
2 302551 Door gasket, black 24 302261
3 302538 Door liner, Snow white 25 302304
4 302539 Door rack, clear 26 302515
5 302540 Can dispenser, wire 27 302573
6 302541 Door bar, wire 28 302696
7 302542 Door rack bottom, clear 29 302651
8 302543 Top table, plastic 30 301868
9 302544 Top support plate, metal 31 300493
10 302398 Door hinge shaft 32 302548
11 302177 Thermo bulb clamp 33 302660
12 301874 Screws 34 302661
13 30-2545 Thermostat, DTB-U426 35 302550
14 302199 Light socket 36 302552
15 301021 Indicator lamp, 115 volts 37 302671
16 302546 Panel therrno 38 302554
17 302175 Knob thermo 39 302458
18 302192 Light switch 40 301976
19 302426 Bottom hinge 41 302289
20 302009 Screws 42 302553
21 301729 Leveling legs 43 302668
22 300413 Bolt, compressor mtg.
Description
Grommet, compressor mtg.
Compressor
Drier
PTC Starter
Relay cover
Clip relay cover
Cabinet base plate
Bolt
Screw
Power cord, SPT-3
Glass Shelf base
Glass Shelf
Grommet cap, black
Shelf, glass
Trim
Crisper, clear
Evaporation/drip tray
Overload relay
Grommet, Comp. Mtg., No hol,
Tdm Shelf Front
Trim Shelf Rear
PARTS NOT ILLUSTRATED
" 302662 Owners manual + Parts list
+ Auxiliary manual
302663 Technical sheet
302664 MascoJt
302666 Wiring Diagram
