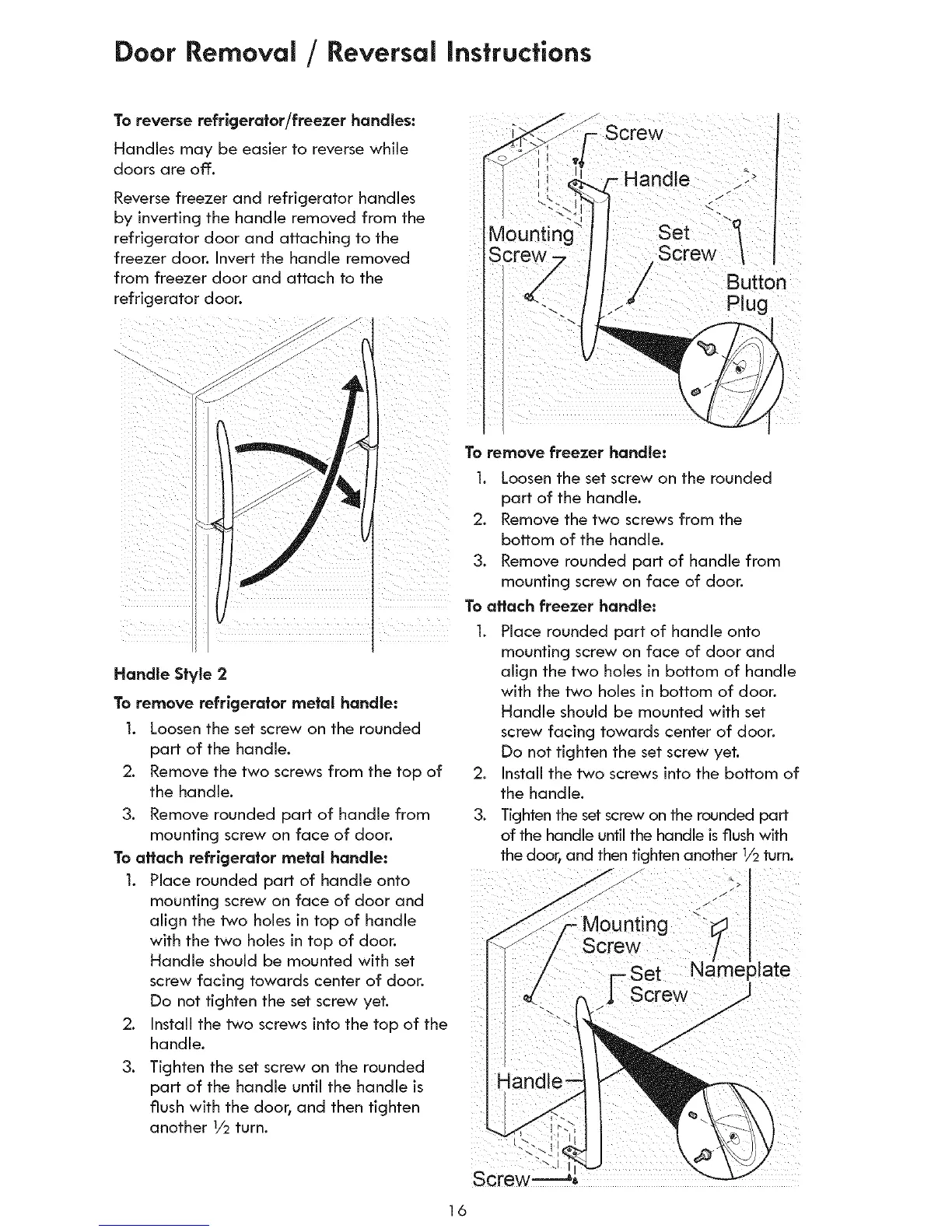

Door Removal/Reversal Instructions
To reverse refrigerator/freezer handles:
Handles may be easier to reverse while
doors are off.
Reverse freezer and refrigerator handles
by inverting the handle removed from the
refrigerator door and attaching to the
freezer door. Invert the handle removed
from freezer door and attach to the
refrigerator door.
Mounting
Sc
Handle Style 2
To remove refrigerator metal handle:
1. Loosen the set screw on the rounded
part of the handle.
2. Remove the two screws from the top of 2.
the handle.
3. Remove rounded part of handle from 3.
mounting screw on face of door.
To attach refrigerator metal handle:
]. Place rounded part of handle onto
mounting screw on face of door and
align the two holes in top of handle
with the two holes in top of door.
Handle should be mounted with set
screw facing towards center of door.
Do not tighten the set screw yet.
2. Install the two screws into the top of the
handle.
3. Tighten the set screw on the rounded
part of the handle until the handle is
flush with the door, and then tighten
another 1/2 turn.
_crew
Set "I
/ Screw
,, Button
,c Plug
To remove freezer handle:
]. Loosen the set screw on the rounded
part of the handle.
2. Remove the two screws from the
bottom of the handle.
3. Remove rounded part of handle from
mounting screw on face of door.
To affach freezer handle:
]. Place rounded part of handle onto
mounting screw on face of door and
align the two holes in bottom of handle
with the two holes in bottom of door.
Handle should be mounted with set
screw facing towards center of door.
Do not tighten the set screw yet.
Install the two screws into the bottom of
the handle.
Tighten the set screw on the rounded part
of the handle until the handle isflush with
the door, and then tighten another I/2 turn.
/-
)late
Screw
16
