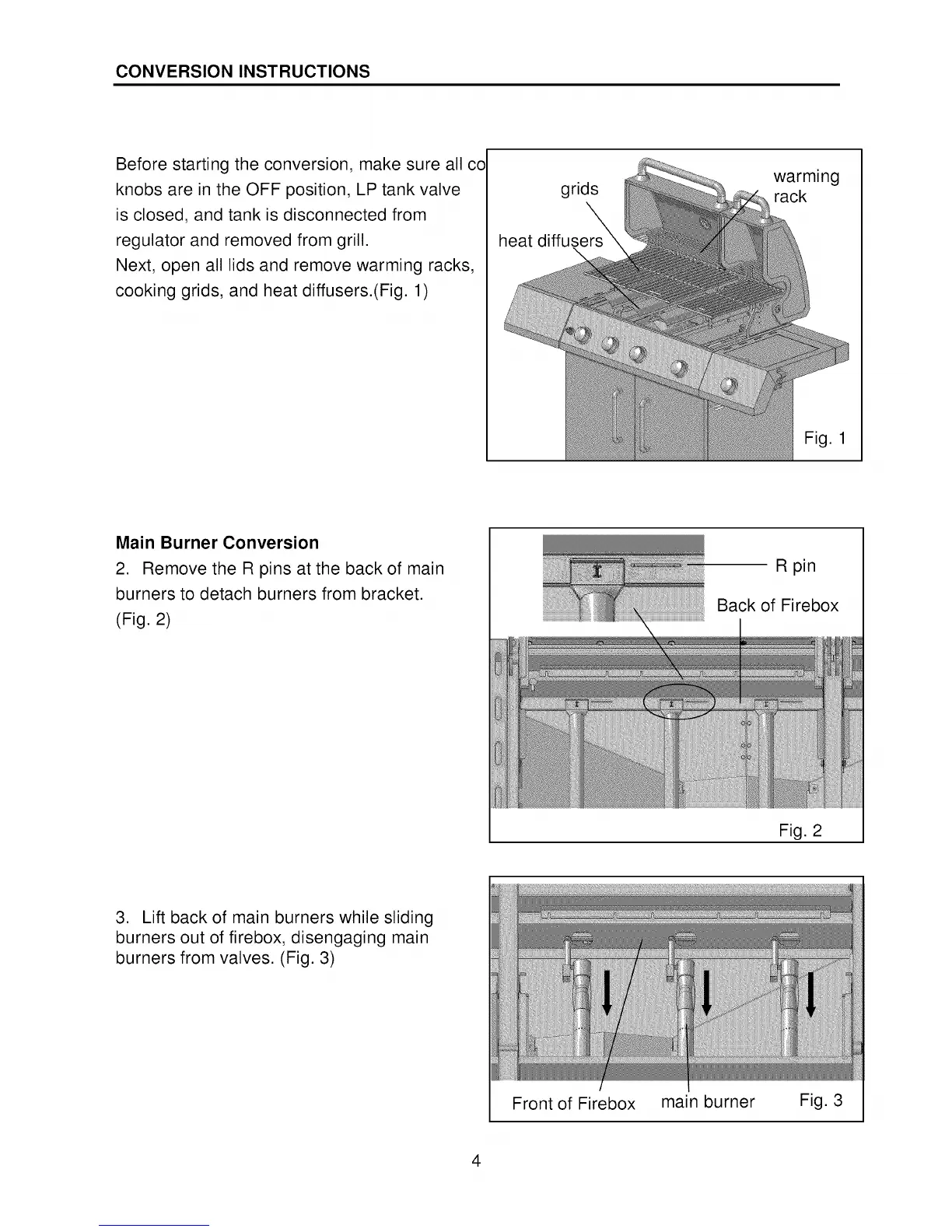

CONVERSION INSTRUCTIONS
Before starting the conversion, make sure all co
knobs are in the OFF position, LP tank valve
is closed, and tank is disconnected from
regulator and removed from grill.
Next, open all lids and remove warming racks,
cooking grids, and heat diffusers.(Fig. 1)
heat
grids
rack
Fig. 1
Main Burner Conversion
2. Remove the R pins at the back of main
burners to detach burners from bracket.
(Fig. 2)
R pin
Back of Firebox
Fig. 2
3. Lift back of main burners while sliding
burners out of firebox, disengaging main
burners from valves. (Fig. 3)
Front of Firebox main burner Fig. 3
4
