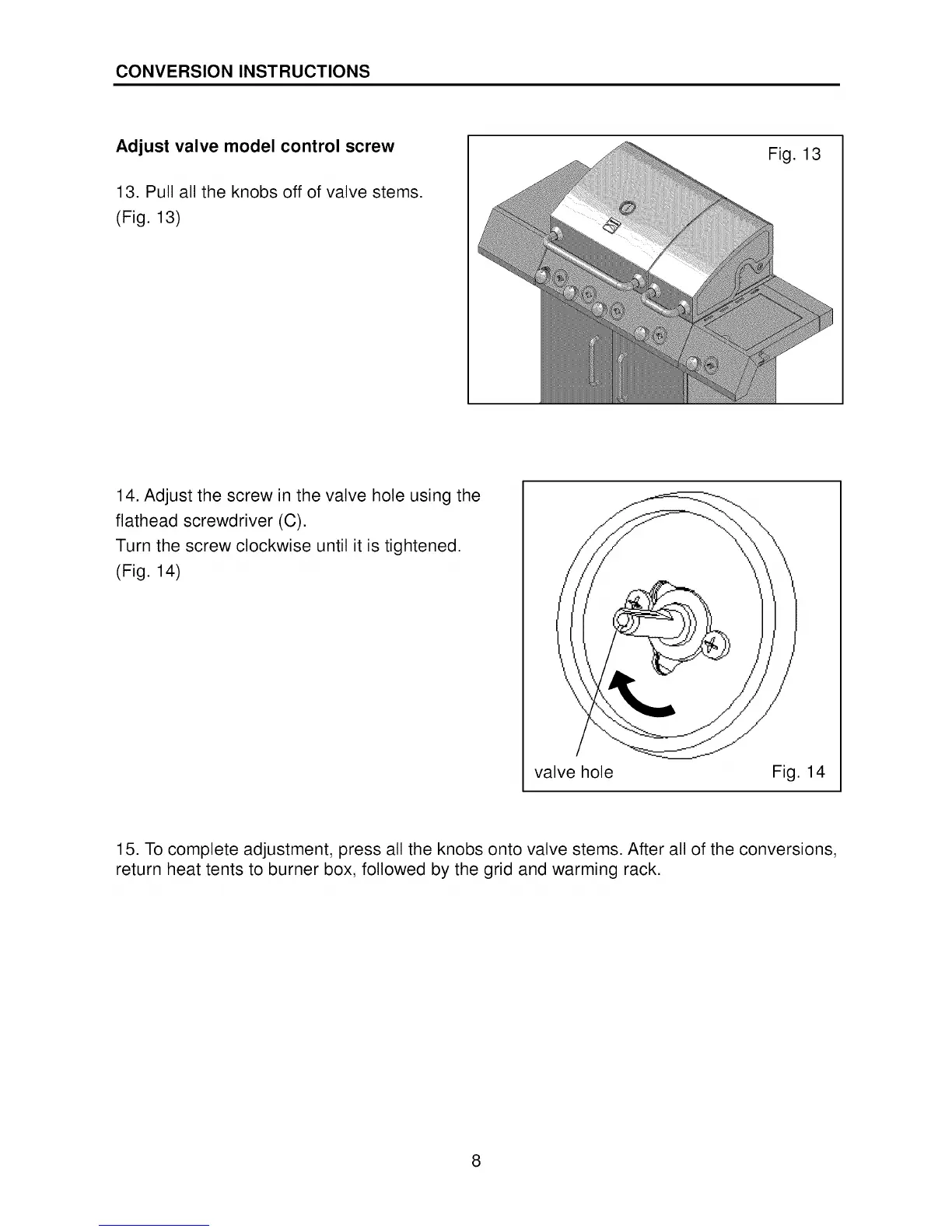

CONVERSION INSTRUCTIONS
Adjust valve model control screw
13. Pull all the knobs off of valve stems.
(Fig. 13)
Fig. 13
14. Adjust the screw in the valve hole using the
flathead screwdriver (C).
Turn the screw clockwise until it is tightened.
(Fig. 14)
valve hole Fig. 14
15. To complete adjustment, press all the knobs onto valve stems. After all of the conversions,
return heat tents to burner box, followed by the grid and warming rack.
8
