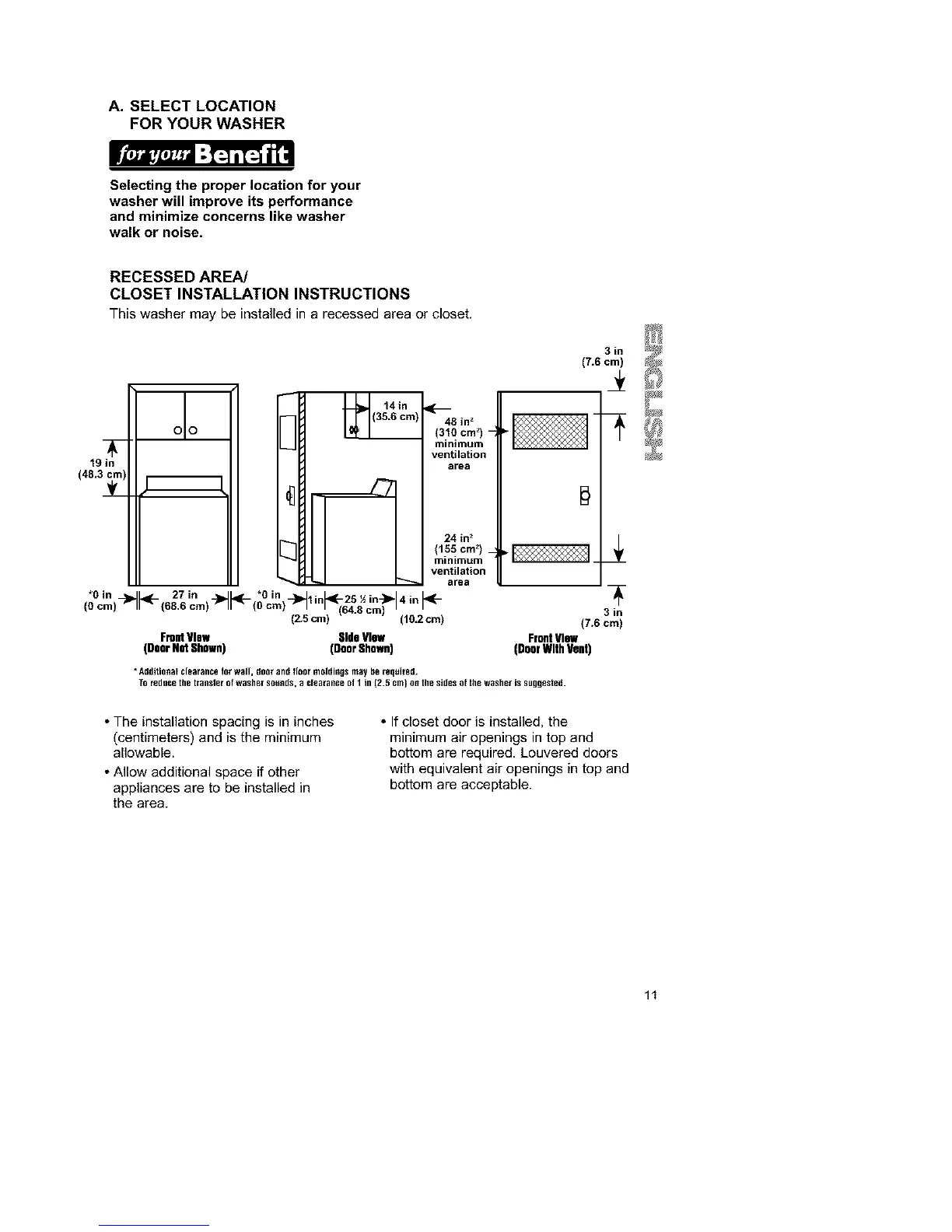

A. SELECT LOCATION
FOR YOUR WASHER
Selecting the proper location for your
washer will improve its performance
and minimize concerns like washer
walk or noise,
RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
This washermay be installed in a recessed area or closet.
0 0 14in
I
*0in _ll_- 27in _l_4r-- *0in _t n_(--25_ n-_14 n_-
(0cm) " II _ (68.6cm)_ II _ (0cm)t t (64.8cm)
(2,5 cm) (10.2 cm)
FrontView SideView
(DoorNOtShown) (DoorShown)
48 ir__
(3t0 cm _) -
minimum
ventilation
area
24 in _
(155 cm _) _
minimum
ventilation
area
3 in
(7.6 cm)
#
3 in
(7.6 cm)
FrontView
(DoorWithVent)
* Additional clearance for wall, door and lIoor moldings may be reqaired.
T_ _ t_ t_le_ <_l_ _stx_ _ds, a _ea_a_e QI 1 in (2._ cml on the sides ol the washer is su_Igested.
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required, Louvered doors
with equivalent air openings in top and
bottom are acceptable.
11
