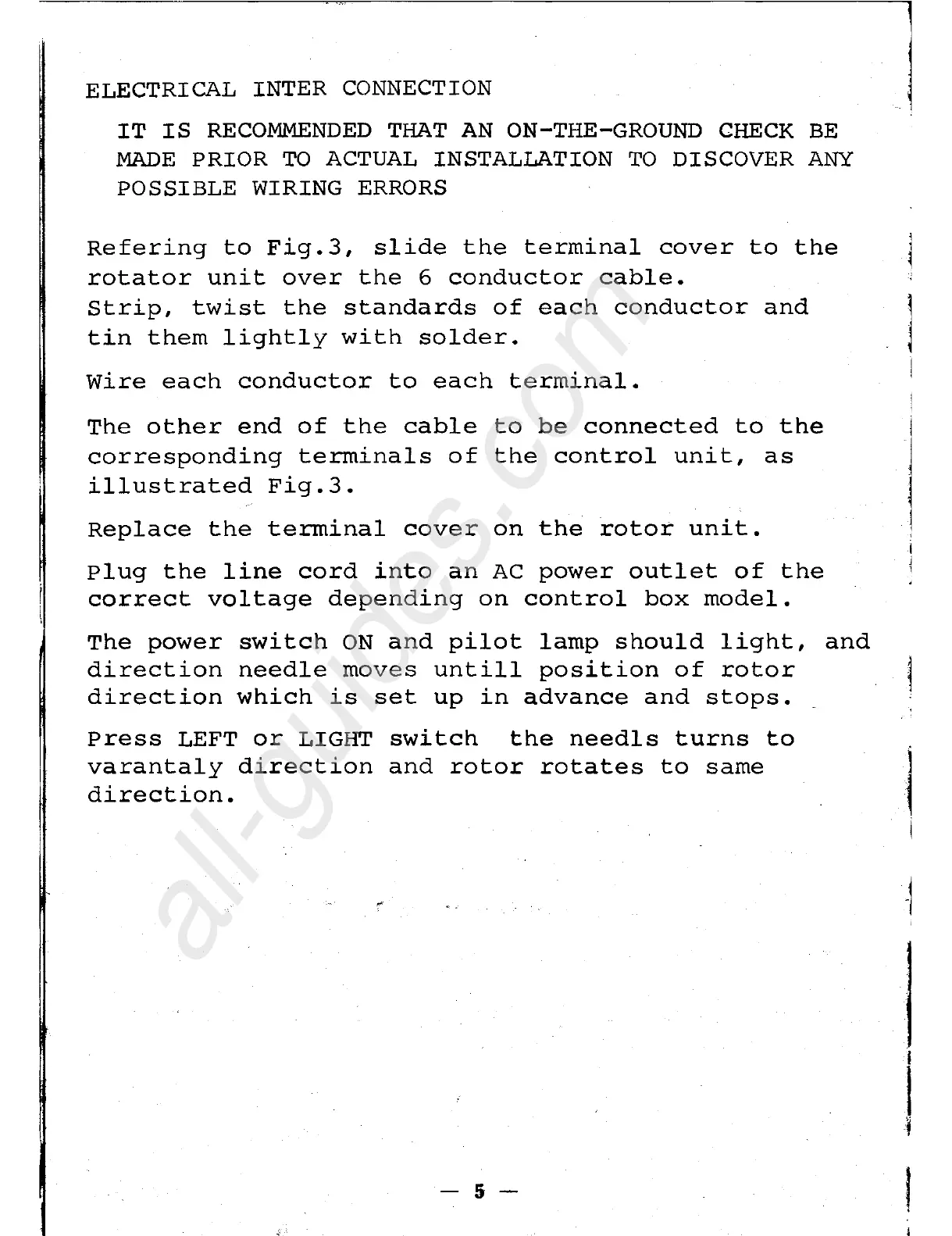

ELECTRICAL
INTER
CONNECTTON
IT IS
RECOMMENDED THAT AN ON-THE-GROUND CHECK
BE
I"IADE
PRIOR TO ACTUAL INSTALI"ATION TO DISCOVER ANY
POSSIBLE
WIRING ERRORS
Refering
to
Fig.3,
slide
the terminal cover
to the
rotator
unit over
the
6 conductor
cable.
Strip,
twist
the
standard.s
of each conductor and
tin
them
light.Iy
with
solder.
Inlire each
conductor to each Lerminal.
The
other end
of the cable to be connected to the
corresponding
terminals of the control unit, äs
illustrated Fig.3.
Replace
the terminal cover on
the
rotor
unit.
Plug
the
line
cord into an AC
power
outlet of
the
correct voltage depending
on control box model.
The
power
switch
ON
and
pilot
lamp
should fight, and
direction needle moves
untill
position
of
rotor
direction which is set up in
advance
and
stops.
Press
LEFT
or
LIGHT
switch the needls turns to
varantaly
direction
and
rotor
rotates
to
same
direction.
-5-
