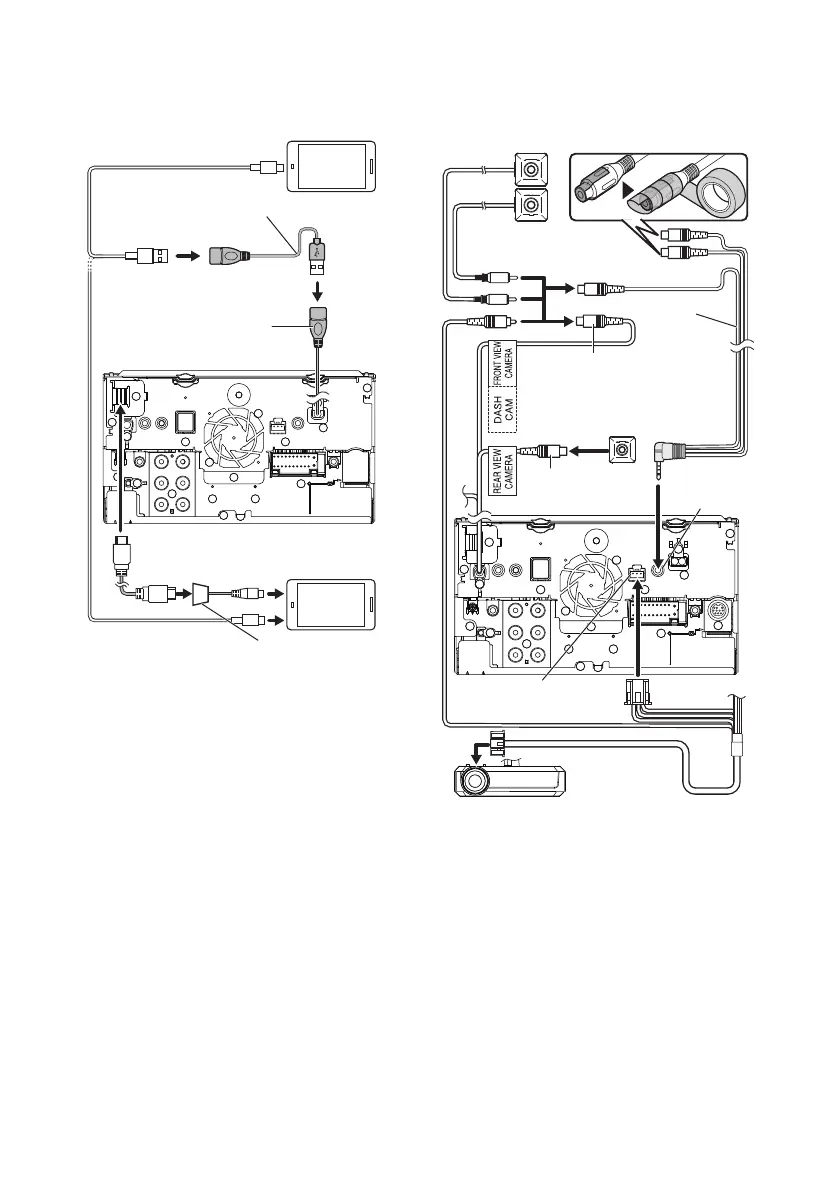

Connection/Installation
86
● DMX7520DABS
Micro USB to USB cable
[2]
Android smartphone
(with Android Auto)
[2]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[4]
Micro HDMI to HDMI
adapter
[2]
Micro USB to USB cable
[2]
Android smartphone (with HDMI)
[2]
KCA-HD100 (1.8 m)
[3]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable
(P.84).
[5]
USB (Gray) terminal does not support USB
Mirroring.
Ñ Connecting the camera
Left side view camera and
Right side view camera
[2]
Front view camera/Dashboard
camera input (Yellow)
Rear view camera
[5]
Rear view camera
input (Yellow)
Dashboard camera interface
DRV-N520
[1]
AV-IN input
[4]
Front view camera
[5]
CA-C3AV
[1]
VIDEO input (Yellow)
[3]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 2 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
details, see To set up the camera assignment
settings (P.56).
[4]
Insulate audio input terminals of CA-C3AV
(optional accessory) when connecting to the
Camera.
[5]
CMOS-3xx series (optional accessory) or
commercially available camera.
