Connection/Installation
19English
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable (P.18).
[5]
USB (Gray) terminal does not support USB
Mirroring.
[6]
DMX8020DABS only

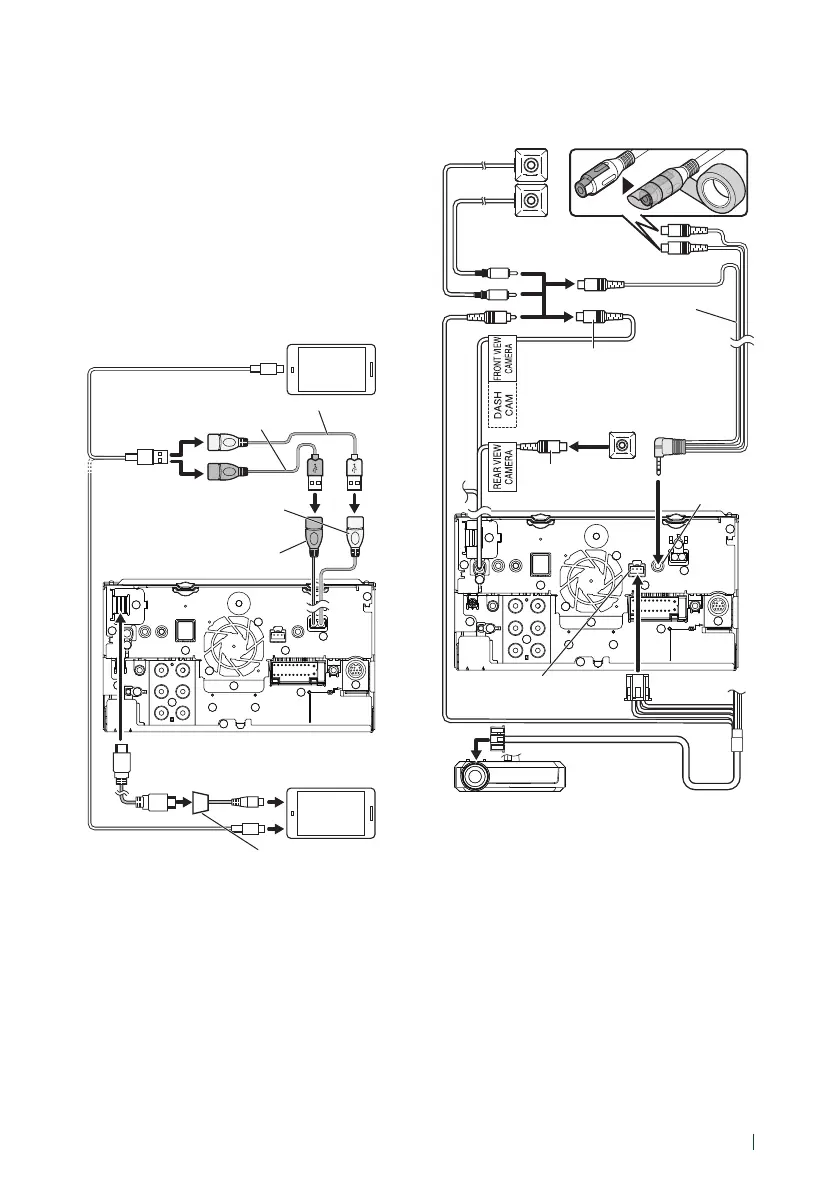

Ñ Connecting an Android
smartphone
Micro USB to USB cable
[2]
Android smartphone
(with Android Auto)
[2]
USB (Gray) terminal
[1] [5] [6]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[4]
Accessory 3 (Gray) (1 m)
[4] [6]
Micro HDMI to HDMI
adapter
[2]
Micro USB to USB cable
[2]
Android smartphone (with HDMI)
[2]
KCA-HD100 (1.8 m)
[3]
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable
(P.18).
[5]
USB (Gray) terminal does not support USB
Mirroring.
[6]
DMX8020DABS only
Ñ Connecting the camera
Left side view camera and
Right side view camera
[2]
Front view camera/Dashboard
camera input (Yellow)
Rear view camera
[5]
Rear view camera
input (Yellow)
Dashboard camera interface
DRV-N520
[1]
AV-IN input
[4]
Front view camera
[5]
CA-C3AV
[1]
VIDEO input (Yellow)
[3]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 2 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
details, see To set up the camera assignment
settings (P.56) in the Instruction Manual.
[4]
Insulate audio input terminals of CA-C3AV
(optional accessory) when connecting to the
Camera.
[5]
CMOS-3xx series (optional accessory) or
commercially available camera.
To Next Page
