Kenwood TM-D700A Service Manual

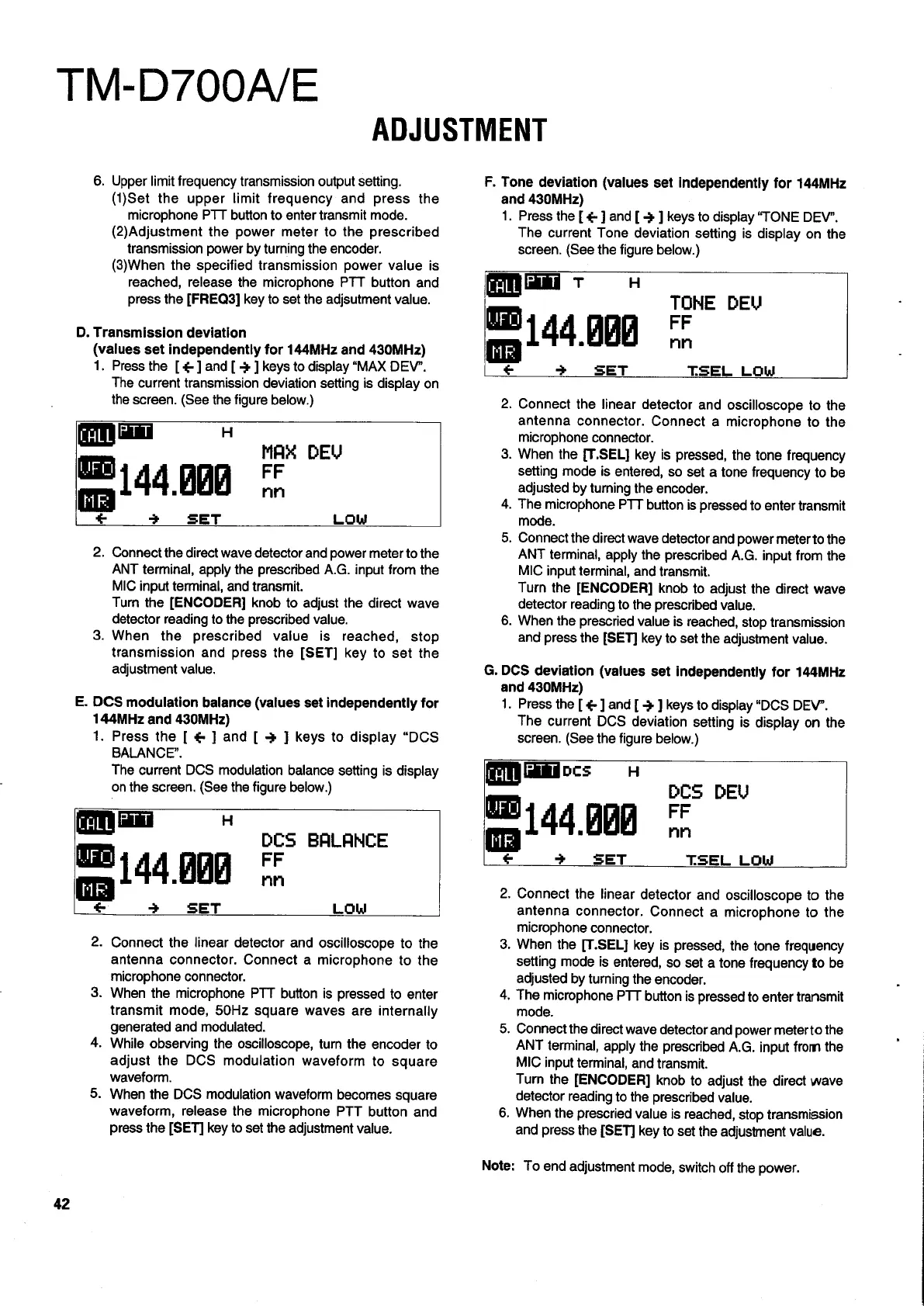

TM-D700A/E
42
ADJUSTMENT
6. Upper limit frequency transmission output setting.
(1)Set the upper limit frequency and press the
microphone PTT button to enter transmit mode.
(2)Adjustment the power meter to the prescribed
transmission power by turning the encoder.
(3)When the specified transmission power value is
reached, release the microphone PTT button and
press the [FREQ3] key to set the adjsutment value.
D. Transmission deviation
(values set independently for 144MHz and 430MHz)
1. Press the [€] and [ + ] keys to display “MAX DEV”.
The current transmission deviation setting is display on
the screen. (See the figure below.)
CLL H
NAM DEV
44008 *
£4 SET
LOW
2. Connect the direct wave detector and power meter to the
ANT terminal, apply the prescribed A.G. input from the
MIC input terminal, and transmit.
Turn the [ENCODER] knob to adjust the direct wave
detector reading to the prescribed value.
3. When the prescribed value is reached, stop
transmission and press the [SET] key to set the
adjustment value.
E. DCS modulation balance (values set independently for
144MHz and 430MHz)
1. Press the [ & ] and [ + ] keys to display “DCS
BALANCE”.
The current DCS modulation balance setting is display
on the screen. (See the figure below.)
H
DCS BALANCE
i409 =
4c " nn
> SET
Ll
2. Connect the linear detector and oscilloscope to the
antenna connector. Connect a microphone to the
microphone connector.
3. When the microphone PTT button is pressed to enter
transmit mode, 50Hz square waves are internally
generated and modulated.
4. While observing the oscilloscope, turn the encoder to
adjust the DCS modulation waveform to square
waveform.
5. When the DCS modulation waveform becomes square
waveform, release the microphone PTT button and
press the [SET] key to set the adjustment value.
F. Tone deviation (values set independently for 144MHz
and 430MHz)
1. Press the [ & ] and [ + ] keys to display “TONE DEV’.
The current Tone deviation setting is display on the
screen. (See the figure below.)
CALL
TONE DEV
Tia4 oan ©
4c . nin
> E
SET TSEL LOW
2. Connect the linear detector and oscilloscope to the
antenna connector. Connect a microphone to the
microphone connector.
3. When the [T.SEL] key is pressed, the tone frequency
setting mode is entered, so set a tone frequency to be
adjusted by turning the encoder.
4. The microphone PTT button is pressed to enter transmit
mode.
5. Connect the direct wave detector and power meter to the
ANT terminal, apply the prescribed A.G. input from the
MIC input terminal, and transmit.
Turn the [ENCODER] knob to adjust the direct wave
detector reading to the prescribed value.
6. When the prescried value is reached, stop transmission
and press the [SET] key to set the adjustment value.
G. DCS deviation (vatues set independently for 144MHz
and 430MHz)
1. Press the [€] and [ + ] keys to display “DCS DEV’.
The current DCS deviation setting is display on the
screen. (See the figure below.)
Gn Gad ocs H
eee DEV
144.000
*
€
>
SET
TSEL LOW
2. Connect the linear detector and oscilloscope to the
antenna connector. Connect a microphone to the
microphone connector.
3, When the [T.SEL] key is pressed, the tone frequency
setting mode is entered, so set a tone frequency to be
adjusted by turning the encoder.
4. The microphone PTT button is pressed to enter transmit
mode.
5. Connect the direct wave detector and power meter to the
ANT terminal, apply the prescribed A.G. input from the
MIC input terminal, and transmit.
Turn the [ENCODER] knob to adjust the direct wave
detector reading to the prescribed value.
6. When the prescried value is reached, stop transmission
and press the [SET] key to set the adjustment value.
Note: To end adjustment mode, switch off the power.
