10

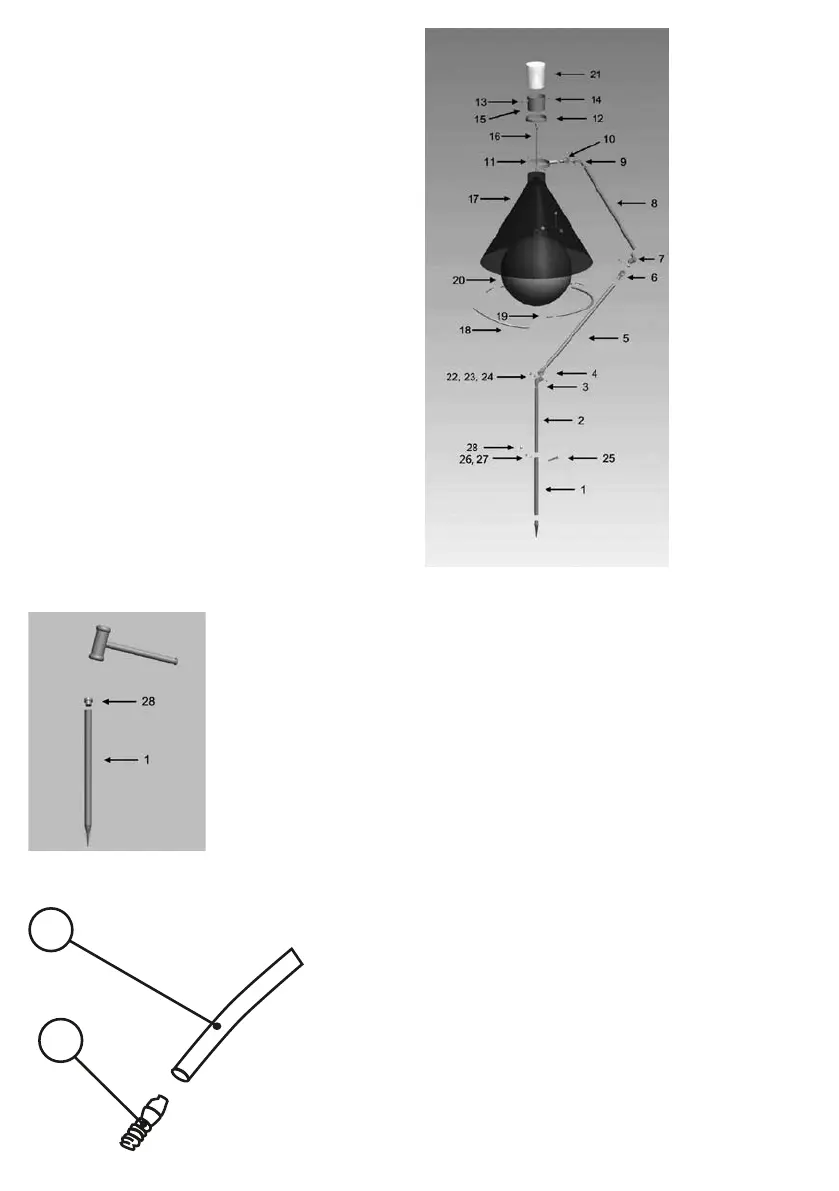

Figure 1: Exploded view
Part number Part name Quantity
1 Base pipe 1
2 Base connection pipe 1
3 Low bending hinge 1
4 Low straight hinge 1
5 Middle pipe 1
6 Middle bending hinge 1
7 Middle straight hinge 1
8 Top pipe 1
9 Top bending hinge 1
10 Top straight hinge 1
11 Bracket 1
12 Stabilising ring 1
13 M8 bolt 4
14 Holder 1
15 Hook band 1
16 Ball hook 1
17 Funnel 1
18 Reinforcement pipe 3
19 Pipe connector 3
20 Ball 1
21 Collect tray 1
22 Carriage bolt 3
23 Nut for carriage bolt 3
24 Washer for carriage bolt 3
25 Long bolt 1
26 Nut for long bolt 1
27 Spring washer 1
28 Base pipe plug 1
Figure 2: Hammer the base pipe into the ground
Figure 3: Assembly of the pipe connector onto the reinforcement pipe
18
19
