Kessel Practicus Series - Installation Suggestions

Installation suggestions
 Kessel roof drain
Practicus
Side outlet
 Odour trap
 Attachment piece
 Cover with slot design
 Pressure sealing
flange
 Seepage water
discharge

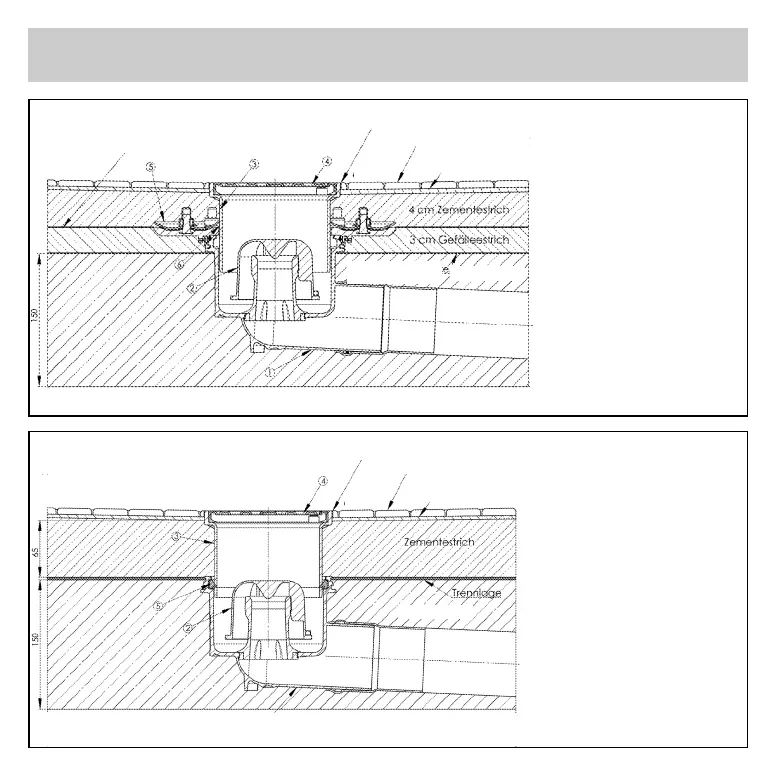

Picture shows Art.# 45170 + 48402 + 48201
 KESSEL floor drain
Practicus
Side outlet
 Odour trap
 Attachment piece
 Cover with slot design
 Lip seal (included in the
delivery contents for the
attachment piece)
Picture shows Art.# 45170 + 48201
Polyethylene
moisture barrier
Slope
1.5 cm Tiles
Concrete floor
Polyethylene
moisture membrane
Tile adhesive
Expansion joint
Slope
Slope
Slope
Expansion joint
1.5 cm Tiles
Tile adhesive
Concrete floor
