B. Speed sensor and sensor holder for Softail Evolution models up to 1996. Mount the speed

sensor swingarm on the left side of the rear tire. Install the supplied holder bracket using the

rear screw of the cover mount (see picture). Mount sensor using the lock nuts on the bracket

sothatthedistancetoallvescrewheadsofthepulleyis4mm(+/-10%).

C. Catalyst for Softail models from 2007. Plug the catalyst (L = 66 mm) into the upper manifold

with the side, that is turned off. Plug the catalyst (L = 90 mm) into the lower manifold with the

side, that is turned off. To compensate for production tolerances, it is recommended to weld the

catalyst on the manifold. For TC 103 models two catalysts (L = 90 mm) are included.

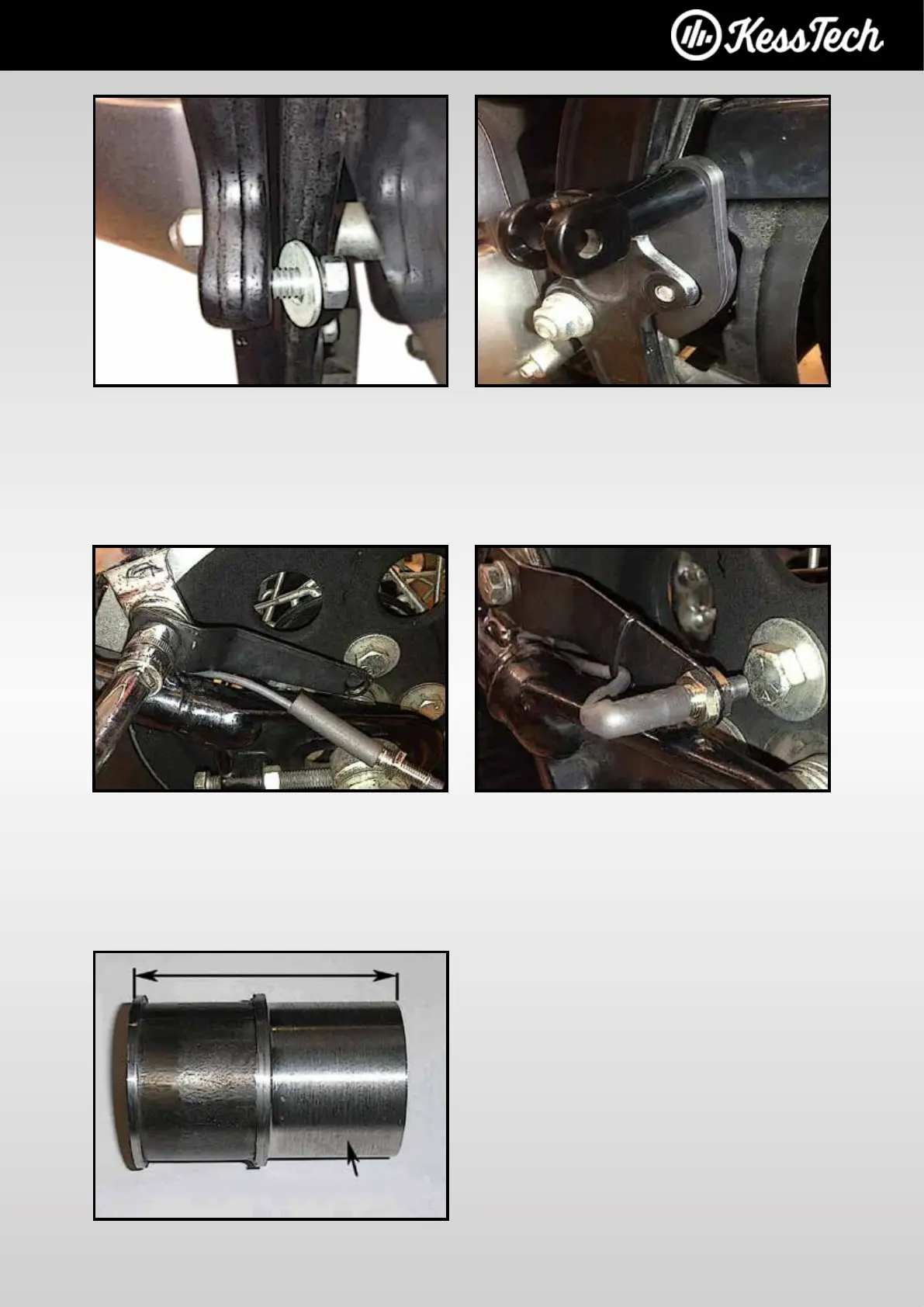

HD SOFTAIL SLIPONS ESM2 ESM3 06f

HD SOFTAIL SLIPONS ESM2 ESM3 06b HD SOFTAIL SLIPONS ESM2 ESM3 06c

HD SOFTAIL SLIPONS ESM2 ESM3 06d HD SOFTAIL SLIPONS ESM2 ESM3 06e

66mm

Leathed side into manifold/header
