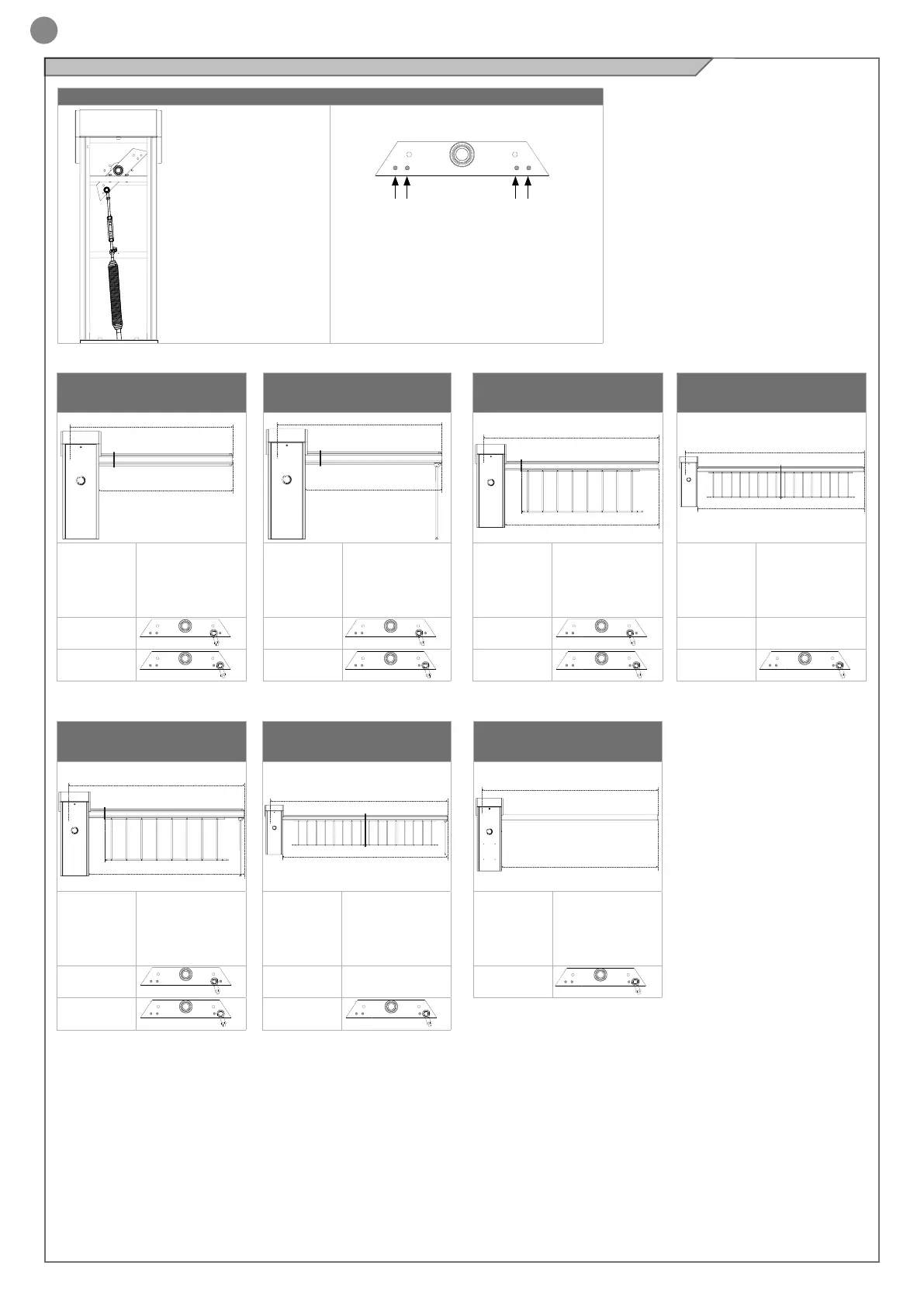

5.7 - ALT424K Accessories and bar weight balancing
ASTL5 + RUBBER PROFILE
L = BAR
LENGTH
(mm)
POSITION
5000
KEY
BAR + RUBBER PROFILE
L = BAR
LENGTH
(mm)
POSITION
3000
4000
BAR + RUBBER PROFILE +
KIT FENCE (1x)
L = BAR
LENGTH
(mm)
POSITION
3000
4000
BAR + RUBBER PROFILE +
MOBILE SUPPORT
L = BAR
LENGTH
(mm)
POSITION
3000
4000
BAR + RUBBER PROFILE +
KIT FENCE (2x)
L = BAR
LENGTH
(mm)
POSITION
3000 -
4000
L= LUNGHEZZA ASTA
PL=LUNGHEZZA PASSAGGIO (L-230 mm)
L= LUNGHEZZA ASTA
PL
L= LUNGHEZZA ASTA
PL
L= LUNGHEZZA ASTA
PL
1 2 2 1
example of spring positioning
and type:
2 = HOLE NUMBER
HOLE NUMBERS
N.B. The LED strips are always included in the balance system
BAR + KIT FENCE (2x) +
MOBILE SUPPORT
L = BAR
LENGTH
(mm)
POSITION
3000 -
4000
BAR + KIT FENCE (1x) +
MOBILE SUPPORT
L = BAR
LENGTH
(mm)
POSITION
3000
4000
L= LUNGHEZZA ASTA
PL
L= LUNGHEZZA ASTA
PL
L= LUNGHEZZA ASTA
PL
2
2
2 2
1
1
1
1
1
1 1
L=BAR LENGTH
L=BAR LENGTH
L=BAR LENGTH
L=BAR LENGTH
L=BAR LENGTH
L=BAR LENGTH
L=BAR LENGTH
PL=PASSAGE WIDTH (L-230 mm)
PL
PL
PL
PL
PL
PL
