Keychron Q1 Max - LED Status and Charging; Charging Procedure

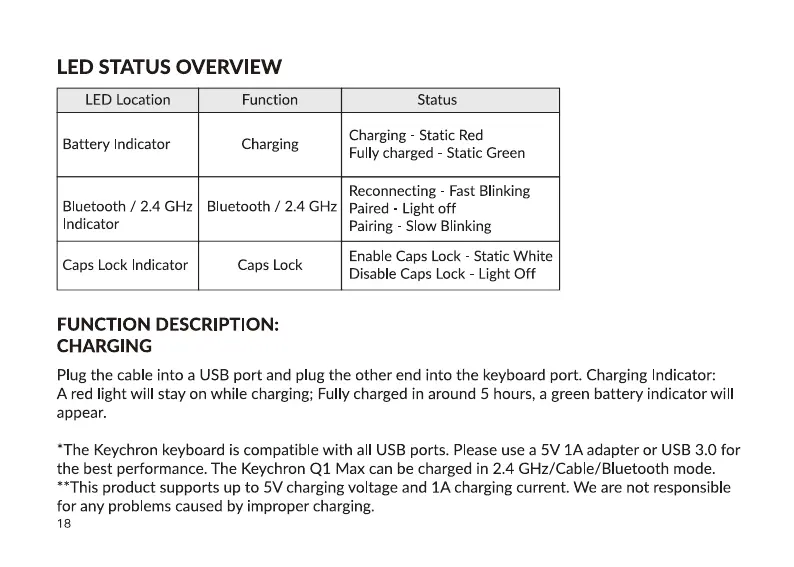

LED STATUS OVERVIEW
LED Location
Battery Indicator
Bluetooth / 2.4 GHz
Indicator
Caps Lock Indicator
Function
Charging
Bluetooth / 2.4 GHz
Caps Lock
Status
Charging - Static Red
Fully charged Static Green
Reconnecting Fast Blinking
Paired Light off
Pairing - Slow Blinking
Enable Caps Lock - Static White
Disable Caps Lock - Light Off
FUNCTION DESCRIPTION:
CHARGING
Plug the cable into a USB port and plug the other end into the keyboard port. Charging Indicator:
A red light will stay on while charging; Fully charged in around 5 hours, a green battery indicator will
appear.
*The Keychron keyboard is compatible with all USB ports. Please use a 5V IA adapter or USB 3.0 for
the best performance. The Keychron QI Max can be charged in 2.4 GHz/Cable/Bluetooth mode.
**This product supports up to 5V charging voltage and IA charging current. We are not responsible
for any problems caused by improper charging.
18
