Keysight Technologies DAQ970A - Page 23

Page 23
Find us at www.keysight.com
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz

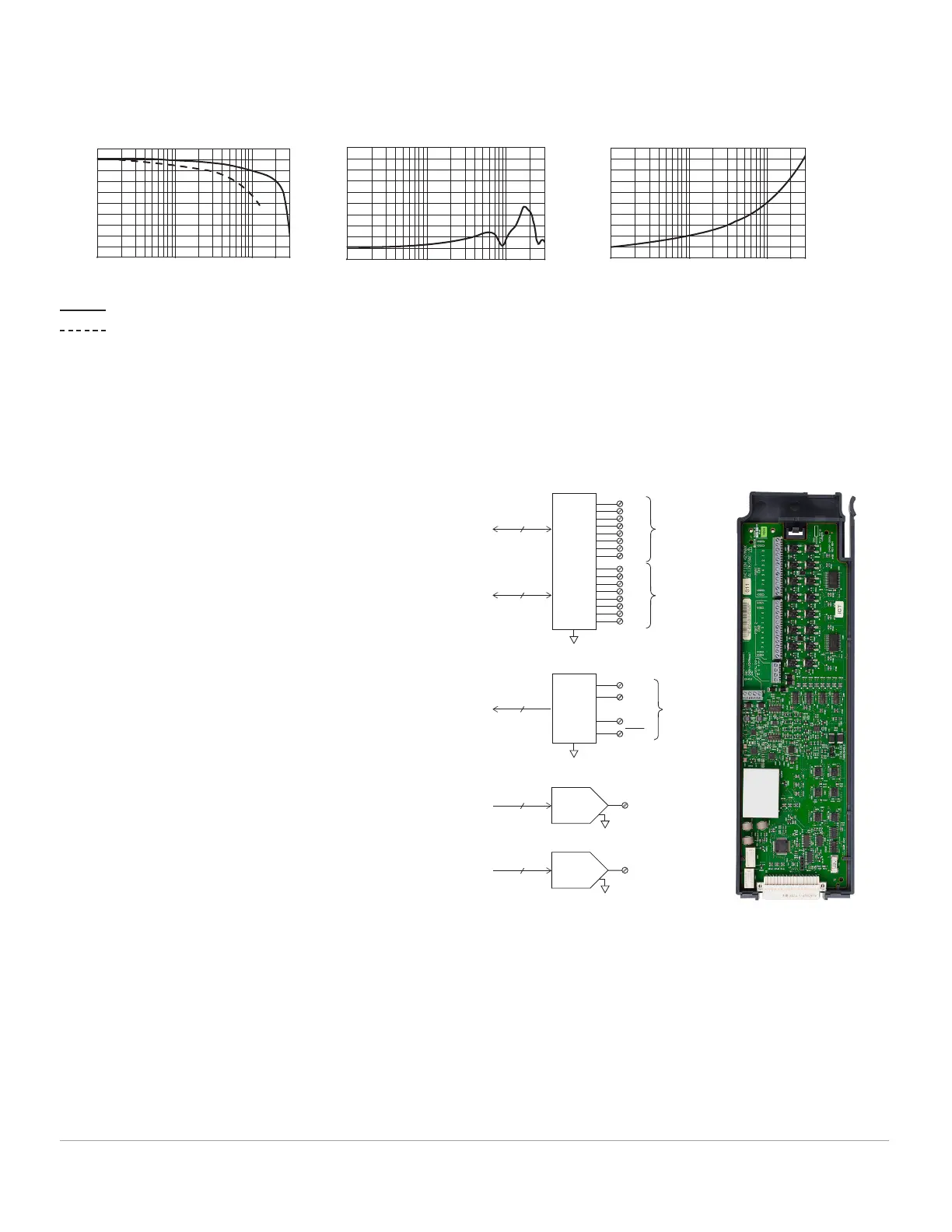

Insertionloss VSWR Crosstalk
50Ω MUXtypicalACperformancegraphs
Direct to card
Using provided adapter cables
DAQM907A
Multifunction Module
– 16 bits of digital input and output
– 100 kHz totalizer input
– Two ±12 V analog outputs or ± 24 mA outputs
The Keysight DAQM907A allows great flexibility for a variety of
sense and control applications. It combines two 8-bit ports of
digital input and output, a 100 kHz gated totalizer, and two ± 12 V
or ± 24 mA analog outputs—all on a single earth-referenced
module. The digital inputs and totalizer input may be included in
a scan. Alarm limits for the digital and event counter inputs are
evaluated continuously, capturing and logging alarm conditions
even between scans.
On top of that, it has two additional channels (Channel 6 and 7)
that provide the ability to sense output current when sourcing
voltage, or sense output voltage when sourcing current.
Port 1
Channel 01
Port 2
Channel 02
Channel 03
Channel 04
Channel 05
Bit 0
Bit 7
8
Bit 0
Bit 7
16
8
26 Bits
+IN
-IN
Gate
Gate
DIO
TOT
DAC 1
16
DAC 2
