Page 3Find us at www.keysight.com

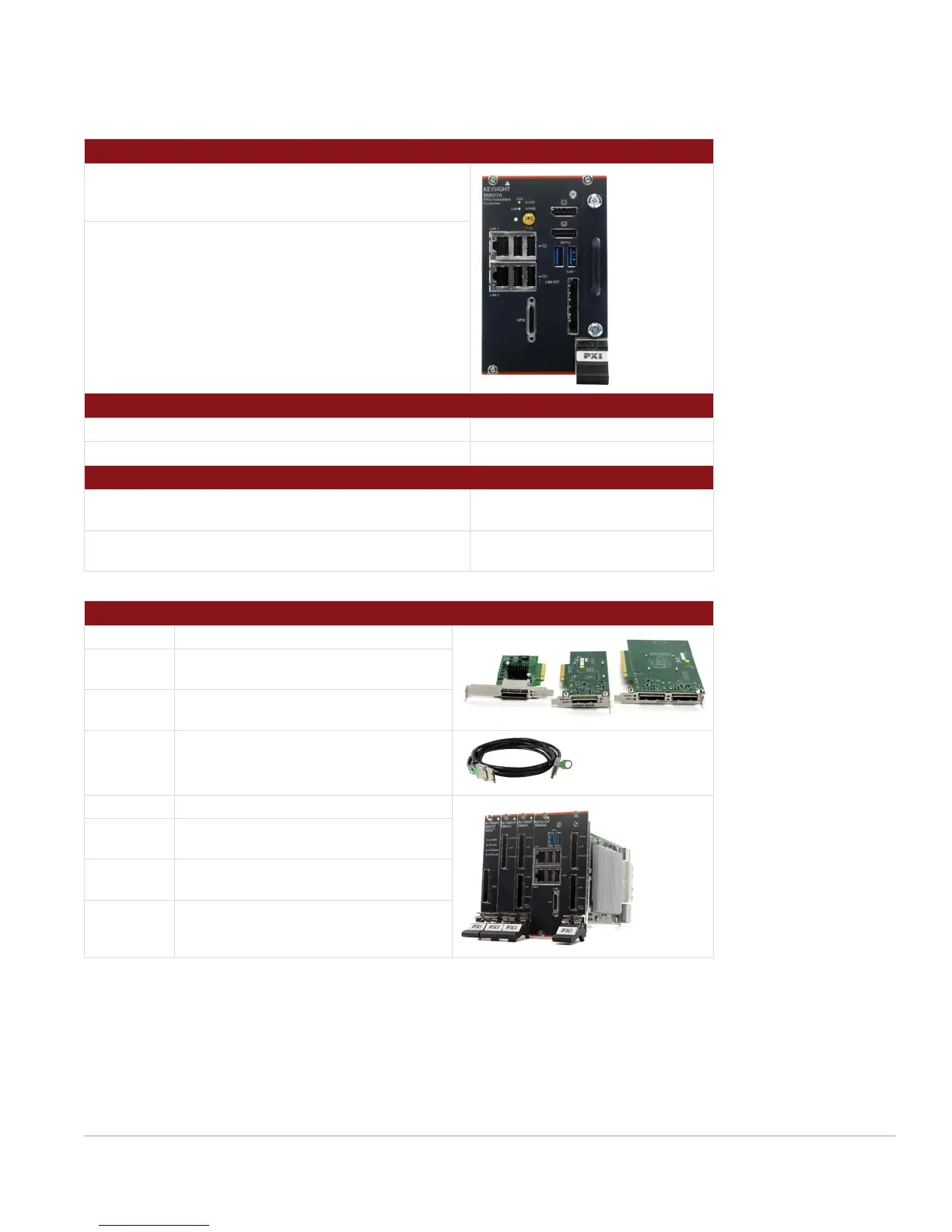

C. Select controller (Either embedded controller or via PC)
Step 1. Select embedded controller
1
M9037A-M08 High-performance embedded
controller Intel i7-4700EQ quad-core processor,
2.4 GHz, 8-thread, 8 GB RAM
Select M9037A for the best performance if you have
memory intensive applications, multiple applications
running in parallel, or if a lot of data is sent to the
PC from the PXIe chassis. Features removable SSD
drive for security and x8 connector from front for
connection to second chassis
Step 2. Upgrade from standard memory size (Optional)
M9037A-M16 Memory upgrade to 16 GB RAM
16 GB RAM is required for 5G NR measurement
Step 3. Select an operating system
M9037A-WE6
Microsoft Windows Embedded
Standard 7 (64-bit)
M9037A-W16
Microsoft Windows 10 IoT
Enterprise LTSB (64-bit)
To use your desktop PC as a controller
2, 3
M9048A PCIe Host Adapter: Gen 2, x8
M9048B
PCIe Host Adapter: Single Port (x8),
Gen 3
M9049A
PCIe Host Adapter: Dual Port (x16),
Gen 3
Y1202A PCIe cable
M9021A
4
PCIe Cable Interface: Gen 2, x8
M9022A
PXIe System Module: Single Port
(x8), Gen 3
M9023A
PXIe System Module: Dual Port
(x16), Gen 3
M9024A
PXIe System Module with
Connectivity Expansion: Dual Port
(x16) Gen 3
1. The M9018B or M9019A 18-slot chassis includes empty space to the left of the 1
st
functional slot.
The embedded controller occupies that empty space and the 1
st
functional slot.
2. For list of qualified external controllers, please see Test Computer List Technical Note literature
no. 5990-7632EN.
3. For more detailed chassis configuration information including multi-chassis, see Interface Modules
and Adapters for PXIe and AXIe Systems literature no. 5992-0377EN.
4. The M9021A can only be used with the Keysight M9018B.
