Installation Note N9020-90257 13
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
RF Bracket
Removal

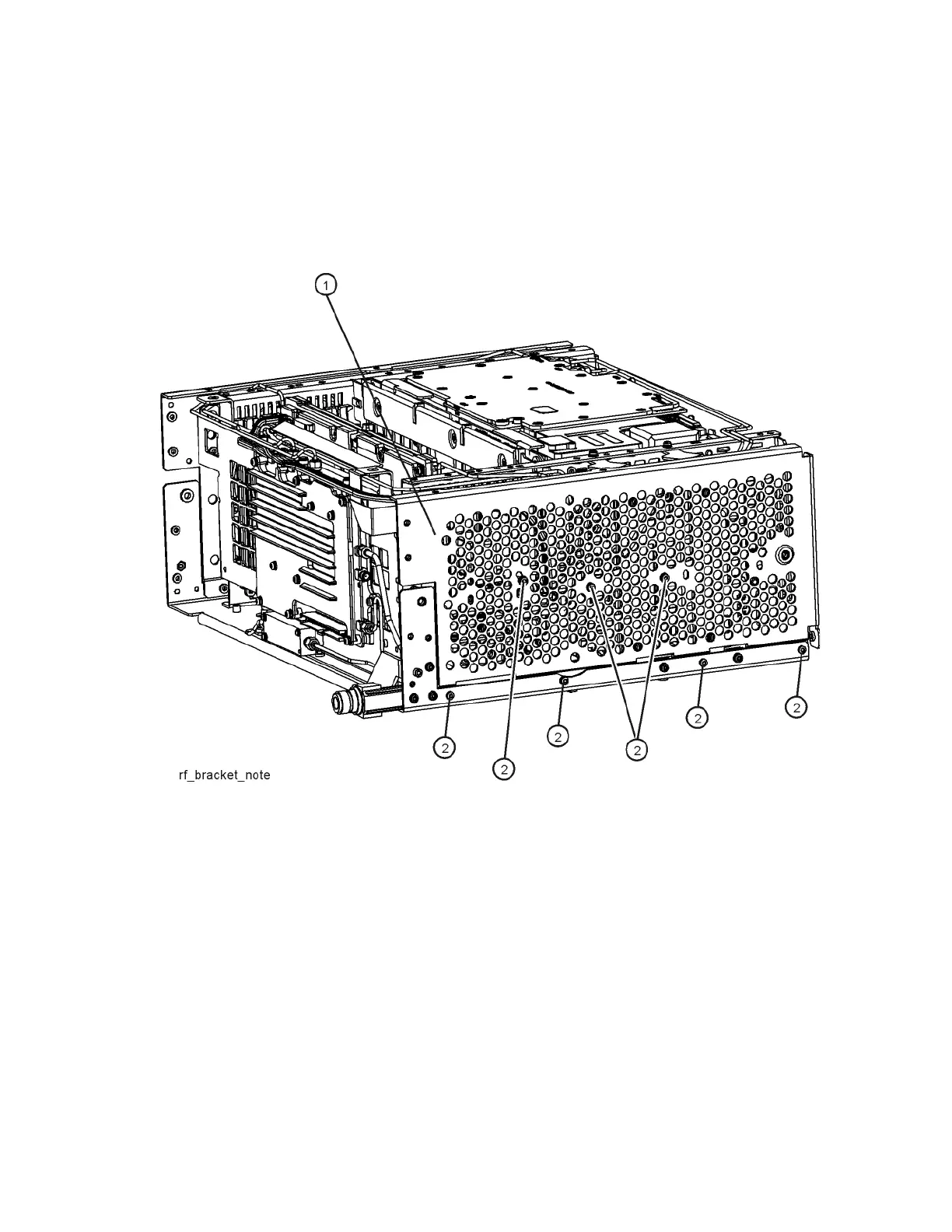

1. Refer to Figure 7. Remove the RF bracket (1 ) by removing the remaining seven screws (2)
using the T-10 driver.
Figure 7 RF Bracket Removal
