Keysight U1610A User Guide

Using the Oscilloscope 3
Keysight U1610/20A User’s Guide 59
Edge
Press > and use the or key to set the edge count
from 1 to 65535.
Level
See “Level” on page 55.

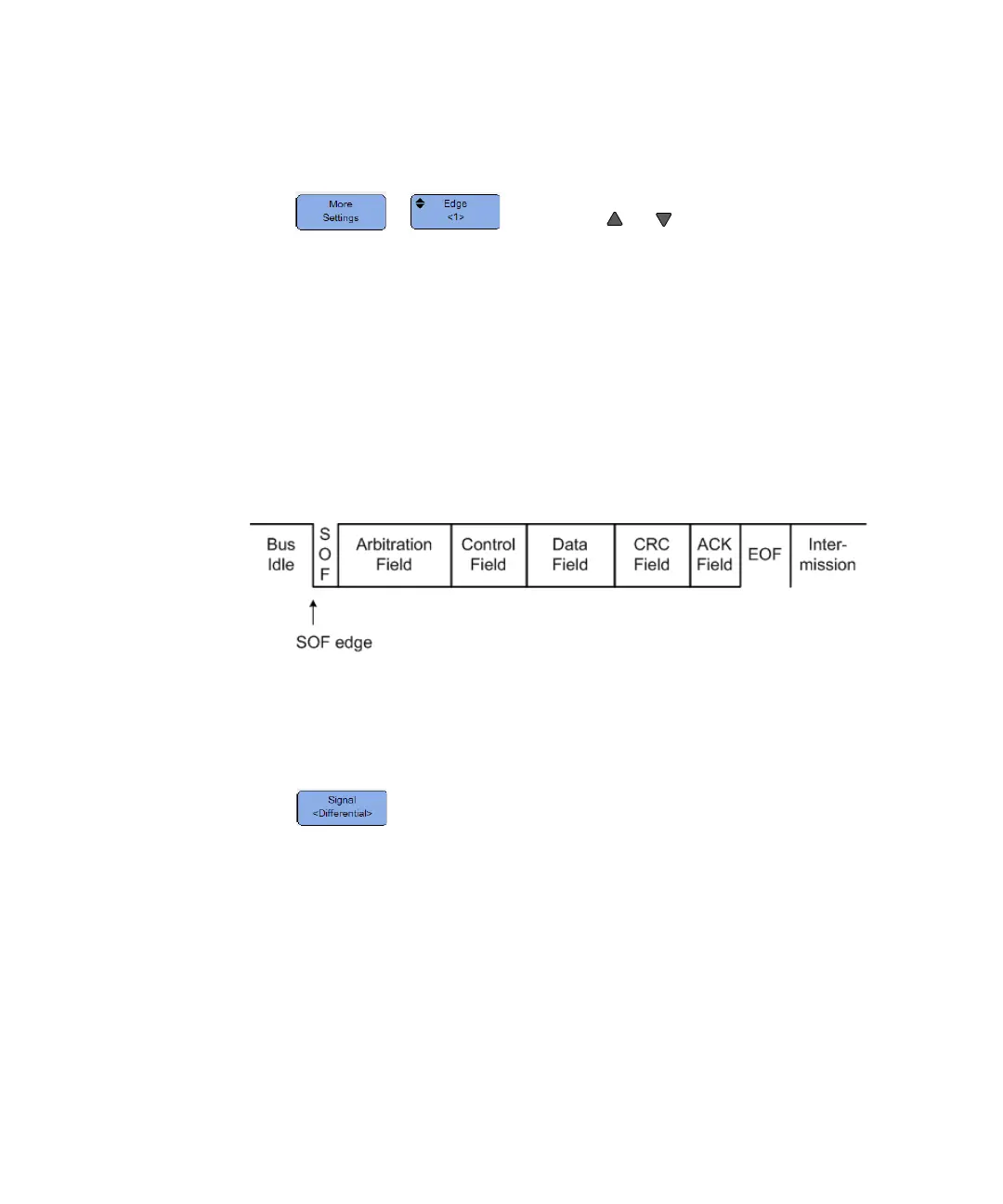

CAN trigger
The Controller Area Network (CAN) trigger allows triggering on CAN version 2.0A
and 2.0B signals. The basic CAN trigger will trigger on the Start of Frame (SOF)
bit of a Data frame. A CAN message frame in the CAN_L signal type is shown
below:
Source
See “Source” on page 55.
Signal
Press repeatedly to set the type and polarity of the CAN signal. This
also automatically sets the channel label for the source channel that can be
connected as follows:
– CAN_H – actual CAN_H differential bus signal.
Dominant low signals:
– CAN_L – actual CAN_L differential bus signal.
– Rx – Receive signal from the CAN bus transceiver.
– Tx – Transmit signal from the CAN bus transceiver.
– Differential – CAN differential bus signals connected to an analog source
channel using a differential probe.
