10 Monitor Spectrum Measurement
Trace/ Detector
Trace/ Detector
Displays a menu of keys that enable you to control the trace setting for the Spectrum Window.
The traces in the Spectrum display contain 2001 points.
For more information see:
"Trace Annunciator Panel" on page 866
Key Path
Front-panel key
Remote Command
:TRACe[1]|2|3:MONitor:TYPE WRITe|AVERage|MAXHold|MINHold
:TRACe[1]|2|3:MONitor:TYPE?
Notes WRITe = Clear Write
AVERage = Trace Average
MAXHold = Maximum Hold
MINHold = Minimum Hold
Couplings Selecting a trace type (pressing any of the four keys or sending a TRAC:TYPE command) puts Update
in On and Display in On, even if that trace type was already selected.
Preset WRITe
State Saved The type of each trace is saved in Instrument State
Initial S/W Revision Prior to A.13.00

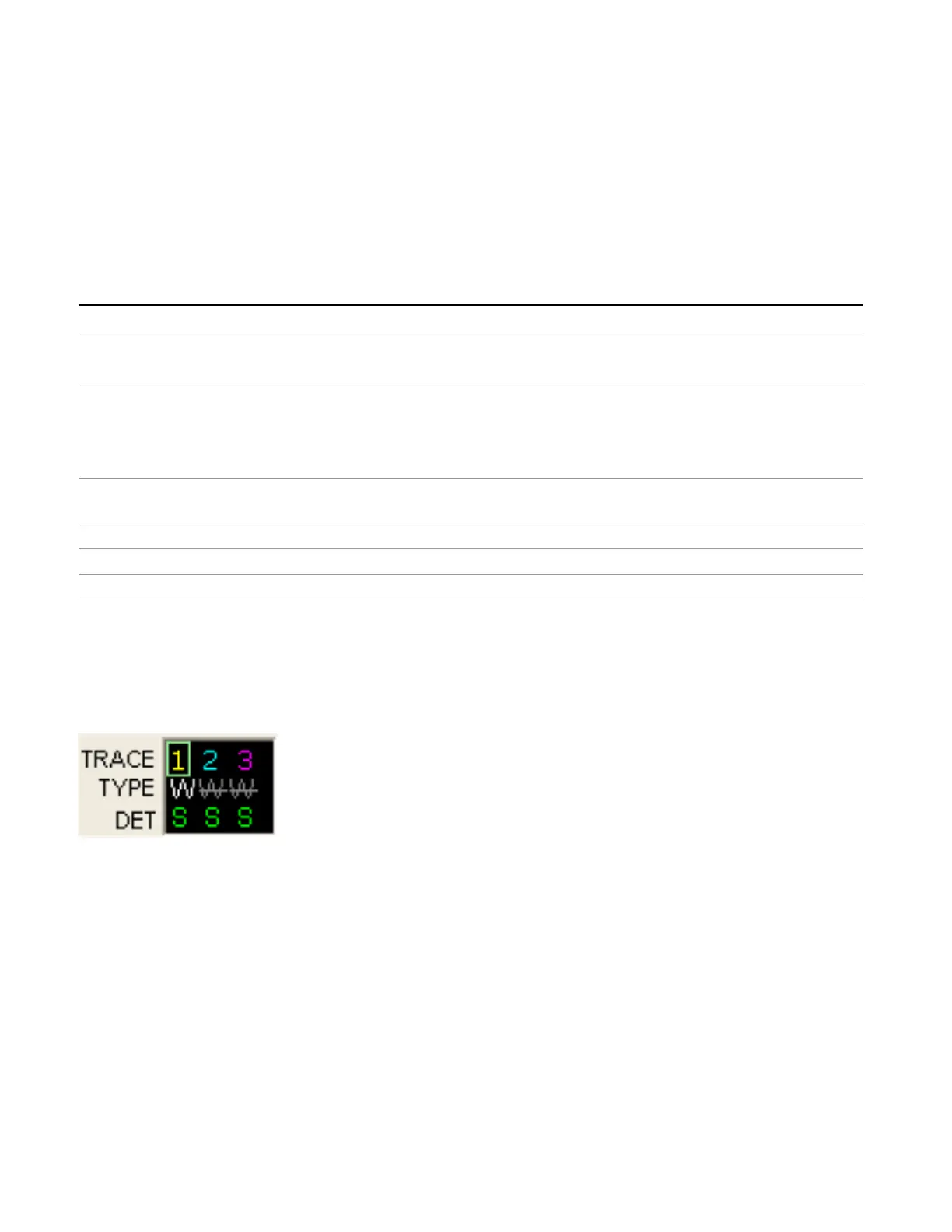

Trace Annunciator Panel
The trace annunciator panel appears on the right hand side of the Meas Bar. Here is an explanation of the
fields in this panel:
On the line labeled TRACE”, each trace number is shown, in the trace color. A green box is drawn around
the currently selected trace
Below each trace number, on the line labeled TYPE”, is a letter signifying the trace type for that trace
number, where
W=Clear Write
A=Trace Average
M=Max Hold
m=Min Hold
