KFD ECO MAX 14 - Page 6

„Installation and operation manual for fireplace insert”
6

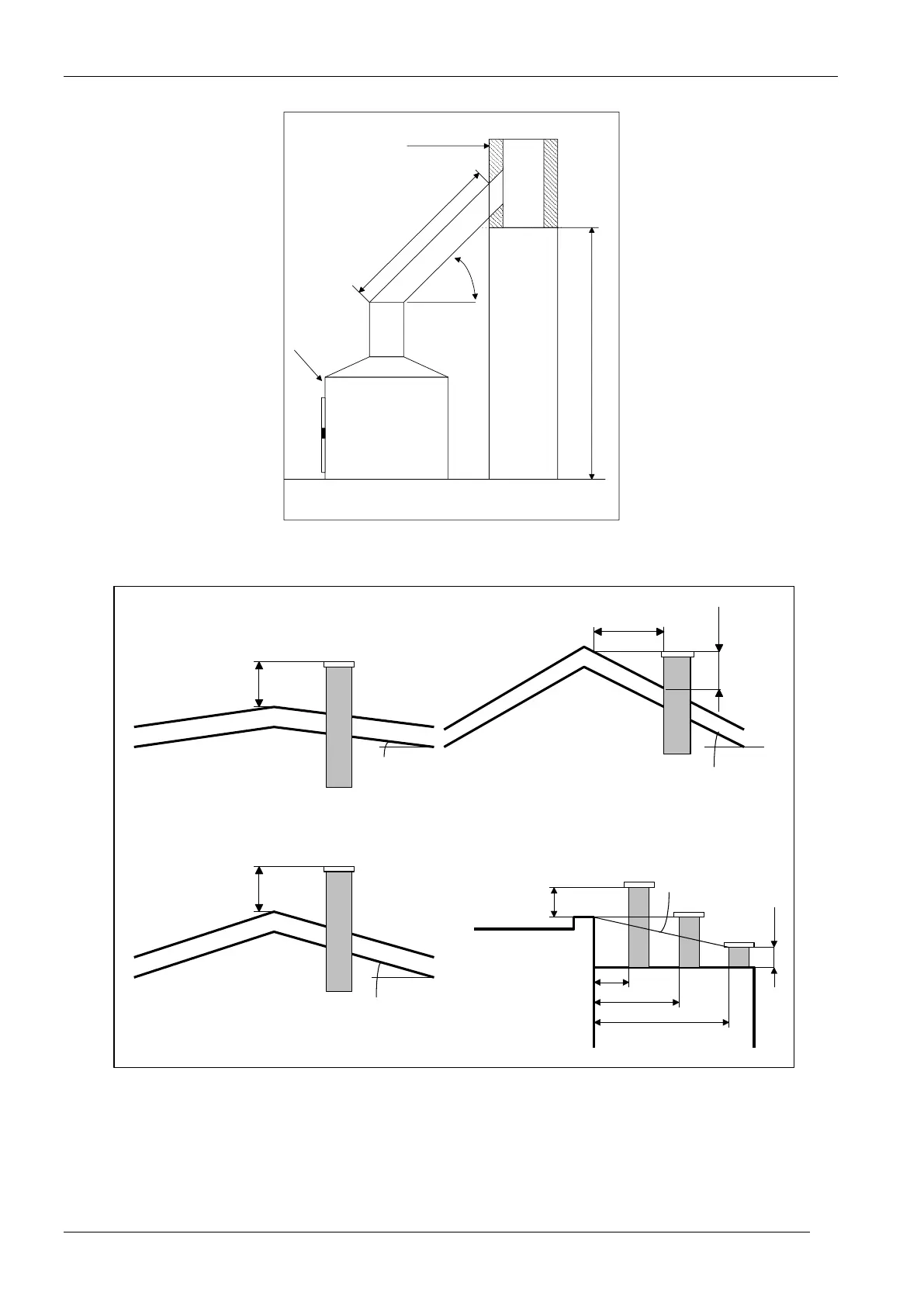

Figure 3. Correct connection of the insert to the chimney.
Figure 4. Required chimney heights according to the norm PN-89/B-10425: a) flat roof
covered with any material, b) steep roof with easily ignitable covering, c) steep roof with
non-ignitable, incombustible and flash resistant covering, d) situation of the chimney
nearby another building.
45
o
maksimum 2 m
Fasada
wkładu
Przewód dymowy
~1,8 m
>=0,6 m
<=12
o
>=0,6 m
>12
o
>=0,3m
>12
o
>= 1m
>3m
<=3m
<=1,5m
>=0,3m
>=0,3m
12
o
a)
b)
c)
d)
Chimney
Façade of
the insert
Maximum 2m
