Maintenance
427
Front windshield wiper blade
Type A

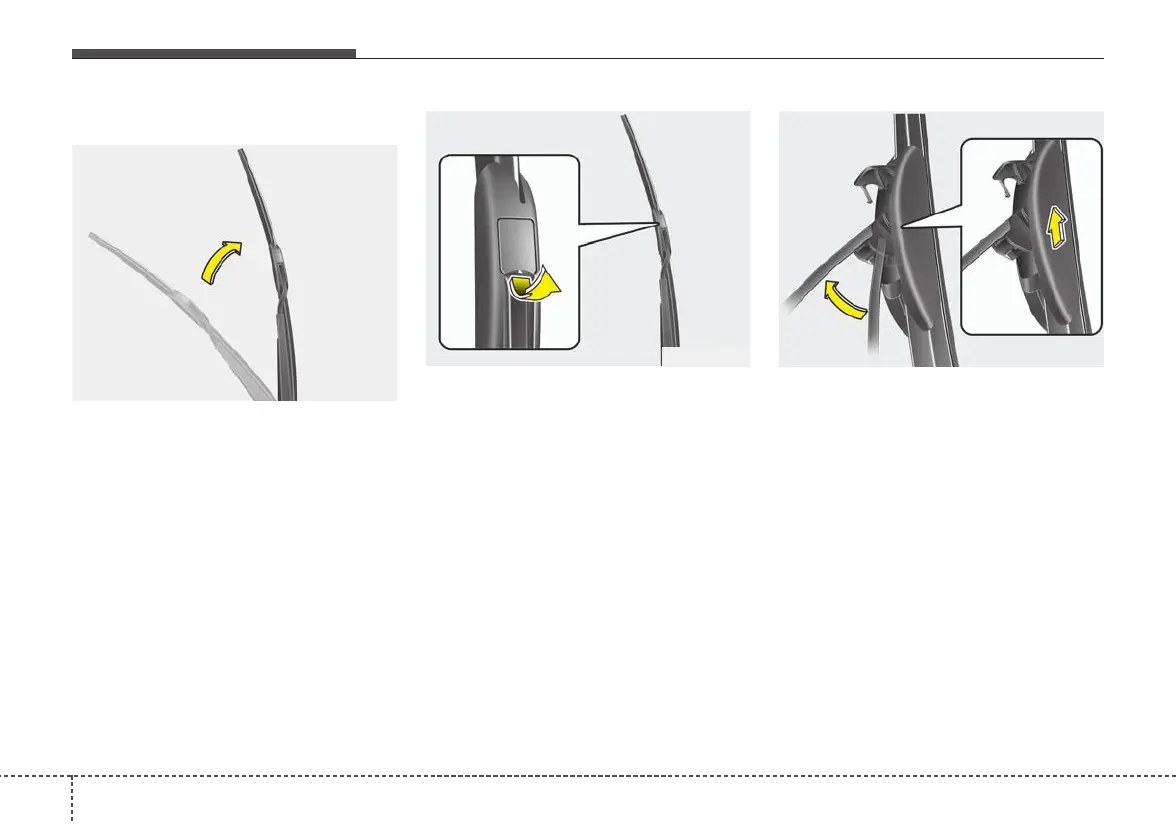

1. Raise the wiper arm and turn the
wiper blade assembly to expose
the plastic locking clip.
✽✽
NOTICE
Do not allow the wiper arm to fall
against the windshield
2. Open the cover of the blade.
3. Compress the clip behind the
wiper arm and lift it off the arm.
4. Install the blade assembly until it
clicks into place
5. Close the cover of blade.
6. Return the wiper arm to the prop-
er position.
OED070112
OED070113
OED070114
