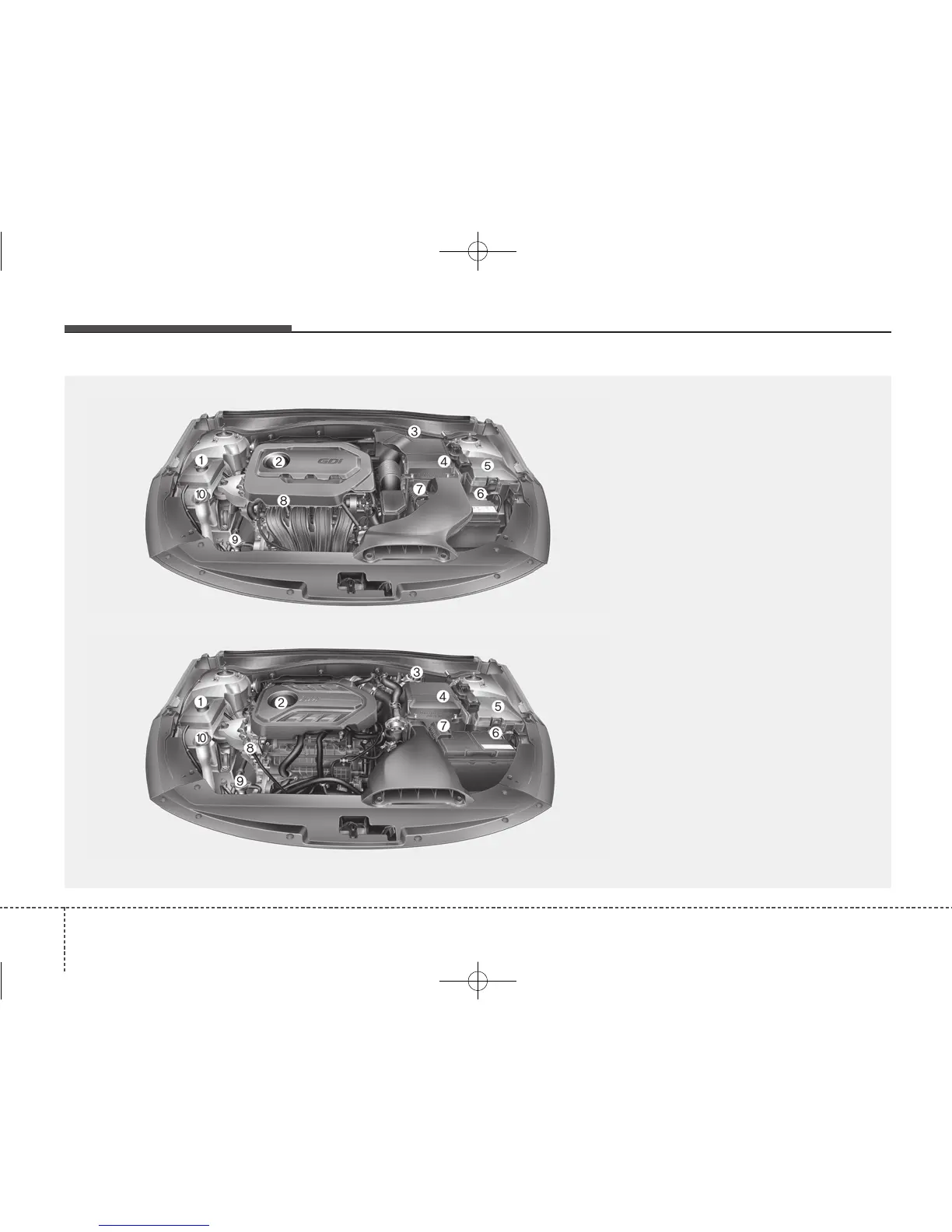

ENGINE COMPARTMENT
OJFA075001/OJF075001L
■■
THETA 2.4L - GDI
❈ The actual engine compartment in the vehicle may differ from the illustration.
■■
THETA 2.0L T-GDI
1. Engine coolant reservoir...................8-30
2. Engine oil filler cap ...........................8-28
3. Brake/clutch fluid reservoir
(if equipped)......................................8-32
4. Air cleaner.........................................8-35
5. Fuse box...........................................8-61
6. Negative battery terminal..................8-43
7. Positive battery terminal ...................8-43
8. Engine oil dipstick.............................8-27
9. Radiator cap .....................................8-31
10.Windshield washer fluid reservoir....8-33
