5. Insert a new bulb in the socket.
6. Reassemble the socket and the
lens part.
7. Connect the bulb electrical con-
nector.
8. Reinstall the lamp assembly to the
body of the vehicle.
Stop and tail lamp (Bulb type)
bulb replacement (Rear combi-
nation lamp Type A, B)
1. Open the trunk lid.
2. Open the service cover.
3. Remove the nuts from the vehicle.
4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.

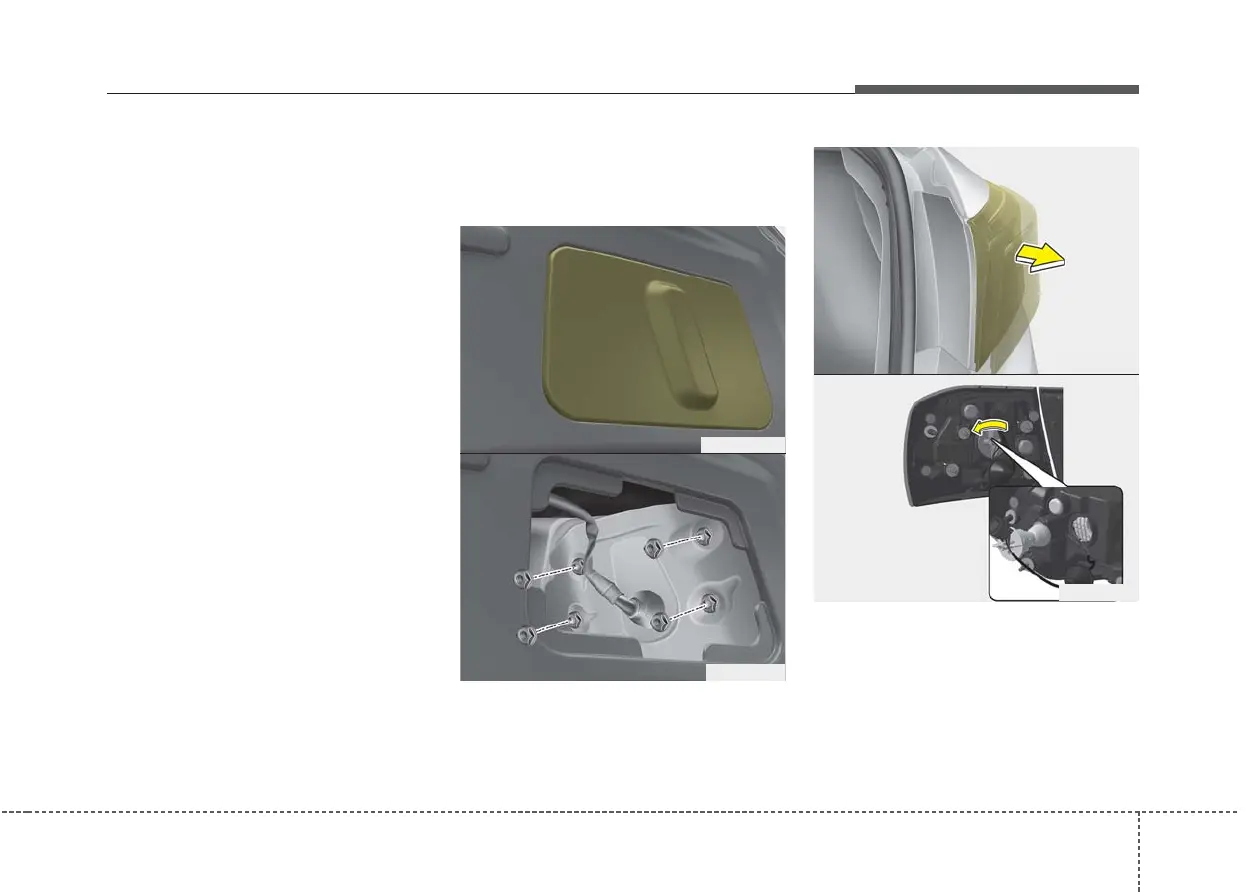

OBD078045
