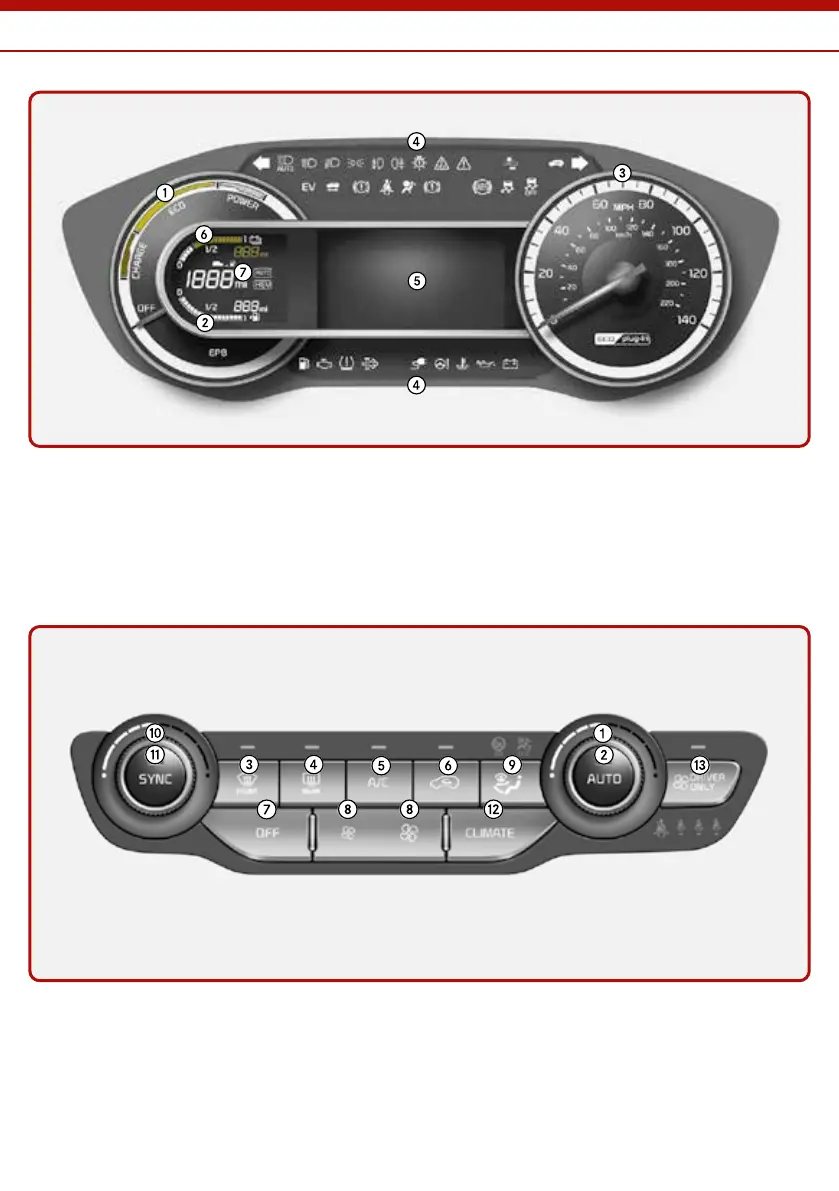

Instrument Cluster / Climate Control System
a Hybrid system gauge
b Fuel gauge
c Speedometer
d Warning and indicator lights
e LCD display
f Battery SOC (State of
Charge) gauge
g Distance to empty
a Driver’s temperature control
b AUTO (automatic control)
c Front windscreen defroster
d Rear window defroster
e Air conditioning
f Air intake control
g OFF
h Fan speed control
i Mode selection
j Passenger’s temperature
control
k SYNC temperature control
l Climate button
m Driver only select button
Instrument cluster for Plug-in Hybrid [4]
Automatic climate control system [4]
