Your vehicle at a glance Engine compartment

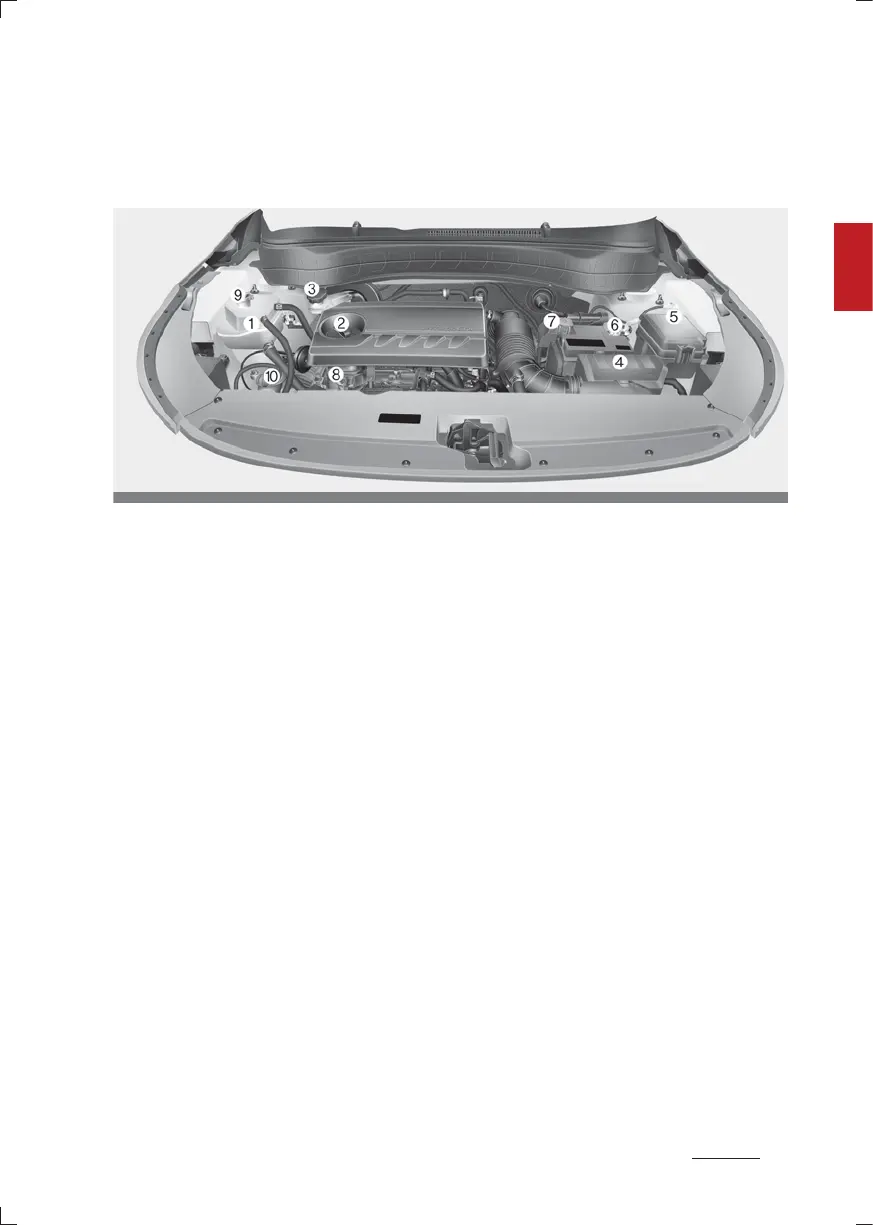

Engine compartment
Petrol Engine (Kappa 1.4 T-GDI)
)
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 8-26
2. Engine oil filler cap 8-22
3. Brake/clutch fluid reservoir 8-29
4. Air cleaner 8-33
5. Fuse box 8-60
6. Negative battery terminal 7-6, 8-39
7. Positive battery terminal 7-6, 8-39
8. Engine oil dipstick 8-22
9. Radiator cap 7-9, 8-26
10.Windshield washer fluid reservoir 8-31
