Maintenance Engine compartment
Maintenance

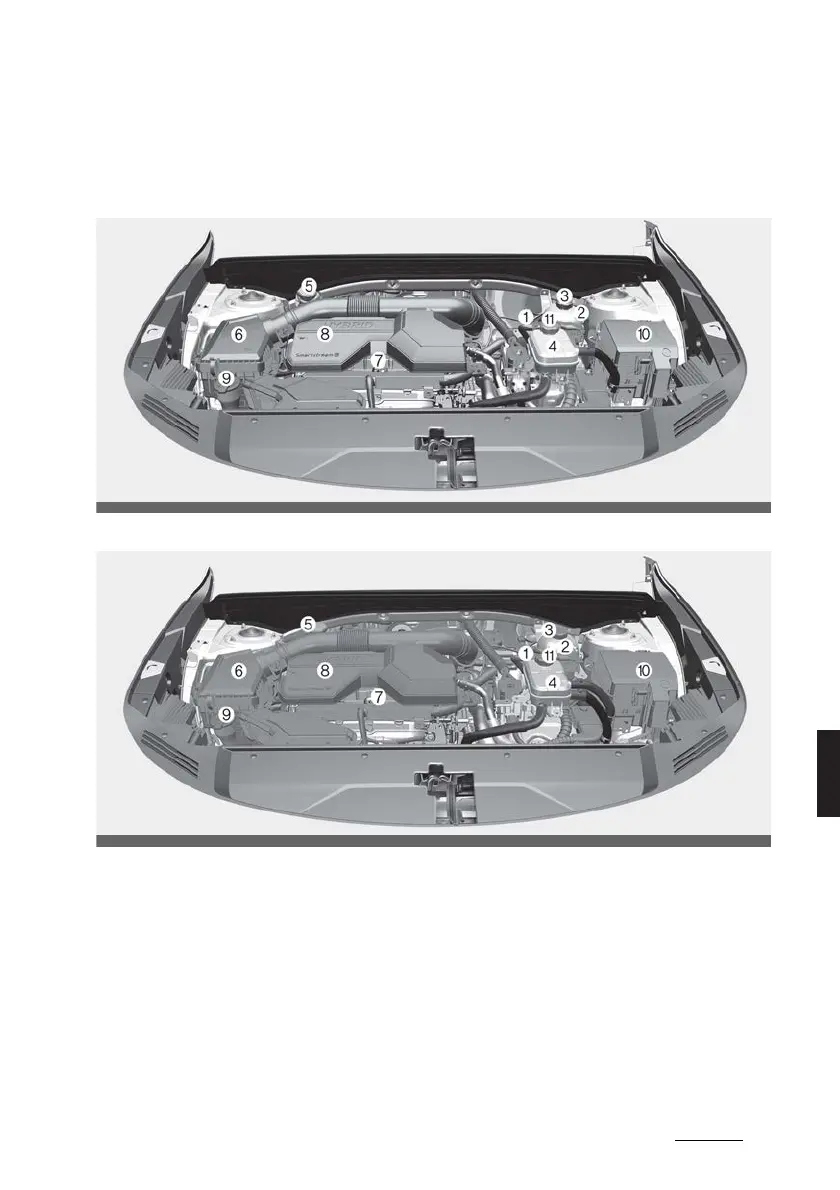

Engine compartment
Smartstream G1.6 T-GDi HEV
Smartstream G1.6 T-GDi PHEV
* The actual engine room in the vehicle may differ from the illustration.
1
Electronic Control Unit (ECU)
2
Engine coolant reservoir
3
Engine coolant reservoir cap
4
Inverter coolant reservoir
5
Brake fluid reservoir
6
Air cleaner
7
Engine oil dipstick
8
Engine oil filler cap
9
Windscreen washer fluid reservoir
10
Fuse box
11
Inverter coolant reservoir cap
