Kicker 48KSS269 - Secure Speaker

EOP2021-CS9 REV-A.3
48KSS269 Installation Guide
Page 4 of 13

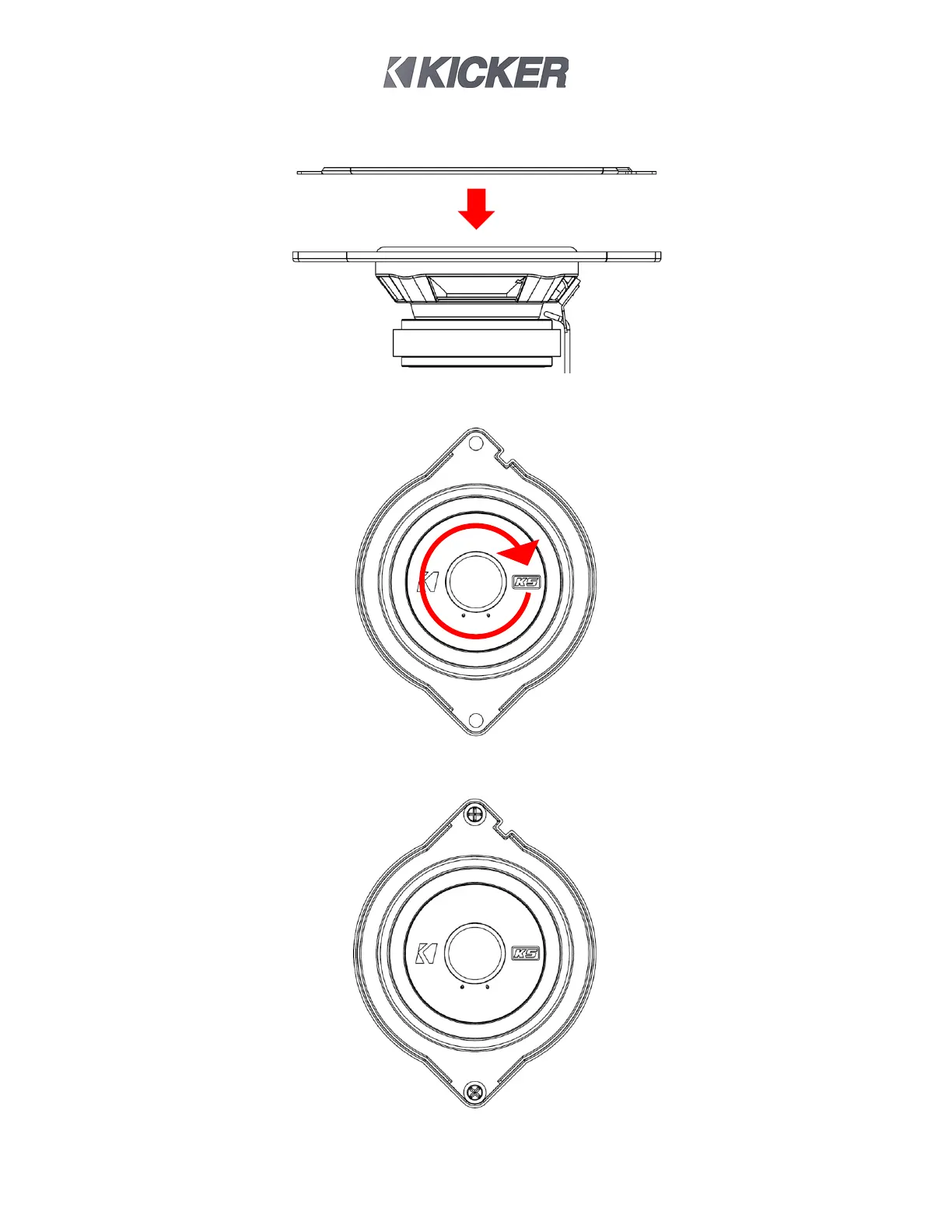

4. Place retainer on top of speaker and inside the flange. If black adhesive is used, press
retainer into adhesive on the flange.
5. Rotate speaker to desired orientation in the flange.
6. Fasten speaker to mounting location using the factory hardware or supplied screws.
