Kicker 8L7 - Page 24

8L7
10L7
12L7
15L7
13 3/4”
(34,9cm)
11 1/16”
(28,1cm)
9 5/16”
(23,7cm)
7 1/4”
(18,4cm)
13 3/4”
(34,9cm)
11 1/16”
(28,1cm)
9 5/16”
(23,7cm)
7 1/4”
(18,4cm)

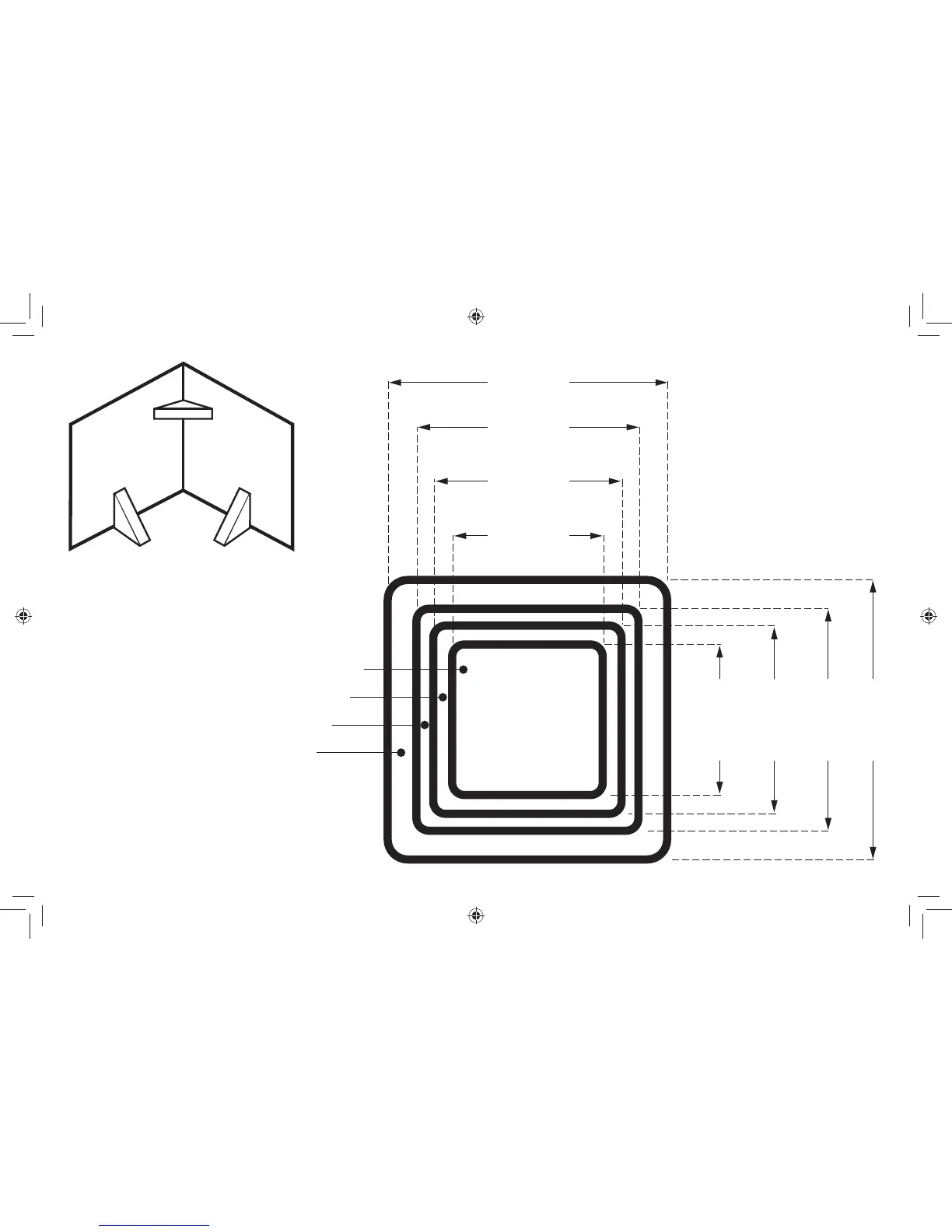

Abbildung 1
Abmessungen des Ausschnitts
Eckenrundung:
8L7 - 1,5” (38,1mm)
10L7 - 1,5” (38,1mm)
12L7 - 1,75” (44,5mm)
15L7 - 1,7” (43,2mm)
D
D
D
Abbildung 2
D = 3” x 3” für 12L7, 15L7
D = 2” x 2” für 8L7, 10L7
