Kicker 8L7 - Page 8

8L7
10L7
12L7
15L7
13 3/4”
(34.9 cm)
11 1/16”
(28.1 cm)
9 5/16”
(23.7 cm)
7 1/4”
(18.4 cm)
13 3/4”
(34.9 cm)
11 1/16”
(28.1 cm)
9 5/16”
(23.7 cm)
7 1/4”
(18.4 cm)

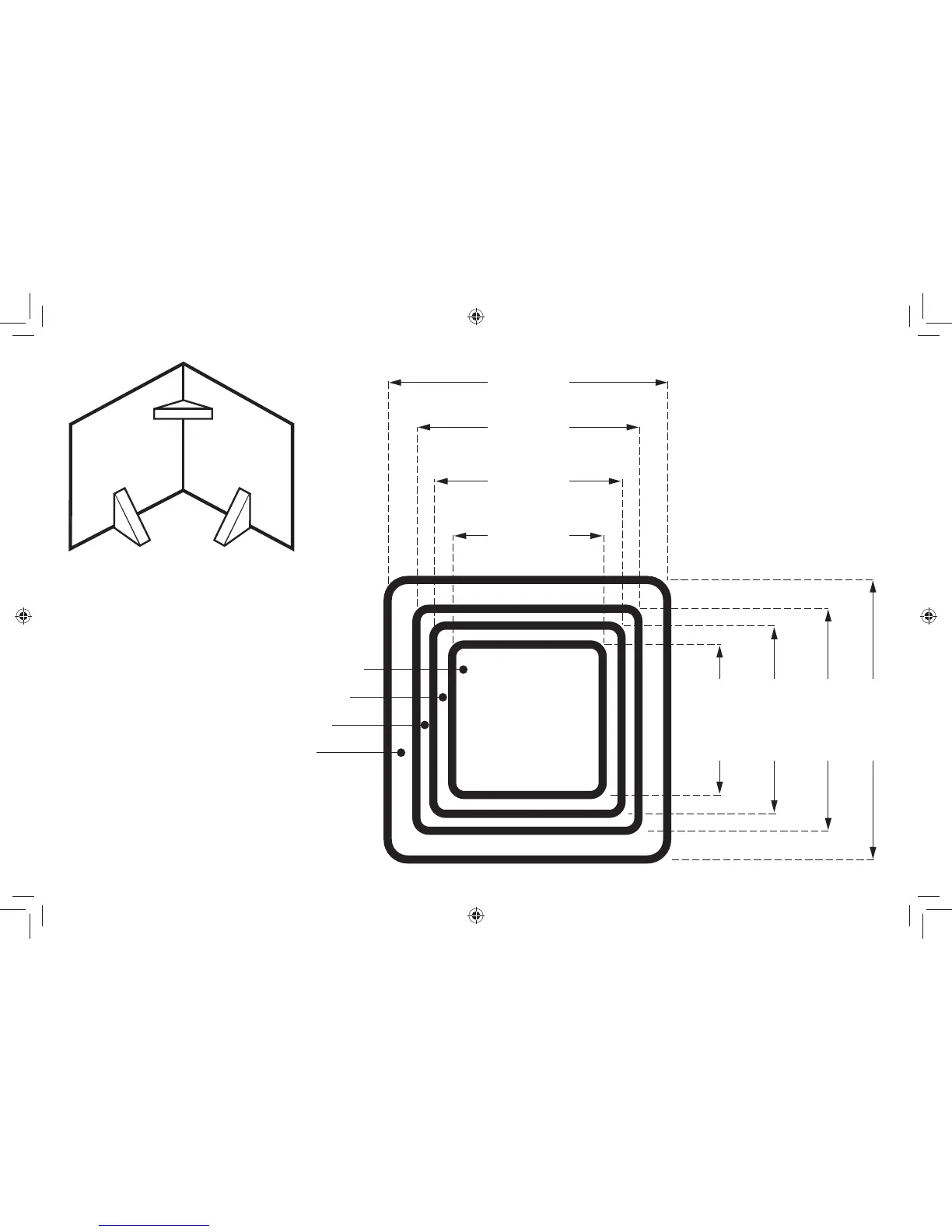

Figure 1
Cutout Dimensions
Corner Radius:
8L7 - 1.5” (38.1mm)
10L7 - 1.5” (38.1mm)
12L7 - 1.75” (44.5mm)
15L7 - 1.7” (43.2mm)
D
D
D
Figure 2
D = 3” x 3” for 12L7, 15L7
D = 2” x 2” for 8L7, 10L7
