45°
Wedge
Round Over
Inner Corner
Front
Top

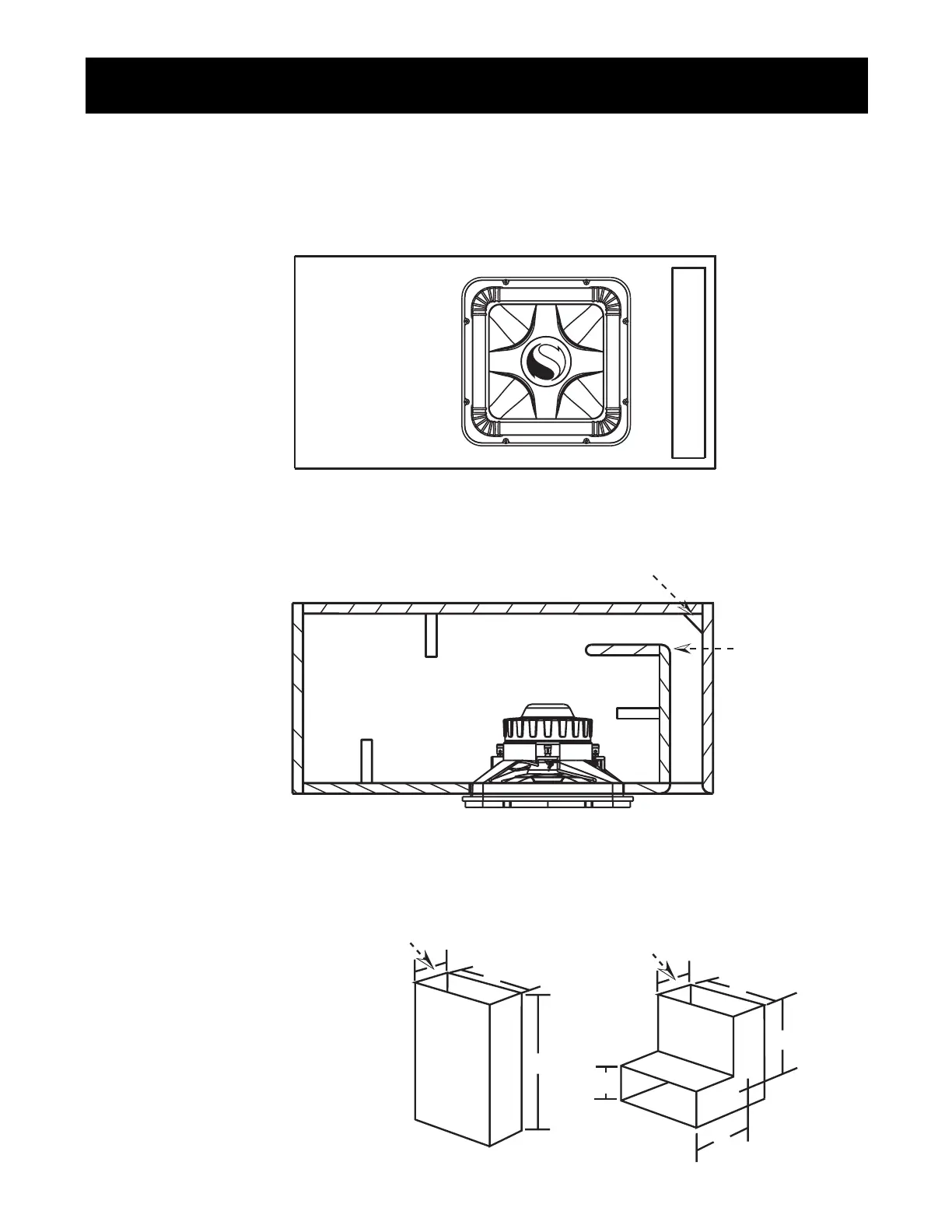

Box Building & Mounting Hints
If you would like to use a vented enclosure, but the box designs we provide you with (in this manual) do
not fit because of width or depth, the designs can be modified. The shape of the enclosure is not vital, but
The Volume Is
.
The volume, of the design you choose, must stay the same. The following diagrams pro-
vide you with some help to insure your enclosure is built correctly.
Remember:
If you are going to bend the port at 90°° you will need to add 1/2 of the ports height to the length!! See BBelow..
20"
3"
L 2
L 1
3"
10"
10"
3"
Fig. 1 Fig. 2
Example:
(Fig. 1)
H
port = 3”
W
port
= 10”
L
port = 20”
(Fig. 2)
Since
H
port
is 3” you need to add
1.5”( 1/2 of
H
port) to
L
port. This
means that
L
1 +
L
2 = 21.5”
Always measure
L
1 and
L
2 down
the center to get an accurate
measurement!
Kicker Technical Tips
Page 21
Vol. 1
