Kicker Comp Woofer User Manual

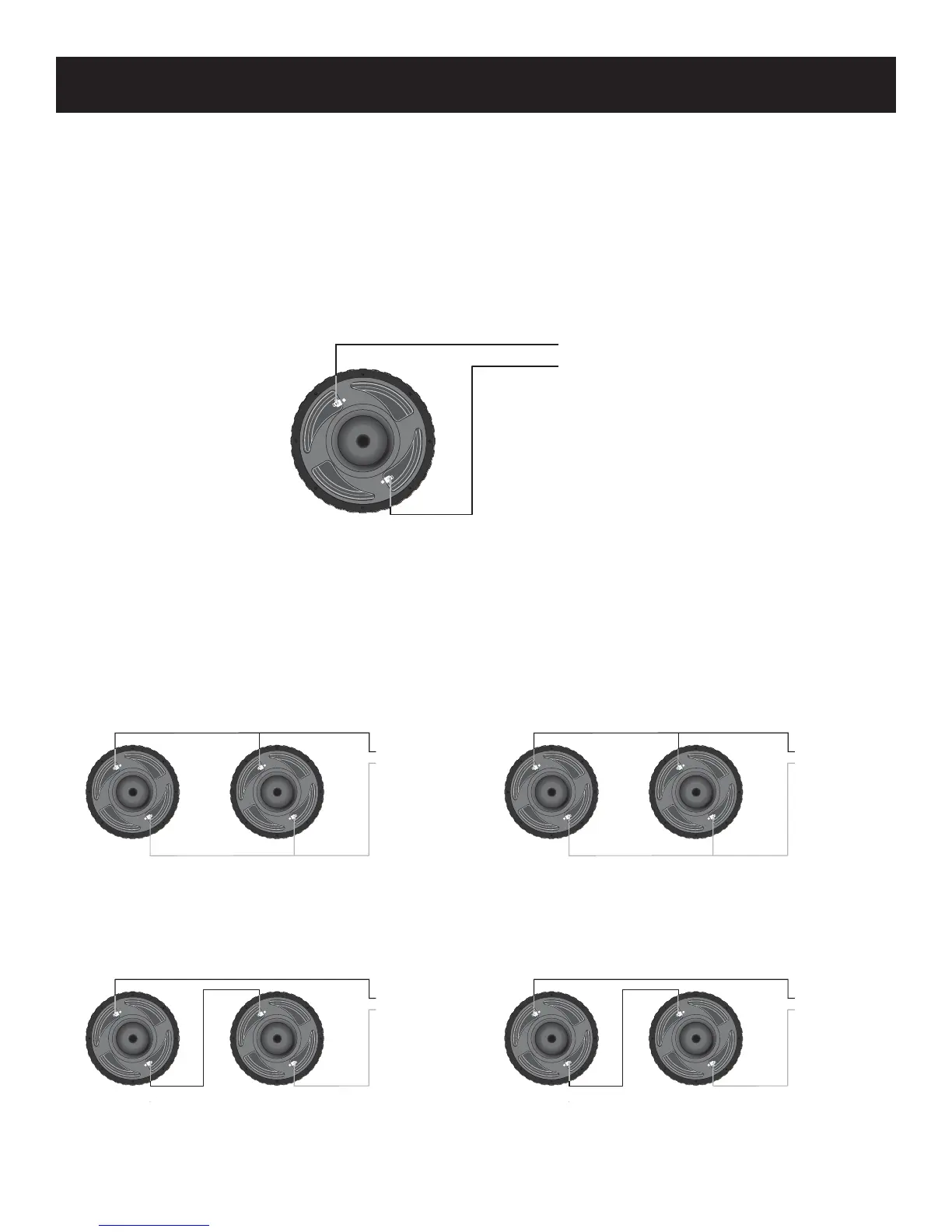

Wiring Options
WOOFERS WIRED IN PARALLEL
4 4 = 2 OHM
To
Amplifier
+
-
4 4 = 8 OHM
To
Amplifier
Red +
Red +
+
-
Red +
Red +
Black - Black -
WOOFERS WIRED IN SERIES
Black - Black -
WOOFERS WIRED IN PARALLEL
8 8 = 4 OHM
To
Amplifier
+
-
8 8 = 16 OHM
To
Amplifier
Red +
Red +
+
-
Red +
Red +
Black - Black -
WOOFERS WIRED IN SERIES
To
Amplifier
+
-
Red +
Black -
SINGLE WOOFER WIRING
The following diagrams are the most popular wiring configurations. They show a typical single channel wiring
scheme. Check the amplifier’s owners manual for minimum impedance the amplifier will handle before hooking up
the speakers. Remember: 4 Ohm mono is equivalent to 2 Ohm stereo.
Kicker Comp Subwoofers
Recommended Applications / Version 2.0
Page 17
