6
+
-
+
-
IN
-MID+
IN
-TW+
-
OUT
+
MID
OUT
+
TW
-
-MID+
CH2
LEFT OUTPUT
-TW+
CH1

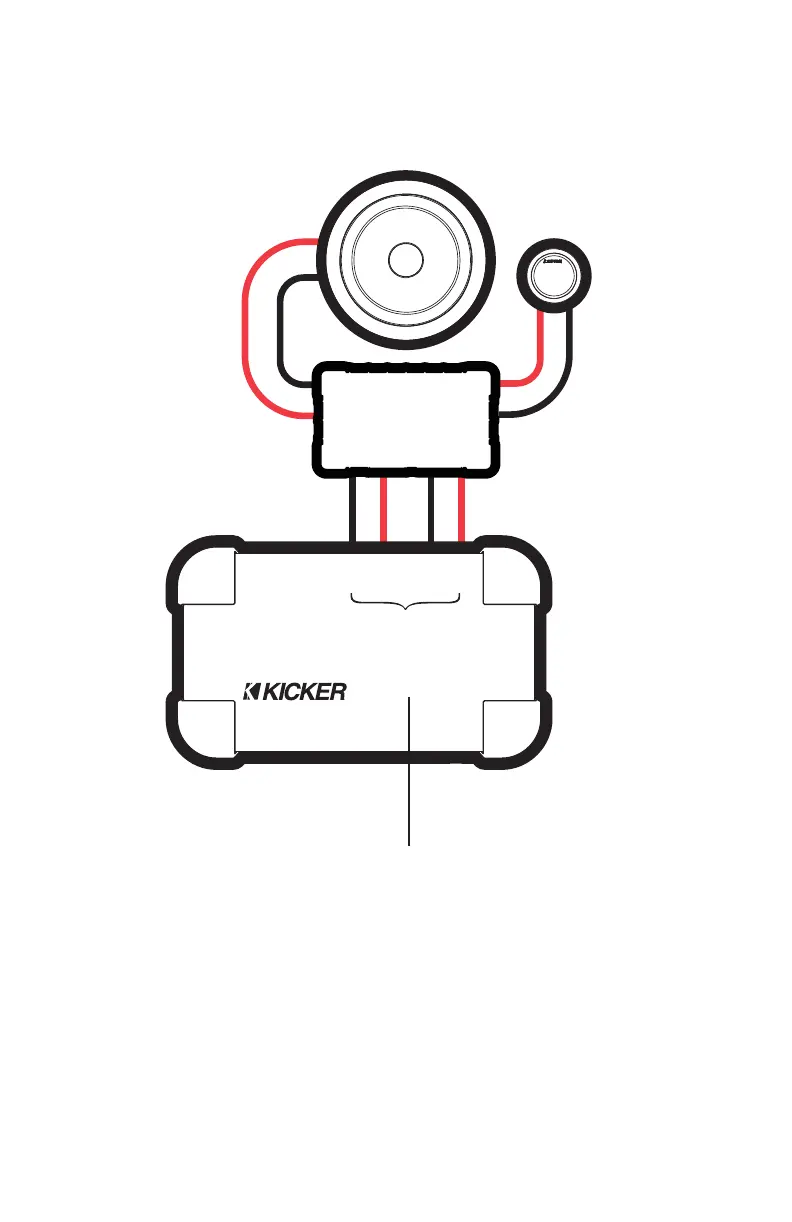

Crossover in bi-amp confi guration Two channels per component set
• At least four amplifi er channels are needed for stereo operation (only two channels are shown)
amplifi er / source unit
(must have at least four channels)
Pro Tip: Looking for the next step in audio performance from your QSS components? Upgrade to a
KICKER IQ or KX 4 or 5-channel amplifi er for each QSS component system you have installed to take
full advantage of the QSS’s bi-amping capabilities. With a dedicated amplifi er channel for each tweeter
and each midrange driver, you’ll have a more effi cient system that will deliver a clearer soundstage and
an increasingly dramatic dynamic response. In other words, your music will be more expansive and
captivating.
