Kicker SSMB Series Technical Manual

Wiring cont.
-+-+-+
Tweeter
+
_
+
_
Crossover
Midrange
SSMB Midbass
Signal Out
Signal In
Other Channel
Input +
Input -
C1
C2
Output +
Output
-
L1
L2
C3
C4
R1
Output +
Output -
Midrange
Midbass

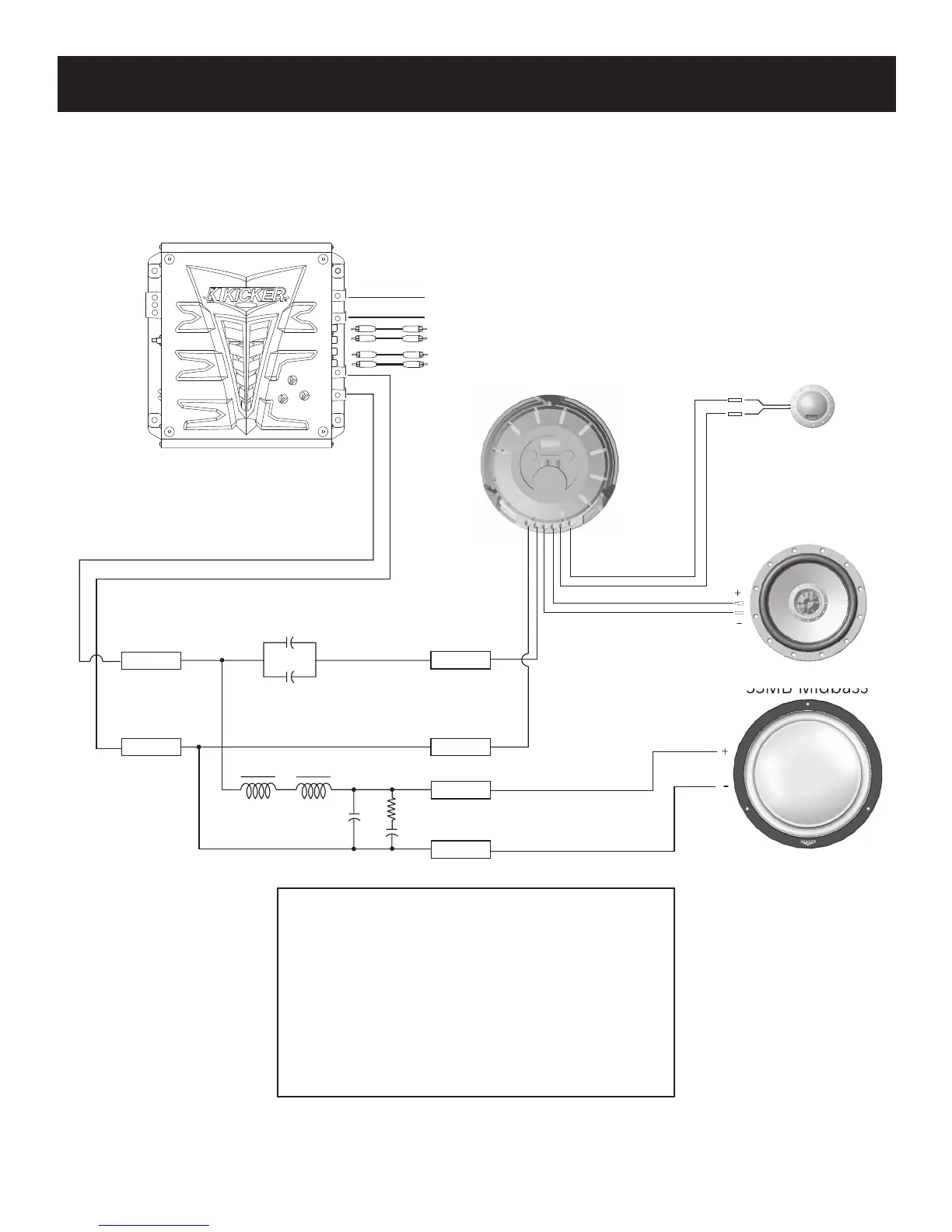

In another basic wiring diagram, the SSMB6 / SSMB8 would be wired into the output of an existing system that
contains an amplifier. The additional power will give you more impact from your midbass drivers. Once again, be
sure to use a passive crossover on the mid bass driver, an example is provided below. The frequencies shown are
only guidelines and not the only ones available for use. Some testing should be done on your system before build-
ing a passive crossover system.
Kicker SSMB Series Midbass Drivers
Recommended Applications / Version 2.0
Page 13
Crossover Component values:
C1: 10.0 µF Mylar, 100Vr
C2: 200.0 µF Electrolytic, 100Vr
L1: 1.9 mH Laminated steel bar core, Dcr<0.20 W
L2: 1.9 mH Laminated steel bar core, Dcr<0.20 W
C3: 200.0 µF Electrolytic, 100Vr
C4: 29.0 µF Electrolytic, 100Vr
R1: 3.0 W 10 W
