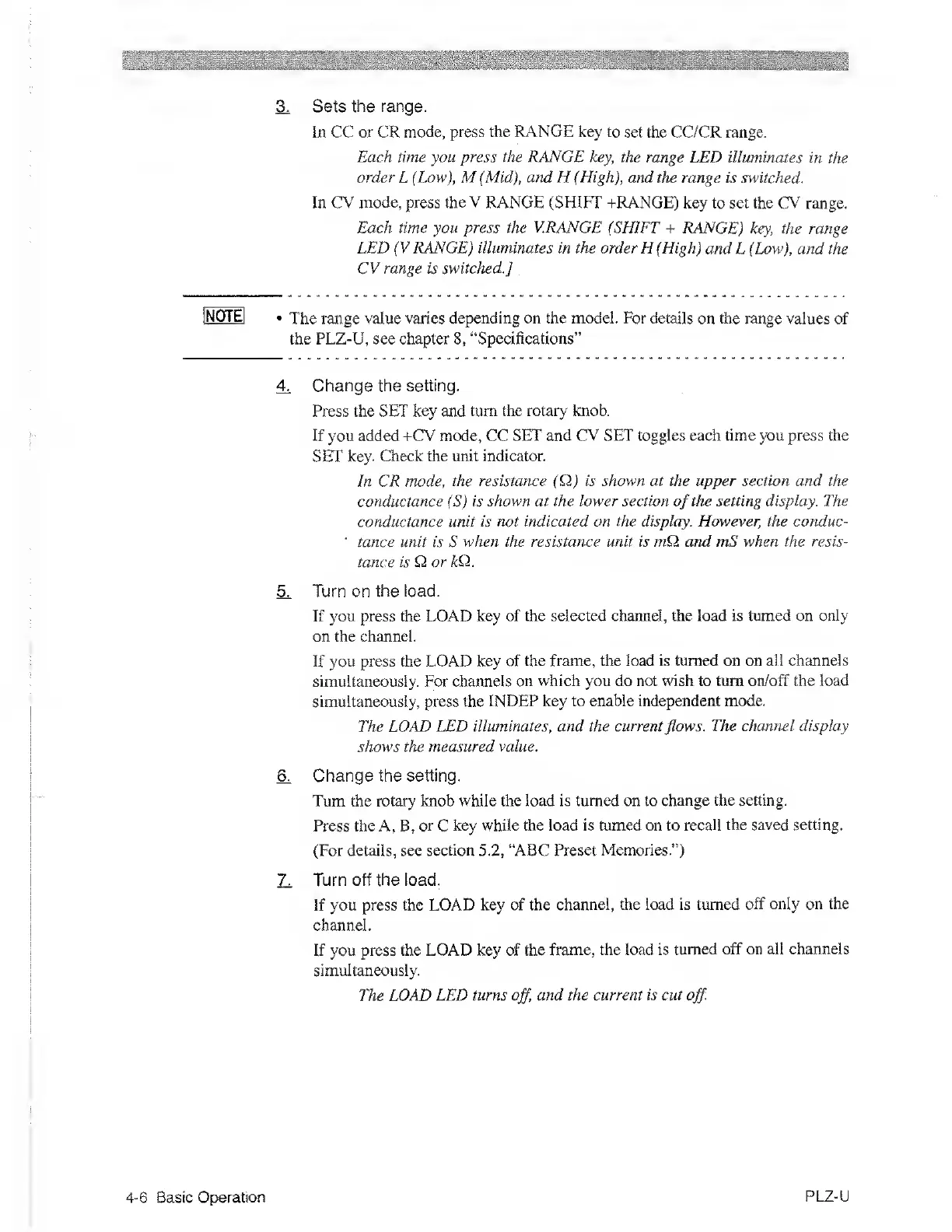

3^
Sets
the range.
In CC or CR
mode, press the RANGE key to
set the CC/CR range.
Each time you press the RANGE key, the range
LED illuminates in
the
order L ( Low), M(Mid), and H(High
),
and the range is switched.
In CV mode, press the V RANGE (SHIFT +RANGE)
key to set
the CV range.
Each
time
you press
the V.RANGE
(SHIFT + RANGE)
key, the range
LED (V RANGE) illuminates in the order H (High)
and L (Low), and the
CV range is switched.]
IMfEl •
The range value
varies depending on the model. For details on the range
values of
the PLZ-U, see chapter
8,
“Specifications”
4^
Change the setting.
Press the SET
key
and
turn the rotary knob.
If you added +CV mode, CC SET
and CV SET toggles each time you press the
SET key.
Check the unit indicator.
In CR mode,
the resistance
(Q
j
is shown at the upper section and the
conductance
(S)
is shown at the lower section
of
the setting display. The
conductance
unit is not indicated on the display. However, the conduc-
'
tance unit is S
when the resistance unit is mQ and mS when the resis-
tance is Q
or kQ.
5^
Turn on
the load.
If you press the LOAD
key of the selected channel, the load is turned on only
on the channel.
If you press the LOAD key of
the frame, the load is turned on on all channels
simultaneously. For channels
on which you do not wish to turn on/off the
load
simultaneously, press the
INDEP key to enable independent mode.
The LOAD
LED illuminates, and the
current
flows.
The channel display
shows the measured value.
^
Change the setting.
Turn the
rotary knob while the load is
turned on
to
change the setting.
Press the A. B,
or
C
key while the load is turned on to recall the
saved setting.
(For
details, see section
5.2,
“ABC
Preset Memories.”)
Zi
Turn off the load.
If you press the LOAD
key of the channel,
the load is turned
off only on the
channel.
If you press the LOAD key of the
frame, the load is
turned off on all channels
simultaneously.
The LOAD
LED turns
off,
and the
current
is cut
off.
4-6
Basic
Operation
PLZ-U
