Wheel Bearings
Item Position Cup Cone Bearing Seal
Disc Brakes
Inner 25520 25580
2-Tonne marine Seal for Standard discs—
NAK 9262
Outer LM67010 LM67048
Note: Bearing Seals
The wheel bearing seals used are a two-piece seal with 85mm O.D. and 50mm I.D.
Suspension Bearings
Item Position Cup Cone Bearing Seal
Independant
Swing arm
Inner 25520 25580
2-Tonne marine Seal for Standard discs—
NAK 9262
Outer LM67010 LM67048
The normal bearings used in the Karavan are 2000kg rated, tapered roller bearings and 85mm dia seals.
IMPORTANT : Take Care of your Bearings
Your bearings are working in the outback under extreme conditions.
Please check regularly (minimum 5000km and no more than 10000km).
Clean and replace bearings with high quality marine grease or similar.
Always inspect for dust infi ltration. The grease will look brown if dust has infi ltrated.
If you are doubtful about the bearings, change them.

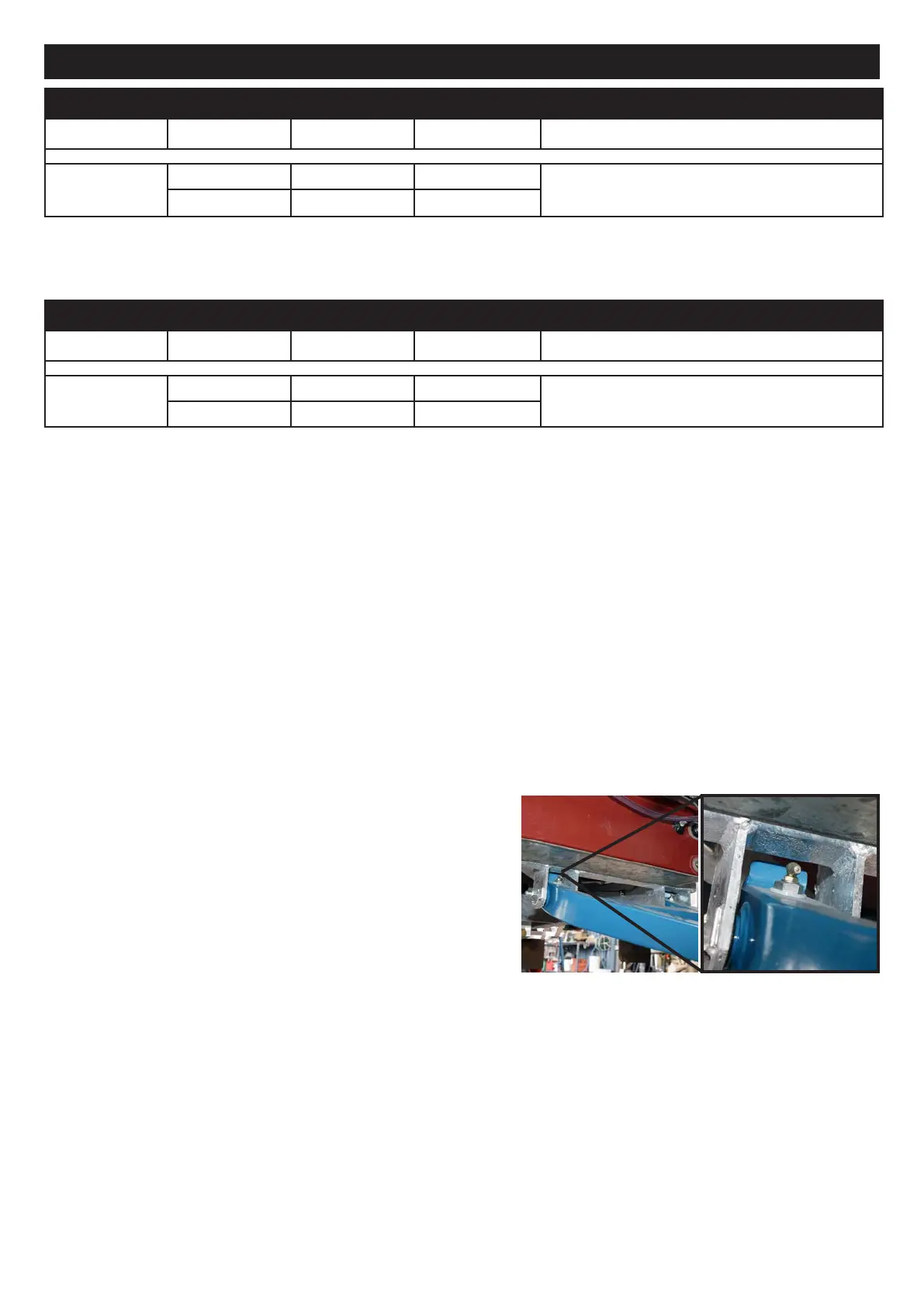

How to Grease your Suspension Bearings
The Trailing Arm Brackets have two greasing points on each arm. Carry a grease gun and lubricate regularly;
this will stop blockages occurring in the grease channels.
When to Grease your Suspension Bearings
Apply grease approximately every 10,000km for normal conditions or 5,000km for severe conditions, or every
six months if not in use.
When to Grease your TREG Hitch
Grease two grease points on front hitch approximately every
2,500 kms, or every six months.
Bearings & Seals
