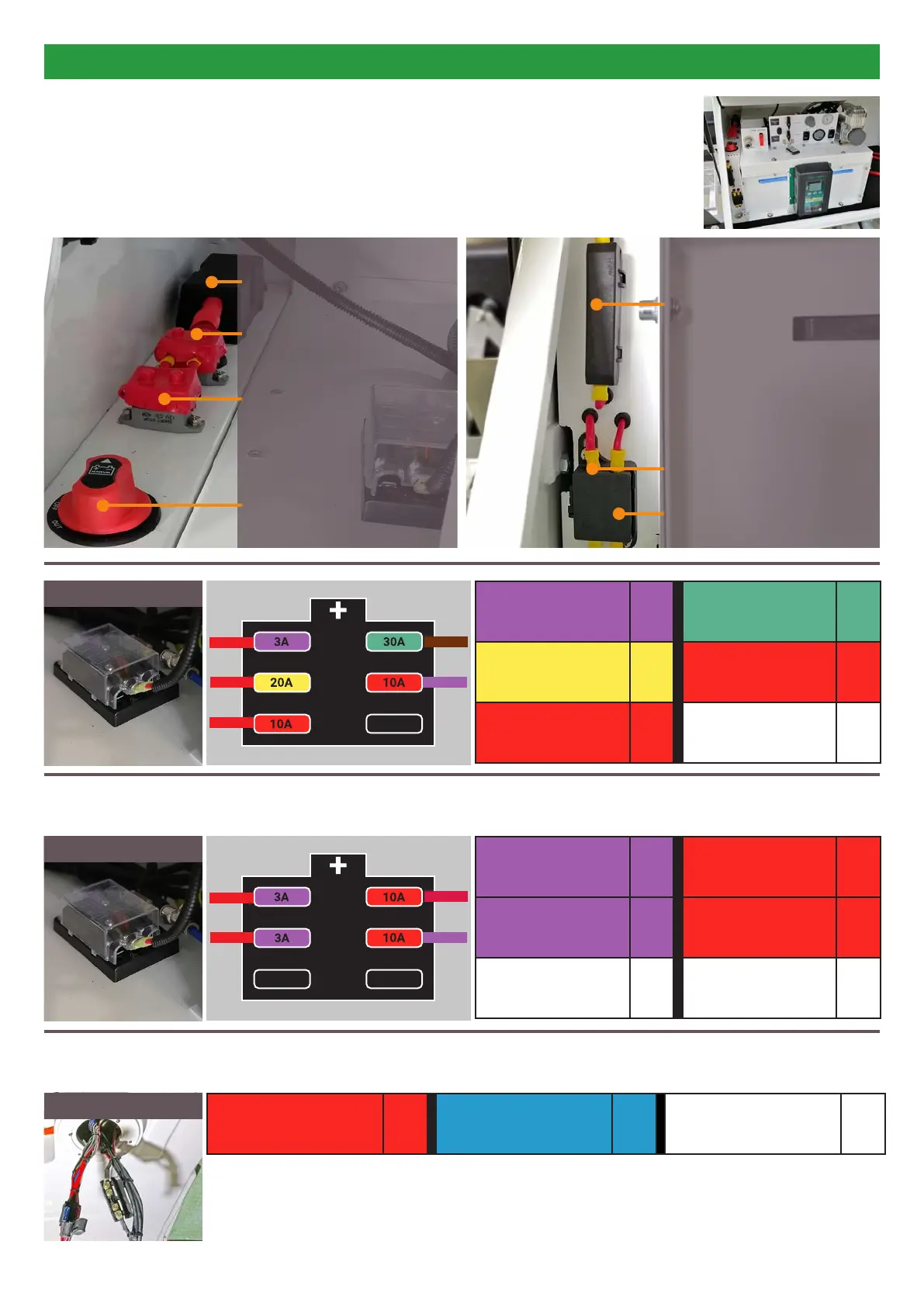

Energy System | Fuses & Circuit Breakers

Front box fuses

Inside the front storage box there fuses on the left hand side.

Kitchen dash fuses

There is a fuse block located behind the dash panel in the kitchen.

300A Master

50A Auto Reset

(Grey Anderson Plug)

40A Auto Reset

(Electronic Brakes)

Master Battery isolator

30A ANL Fuse

(Front Box Fuse Block)

30A Mini ANL (left)

(Red Anderson Plug)

50A Mini ANL (right)

(DC-DC Charger Output)

FRONT BOX LIGHTS

(RED WIRE)

COMPRESSOR

(BROWN WIRE)

30A

TANK HEATER

(RED WIRE)

20A

UNDERBODY LIGHTS

(PURPLE WIRE)

10A

WiTi

(RED WIRE)

10A

FRONT FUSE BLOCK

SMART TOUCH

(RED WIRE)

PUMP 1

(PINK WIRE)

10A

BENCH LIGHT

(RED WIRE)

PUMP 2

(PURPLE WIRE)

10A

DASH FUSE BLOCK

Console fuses

There are fuses located behind the console downlight above the kitchen.

CANOPY LIGHTS 10A HATCH FANS 15A SOLAR 30A

CONSOLE FUSES
