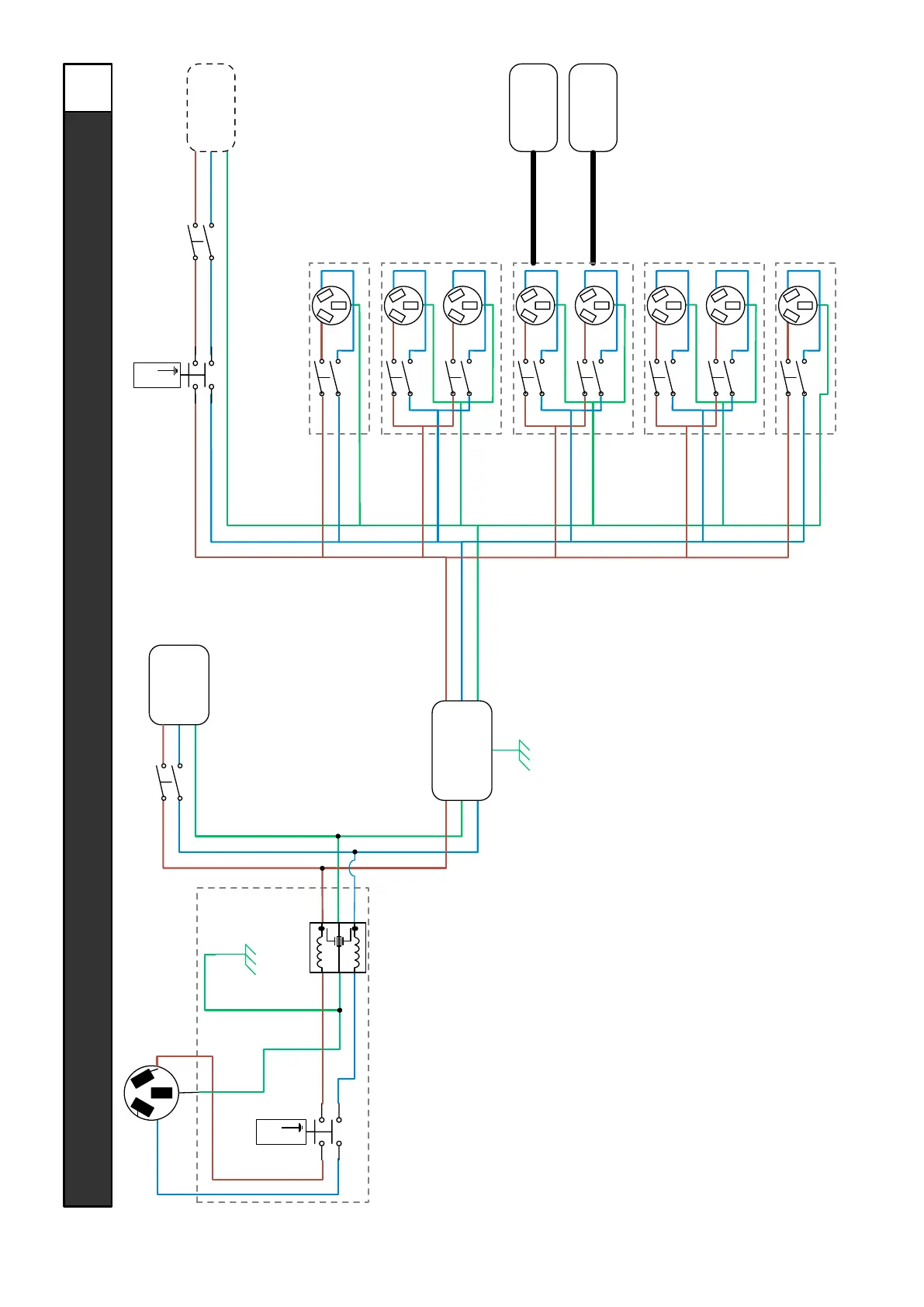

Kimberley KARAVAN 2021 - 240 V Electrical Circuits Overview; Main 240 V Circuit Diagram (1;1)

89
©2021 Kimberley Kampers Manufacturing Pty Ltd
Rear Internal
Dbl Outlet 10A
Clipsal C2025D
External Rear
Outlet 10A 415VF
240 Vac Input
Connector
16A
2.5mm
2
Ground to
Chassis
Battery
Charger
6mm
2
RCBO
16/30
I › I
Distribution box
“AIRCON’
RCBO
10/30
I › I
Air
Conditioner
(If fitted)
Dbl Pole Switch
10A Clipsal 30MD
2021 Kimberley Karavan - 240V Electrical Circuits
Model: Eco-Suite | Date: 31.08.2021
1/1
Dbl Pole Switch
10A Clipsal 30MD
Inverter
(With RCD)
IN OUT
Induction
Cooktop
Cooktop Internal
Dbl Outlet 10A
Clipsal C2025D
Sink Cabinet
Dbl Outlet 10A
Clipsal C2025D
Microwave
Dash Panel
Outlet 10A
Clipsal 12M
Surge
Protector
