HANGZHOU KinCony ELECTRONICS CO.,LTD www.kincony.com
1、Configure IP address

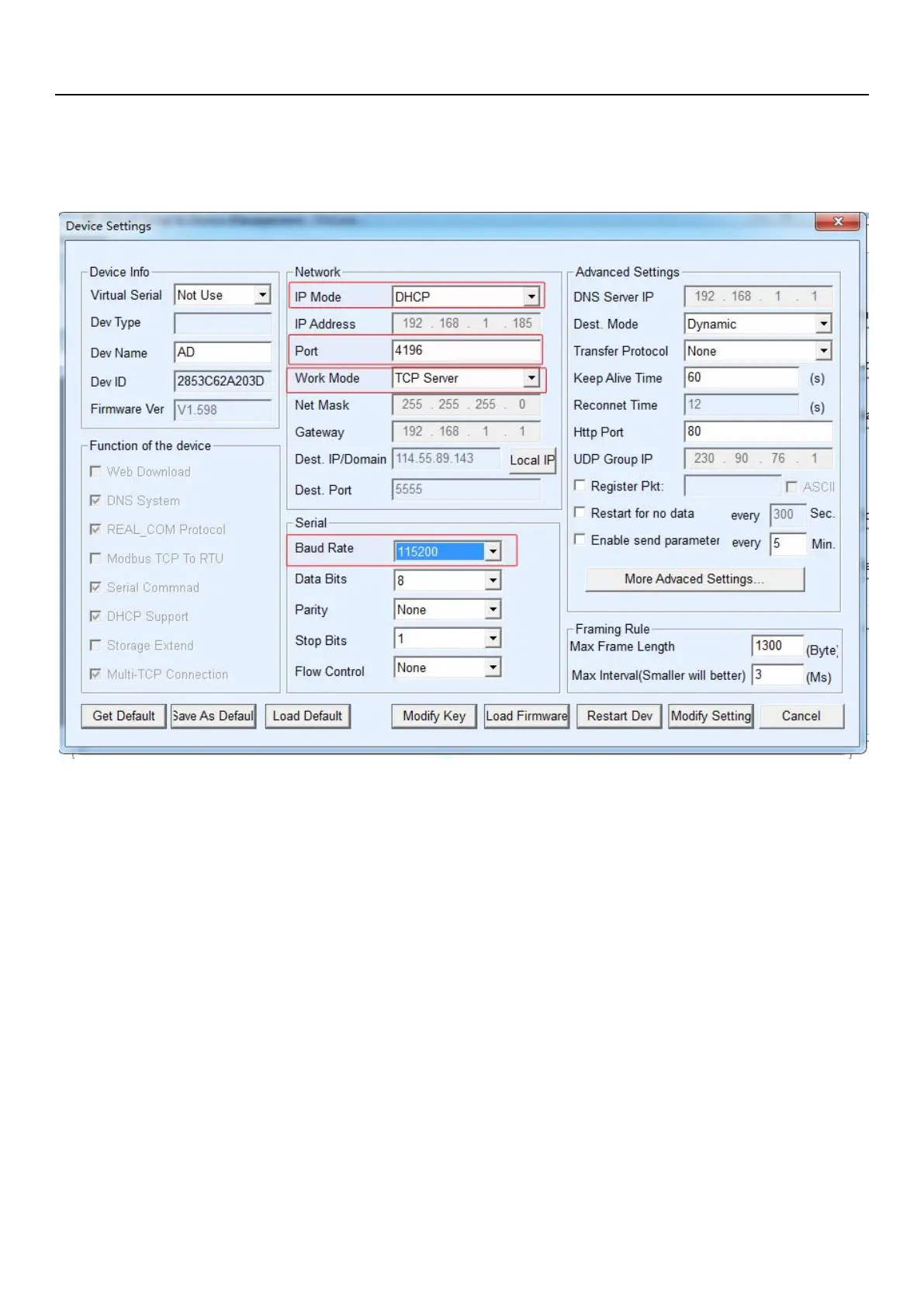

KC868-COL works in LAN mode. The default parameter is shown in the following figure（Pic 1-1）:
Pic 1-1
Default parameters:
IP Mode: DHCP (Can be set to Static)
Port: 4196
Work Mode: TCP server
Baud Rate: 115200
2、Instructions for the use of PC software
Open the demo PC software ,input the IP address and port of KC868-COL (Pic 1-1), and click
“Connect”. Pic 2-1:
