LUBRICATION
AIR SUPPLY AND CONNECTIONS
LUBRICATION AND MAINTENANCE
• Your nailer needs to be lubricated before and after the first time you use it.
• Disconnect the air supply from the nailer before lubricating.
• Turn the nailer so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without
detergent into the air inlet. Never use detergent oil or additives. Operate the nailer briefly after adding
oil.
• Wipe off excessive oil at the exhaust. Excessive oil will damage O-rings of the nailer. If an in-line oiler
is used, manual lubrication through the air inlet is not required on a daily basis.
AIR SUPPLY AND CONNECTIONS
WARNING!

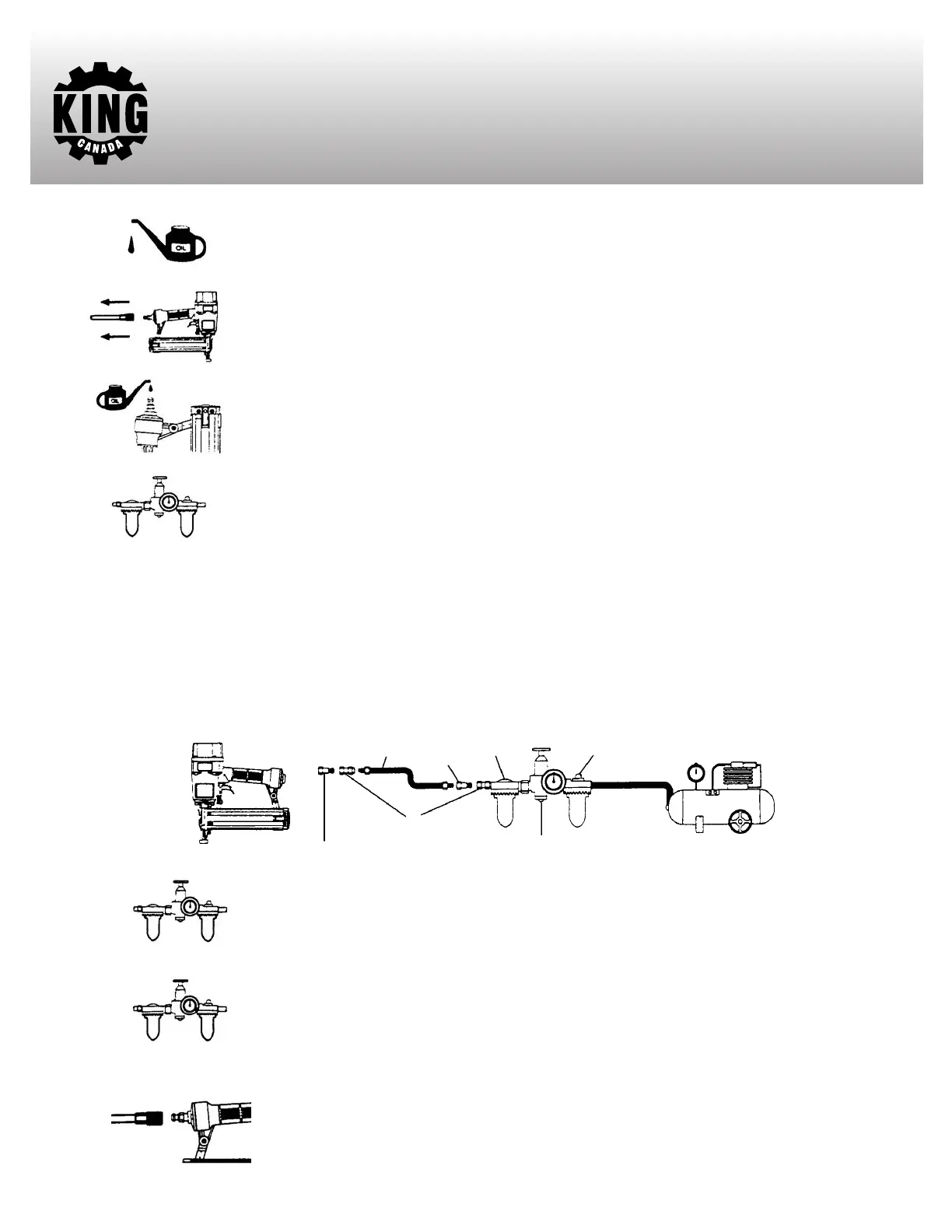

THE FOLLOWING ILLUSTRATION SHOWS THE CORRECT MODE OF CONNECTION TO THE AIR SUPPLY
SYSTEM WHICH WILL INCREASE THE EFFICIENCY AND USEFUL LIFE OF THE NAILER.
• Many air tool users find it convenient to use an oiler to help provide oil circulation through the tool as it
increases the efficiency and useful life of the tool. Check oil level in the oiler daily.
• Many air tool users find it convenient to use a filter to remove moisture and impurities which can rust
or wear internal parts of the tool. A filter also increases the efficiency and useful life of the tool. The
filter must be checked on a daily basis and, if necessary, drained.
• For better performance, install a 3/8” quick connector (1/4” NPT threads) with an inside diameter of
.315” on your tool and a 3/8” quick coupler on the air hose.
Quick couplers
Quick connector
Oiler
Air hose
Quick
connector
Regulator
Filter
Compressor
To Next Page
